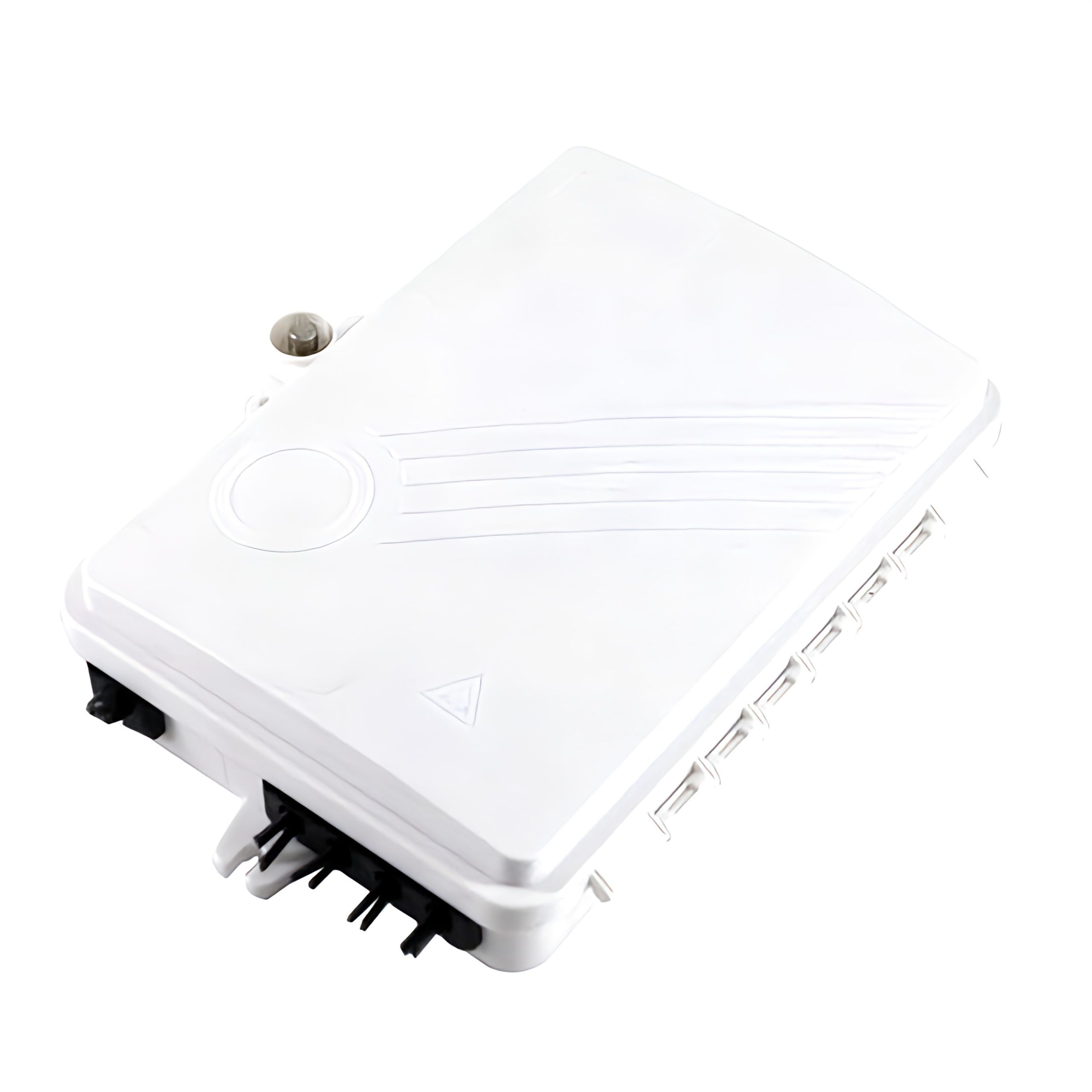

This model is a 8 core fibre optical distribution box that provides a protected termination point for feeder cable to connect with drop cable in FTTH and FTTx communication networks. The plastic box integrates optical fibre splicing, splitting, distribution, storage and cable connection in one unit. It is ideal for corridor and other places where needing FTTH network connection.
The FDU(fiber distribution unit) is capable of housing 8 sc or lc adapters and with IP65 rating and anti-theft lock design. It can accommodate one inlet cable up to 8mm in diameter and 8 drop cable, and the fiber optic box is intended for indoor and outdoor use. The fiber distribution box can hold 8 cores termination, also can install a 1×8 mini plc splitter to distribute fiber cable and split the optical signal.
Specification:
| Size (mm) | 189.5*154*43 |
| Weight (kg) | 0.21 |
| Cable inlet/outlet | 1/8 |
| Max splitting | 1:8 |
| Max splice capacity | 8 core(single) |
| Suitable adapter | SC, LC |
| Environment Temperature | -40℃~+75℃ |
| MOQ | 100 pcs |
Our Services
Fast Delivery
Delivery time is very important to the majority of customers, We try best to find an effective way to coordinate orders to arrive at your destination promptly.
Guaranty
All Fiber Termination Boxes/Enclosures have 2 years ( fiber optic component 1 year ) warranty. We will make a replacement if there are some Non-human damage during a period of warranty time.
Free Sample
If you are interested in our product, we can offer a Free Sample for your quality test.
