The fiber distribution box is designed to realize the connection between the feeder cable and drop cable in the FTTH network systems. It offers the functions of mechanical/fusion splicing, splitting, and distribution, the plastic box is waterproof and suits indoor and outdoor wall mount or pole mount applications. The fiber splitter distribution box is widely used in the FTTH network project for the end termination of residential, business buildings, and villas. It can realize the cable direct connection and splitting connection.

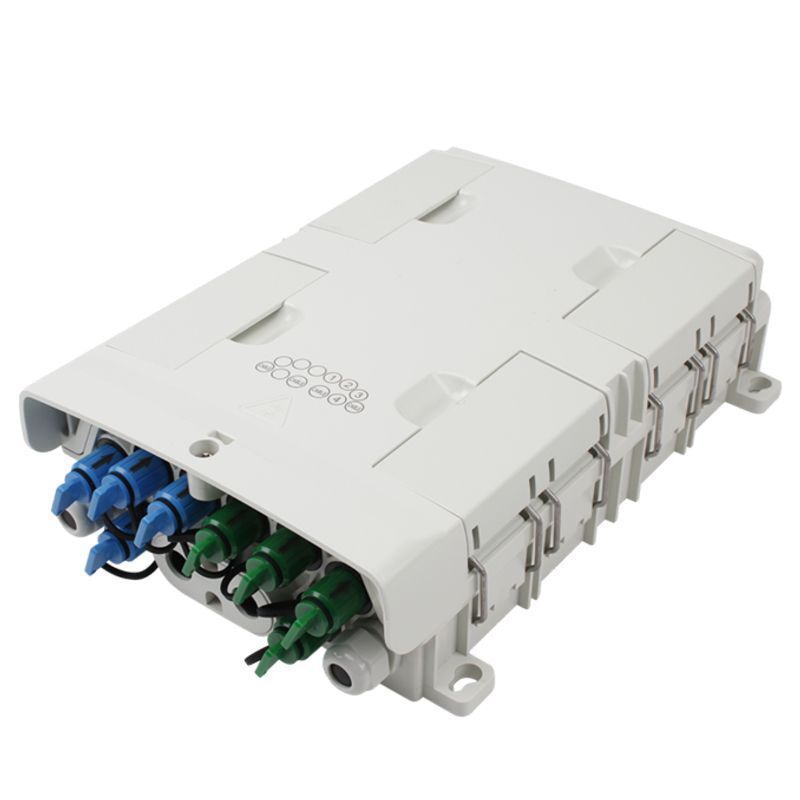

This fiber optic termination box comes with 4 input and 8 output ports, which is ideal for FTTH, FTTB systems. It is made of good engineering plastic which can give solid protection for fiber optic cable and pigtail, The anti-theft lock provides security, the multi-layer structure design is easy for future fiber expansion and maintenance. It accommodates 5 pcs 24 splice trays, also can install 2 pcs 1×4 or 1×8 plc splitter to distribute fiber cable and split the optical signal, the distribution box has installed waterproof sc adapter which is compatible with Huawei waterproof connector.
|2 mid-gland ports, 2 round ports
|Max Fiber splice capacity
|120 Cores(5 splice tray）
|5 days for 100pcs, 10 days for 800pcs
