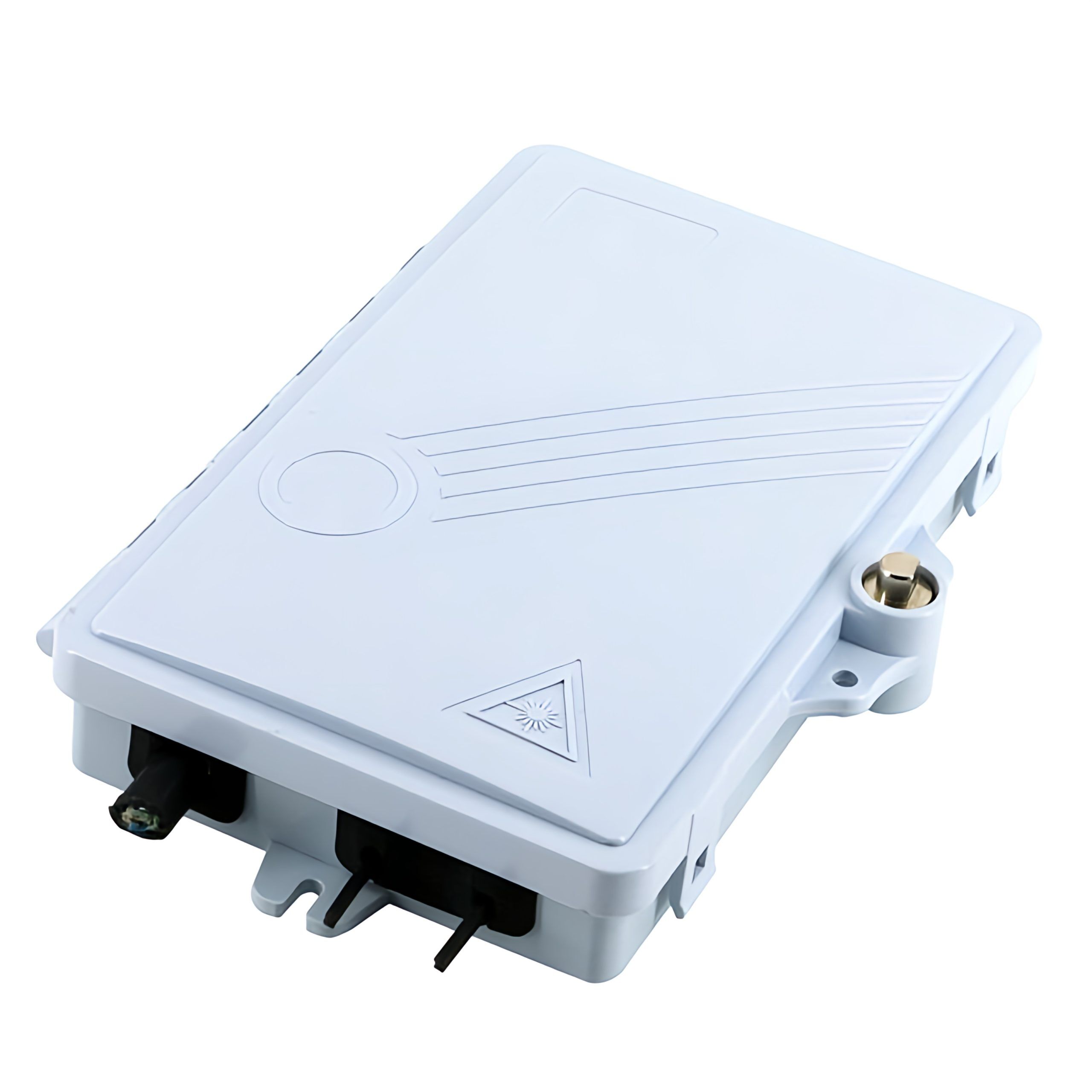

The 2 port fiber termination box is designed to realize the connection between optical cable and pigtail or splitter, It is designed for the optical cable distribution and terminal. The plastic box offers the functions of fiber mechanical/fusion splicing, splitting and distribution, It is waterproof and suits indoor and outdoor wall mounting applications. This fiber optic junction box is widely used in the FTTH network project for the end termination of residential, business buildings, and villas, It realizes the cable direct, branch connection, and the terminal access of the customer.
This fiber termination box comes with 1 input port and 2 output ports, which is ideal for FTTH, FTTB systems. It is made of good engineering plastic that protects the connection of fiber optic cable and pigtail, the lock provides extra security, the distribution panel can be flipped up, the two-layer design saves space and easy for installation and maintenance. The wall mount fiber enclosure can hold up to 4 cores termination, there is a place in the upper splice tray for installing a 1×2 mini plc splitter to distribute fiber optical cable and split the optical signal.
|Max Fiber splice capacity
|2 Cores or 4 cores
|5 days for 100pcs, 10 days for 800pcs
