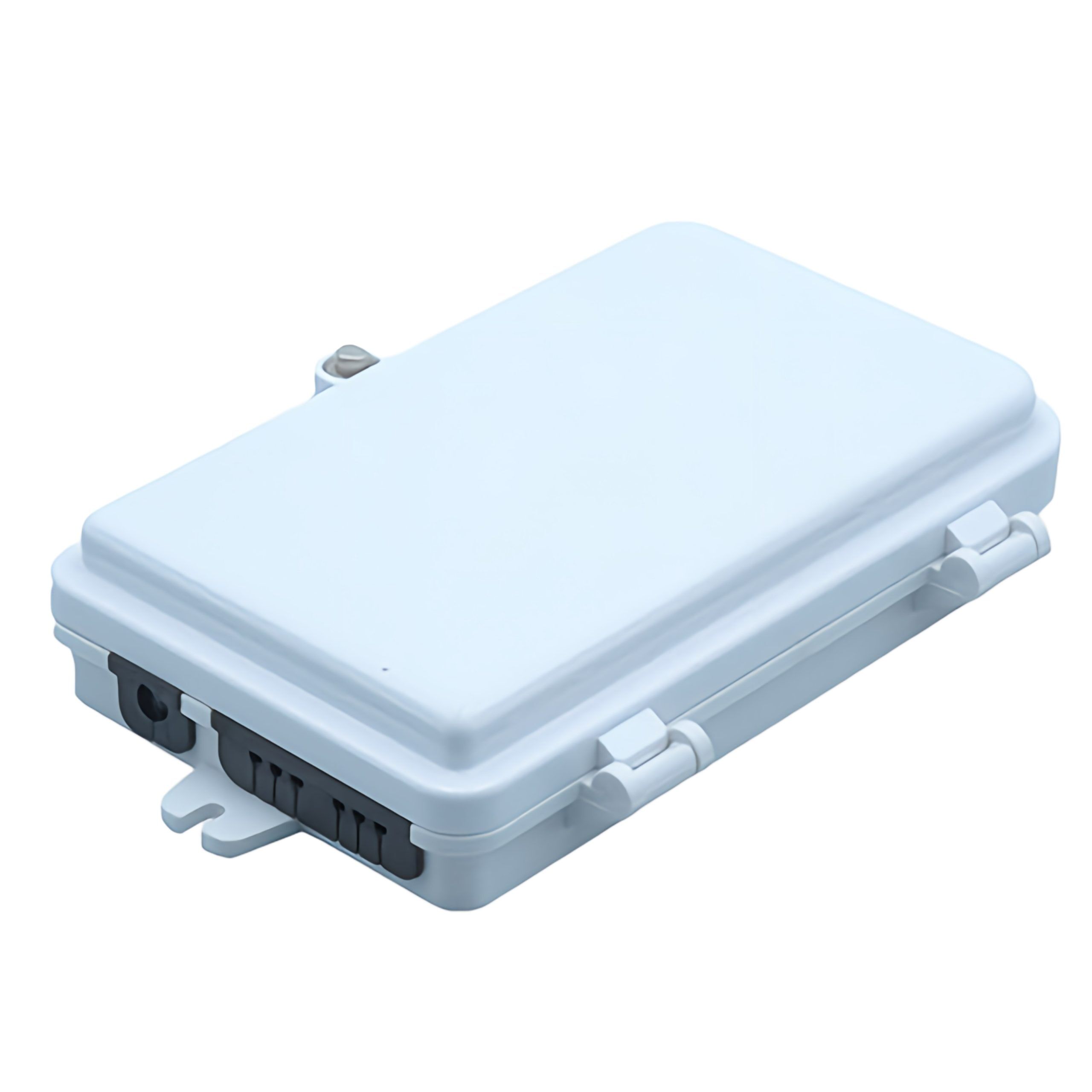

The FTTH fiber optic termination box is designed to realize internal connection of optical fiber cable and pigtail or splitter, which can achieve cable distribution and terminal. The plastic box offers the functions of fiber mechanical/fusion splice, splitting, and distribution. The 6 port fiber termination box is suitable for indoor and outdoor wall mounting applications and widely used in the FTTH network project for the end termination of residential premises, business buildings, and villas.
This fiber optic termination box comes with 1 input port and 6 output ports, which is ideal for FTTH, FTTB systems. The indoor enclosure is made of good engineering plastic that protects the fiber splices and terminations; the screw lock provides extra security; the two-layer design saves space and makes the optical cable installation and maintenance easy, one area for splicing and storage, another separate area for cable distribution. The compact cabinet can hold 6 cores termination, also there is a place for the 1×4 mini plc splitter to split optical signal, the sc simplex adapters can be easily snapped into the designated adapter port.
. High-density ABS plastics with UV/shock resistance
. Small size, light weight, beautiful appearance
. Enough space for cable storage and fiber routing
. Flipped middle tray can manage the fibers effectively
. Cable port is rubber sealed, dust-proof
. Max splitting: 1:4
|Cable diameter (mm)
|Φ7 ～ Φ10
|Max splice capacity
|8 cores (single)
|7 days for 100pcs
