The small wall mounted box is a termination point designed to connect optical fiber cable with pigtail in FTTH indoor application. The plastic module is lightweight, especially suits mini-network terminal distribution, and it provides termination, fusion/mechanical splicing, and storage functions, The internal connection is made through the splice of drop cable or indoor cable and pigtail, It is widely used in the end termination of residential building and villas.

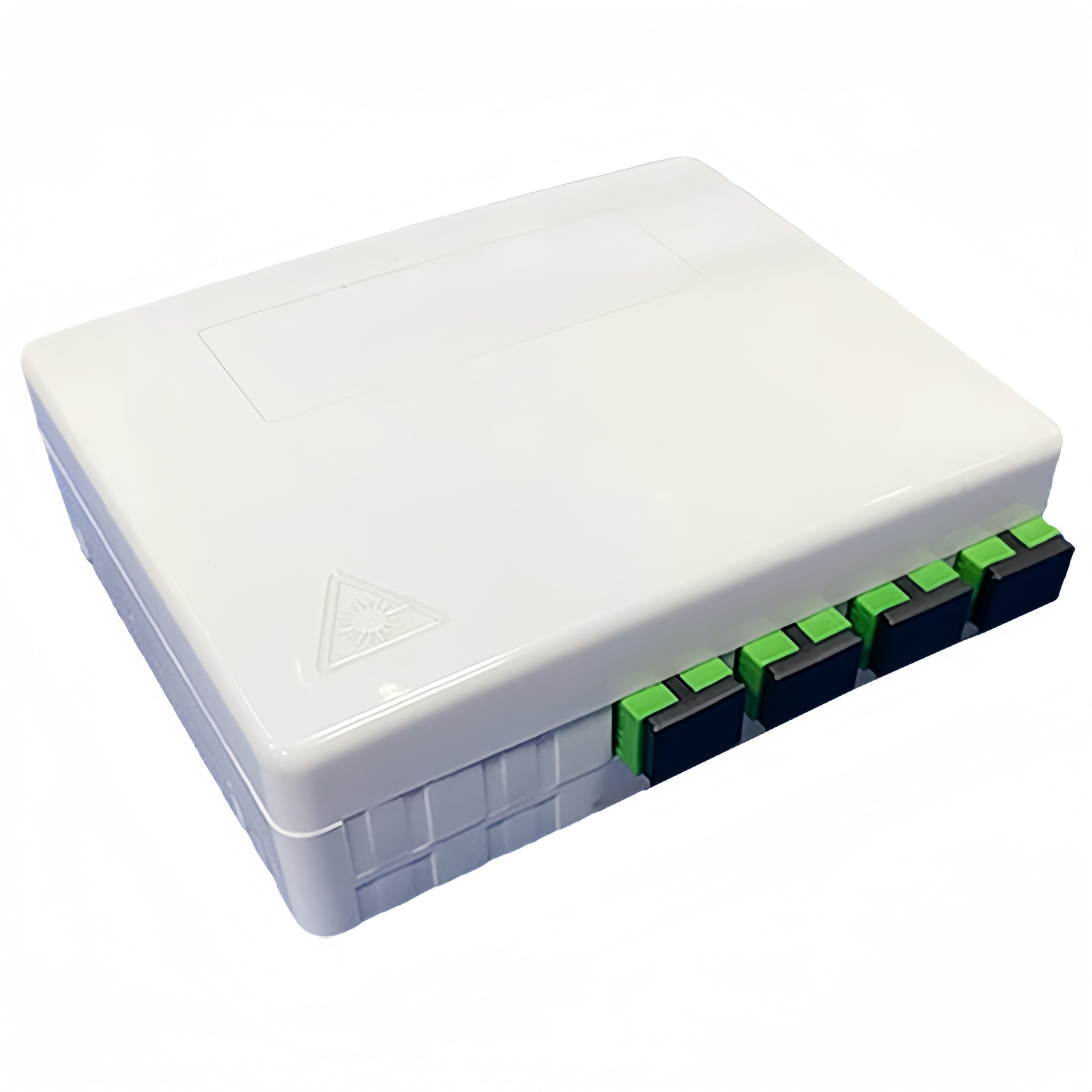

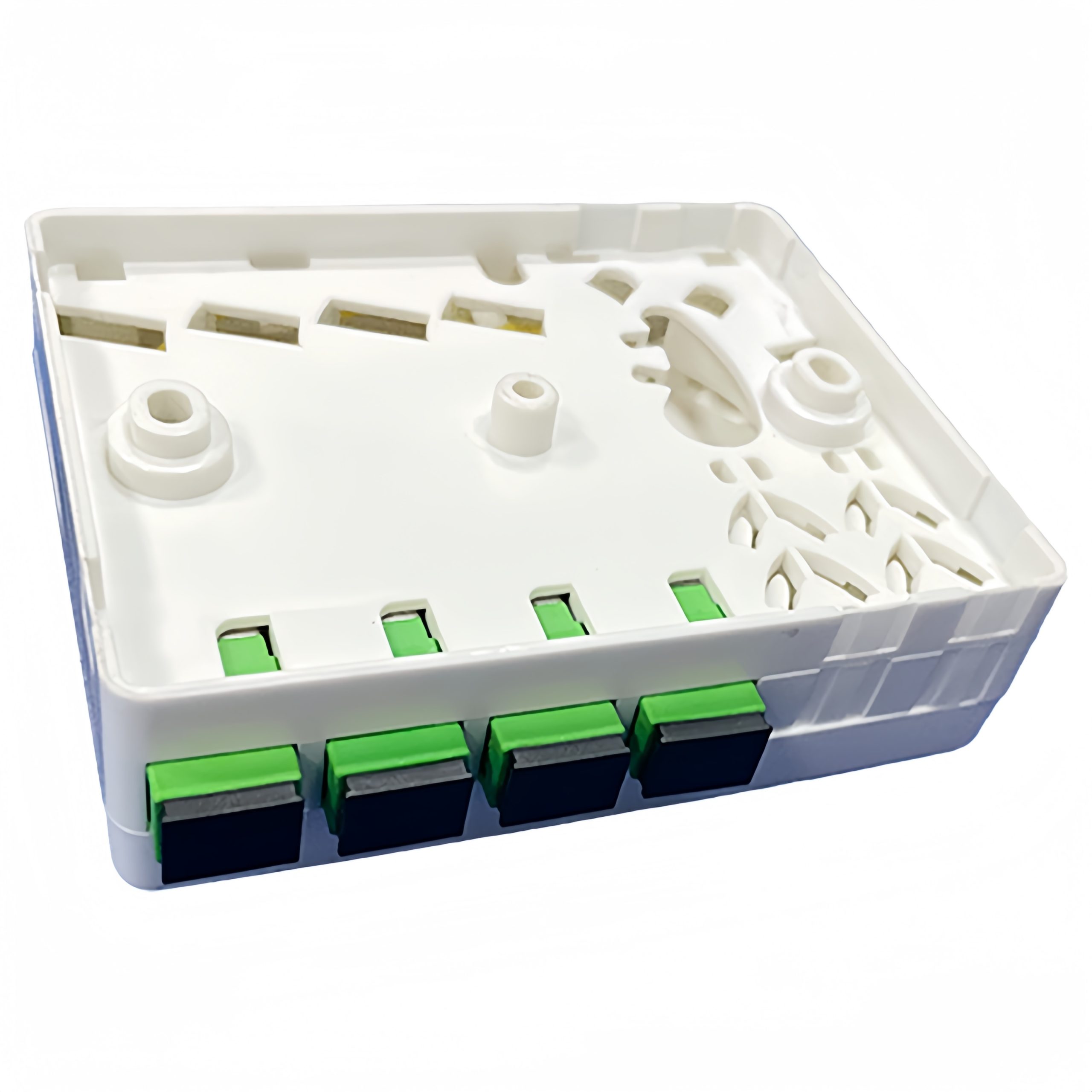

This fiber terminal box (FTB) comes with 4 outlet in the front for SC adapters, usually used to organize and protect fiber splicing and termination in wall mount application. It is of ABS plastic providing mechanical protection for pigtail and optical cable; two independent area for the slack management and reasonable bend radius; there is 10 entry positions at the front, bottom and side for flexible deployment. The front of box is available with SC adapter and supports 4 fiber count terminal.
. Made of ABS plastics or flame-retardant Abs
. Small size taking up minimal wall space
. 4 external adapter interface for easy installation
. Removable cover is convenient for maintenance
. Supports factory terminated assemblies
. Enough space for fusion and wiring
|Cable Diameter (mm)
|Φ3mm or Drop cable(2*3mm)
|Max splice capacity
|4 cores (single)
|7 days for 100pcs, 10 days for 800pcs
