Outdoor 8 Port FTTH Mini Splitter Distribution Box, 4 Cores Splice

$10.90

Wall Mounted &Pole Mounted, 2 in 8 out, Mini Splitter Type, Indoor Outdoor Use

Model: FODB-208B
Material: ABS or ABS+PC
Protection level up to IP65
Can be pre-installed with adapters, splitter and pigtails (sold separately)
Easy to maintain and install
A free Sample is available

FAST DELIVERY, FREE SAMPLES & 2-YEAR WARRANTY

Note that this product has a minimum order quantity (50pcs). Please CONTACT sales for more information.
Prices shown do not include shipping costs.
The sample is provided free of charge. Freight charges will be quoted separately based on the delivery address

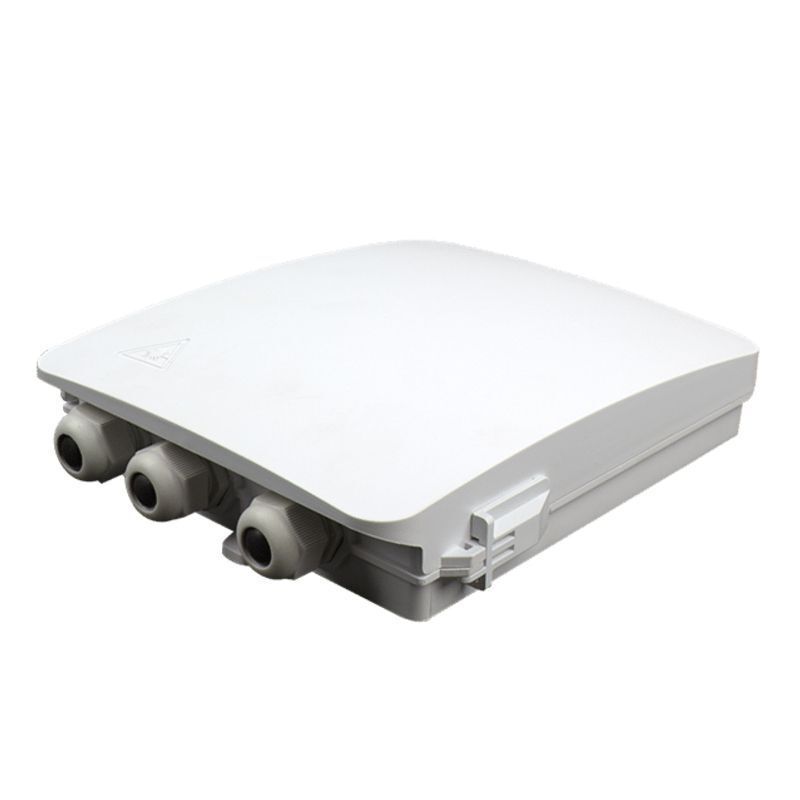

The 8 port outdoor fiber distribution box is a compact NAP used to connect feeder cable from outside plant (OSP) to drop cable in FTTH and FTTB network. It enables quick and easy connections using pre-connectorized drop cables or fusion splicing with pigtails, and also supports terminal connections through pre-terminated mini type splitters or pre-assembled pigtails. The compact ftth NAP box integrates fiber splicing, splitting, termination, distribution and wiring functions. It is widely used in MDU, residential and business buildings, villas for wall mount or pole mount application.

This fiber cable distribution box is provided with 2 input and 8 output ports, which can accommodate up to one 1×8 steel-tube PLC splitter for optical signal distribution and allowing for 4 cores splice in FTTH or FTTB systems. It is of high-quality ABS plastic provides solid protection for splice and termination ; the key lock provides extra security; two-layer design saves space and easy installation, upper layer for splitting and cable distribution, lower layer for splicing and wiring. It is waterproof and suits for both indoor and outdoor environment.

The fiber enclousre supports up to 1×8 PLC splitter for cable distribution and 8 cores termination, delivering a reliable and flexible solution for last-mile fiber network connections.

Features:

. High-density plastics, UV/impact/water resistance

. Reasonable space for cable and pigtail splicing

. Flip design for adapter tray providing easy installation

. Screw type lock gives safety and convenience in operation

. Internal structure guides safe bend radius

fiber optic splice enclosure, passive plc splitter, patch cord, fibre closure, pigtail,launch cabe,ftth terminal box, optical termination box, distribution panel, wall mount fiber junction box，sc/fc/st/lc/e2000 adapter, jumper

Technical parameter:

. Optical fiber radius of curvature:≥40mm

. Splice tray additional loss：≤0.01dB

. Temperature Range: – 40°C ~ + 60°C

. Compressive strength: ＞500N

Specifications:

Size(mm)	20521562
Weight(kg)	0.75
Cable inlet/outlet	2/8
Cable dia (mm)	Φ6~Φ12
Max splice capacity	4 cores (single)
Max splitting	1:4 (2pcs) or 1:8 (1pc)
Suitable adapter	SC
Lead time	7 days for 100pcs, 20 days for 300pcs
MOQ	100 pcs
