12 Port Fiber Patch Panel With 12 Adapter Ports, 12 Splices
$19.70
Drawer Type, Rack Mountable, Indoor Application, 1U 12 Ports
- Model: GPZJJ-CLA-SC12
- Material: Premium cold rolled steel
- 4 cable entry ports with grommets in the rear of the unit
- Adapter plate and splice tray can change upon request
- Free sample is available
- No adapters included. Sold seperately
FAST DELIVERY, FREE SAMPLES & 2-YEAR WARRANTY
- Note that this product has a minimum order quantity (50pcs). Please CONTACT sales for more information.
- Prices shown do not include shipping costs.
- The sample is provided free of charge. Freight charges will be quoted separately based on the delivery address

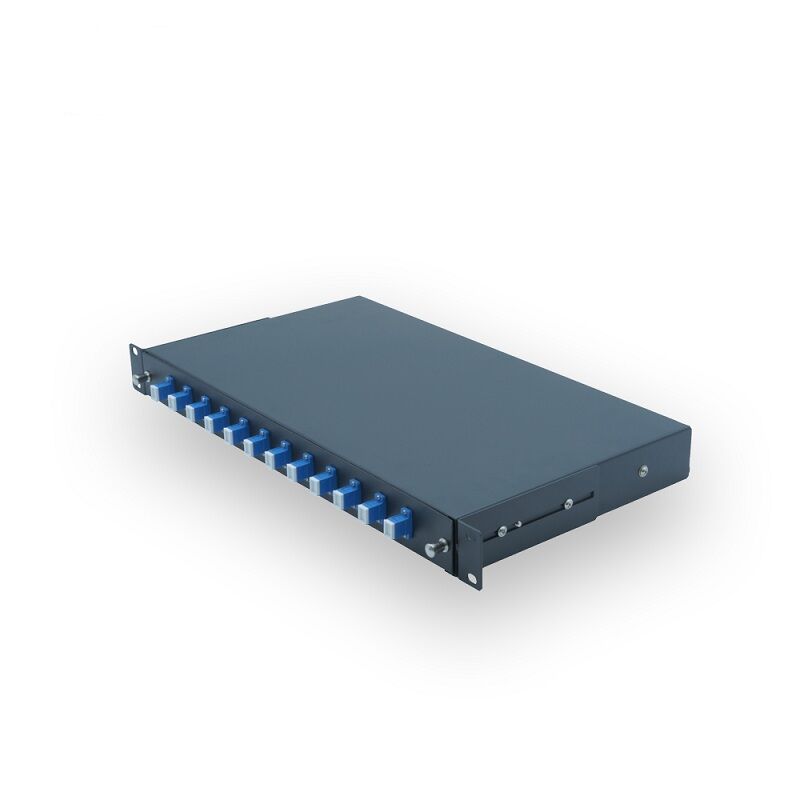

The 12 port sliding fiber patch panel is suitable to configure SC, LC adapter on the front, and also is available to pre-loaded with 12 strand singlemode or multimode pigtail cable as customer need. The steel unit is part of fiber optic connectivity solutions is that designed for realizing and the connection between external optical cables and pigtail and; inside includes a 24F splice trays and cable routing spool for splicing and surplus optical fibers storage. The fiber distribution panel provides integrated splice trays and adapter plates for fiber termination and cable management, it is applicable in the branch and terminal connection of optical cable and usually installed on the 19″ or 23″ rack of the server cabinet.
This 12 port rack-mounted fiber patch panel is available to be pre-terminated various adapter (like sc and lc in simplex or duplex) and 12 or 24 strand pigtail with single-mode or multimode optical cable. It is of sliding structure, so the splice tray can be easily pulled out for simple fiber installation and easy maintenance. The cable enters from the rear of the rack-mounted panel, while the fiber optic patch cords are routed out from the front through the adapter panel.
Features:
. The body is made of high quality cold-rolled steel, and electrostatic spraying in the surface
. Configure with cable fixed device, splice tray and thread ring
. Overlying splice tray is convenient for future capacity expansion
. Independent insulation grounding device provides the safety.
. Internal splice tray is made of high strength engineering plastics.
. Inlets and outlets are sealed with oil resistant nitrile rubber
Technical index:
optical fiber winding radius: ≥40mm
extra loss of fiber tray: none
fiber length left in tray:≥1.6m
working temperature: – 400C ~ + 600C
lateral pressure-resistance: 500N
shock-resistance：750N
Specification:
| Size(mm) | 482*240*44.5 (1U) |
| Suitable adapters | SC, ST, FC, LC |
| Cable inlet/outlet | 4/12 |
| Connector capacity | 12 or 24 |
| Max fiber splice capacity | 12 (single core) or 24 (dual core) |
| Application | FTTH, LAN,WAN,CATV etc |
| Lead Time | 7 days for 100pcs, 20 days for 300pcs |
| MOQ | 50 pcs |
