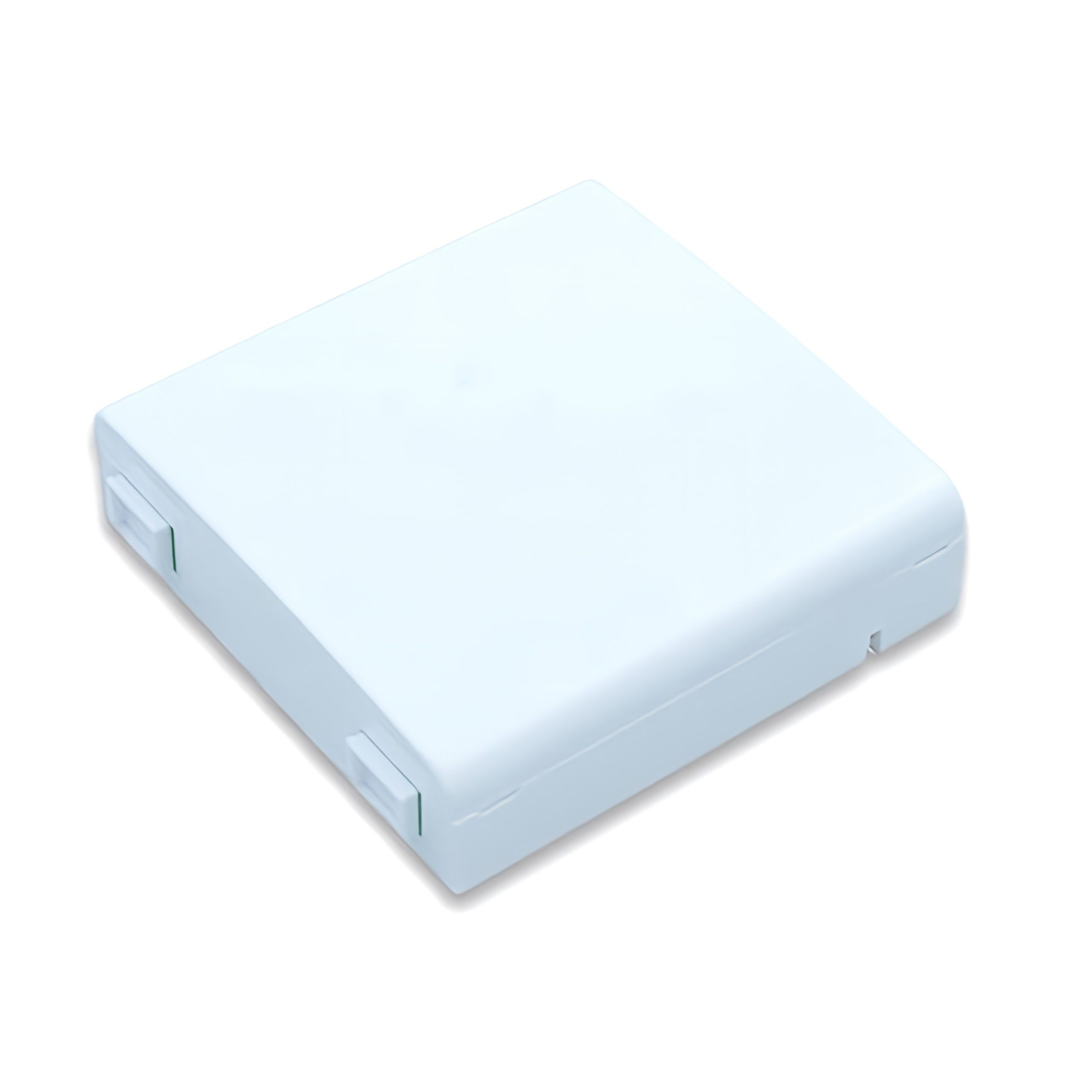

This small A86 panel box is 2 port wall plate that can connect 2 optical fiber to the passive-optical interface in the living area or desktop. It is designed to connect drop cable and pigtail in home or office, then fiber jumper would connect to the optical socket to ONT. The module supports mechanical/fusion splicing, termination and storage functions for optical fiber for FTTH,FTTD applications, usually mounted in the wall or home standard electrical junction box.
The wall plate comes with 2 outlet ports providing fiber socket to connect drop cable to optical device, supporting up to 2 cores splice. It is of ABS plastic providing protection for terminations and splices, internal routing allows for the slack management and reasonable bend radius, 7 cable access inlets from every directions which gives a high flexibility of internet installation, it enables the fiber connection to home internet box and support 2 cores terminal.
. Made of solid ABS plastic or flame retardant
. Modern design with small size and lightweight
. 2 adapter holder for easy installation
. Equipped with dust-proof cap for unused port
. Small size taking up minimal wall space
|Cable Dia (mm)
|Φ3mm or 2*3mm
|Max splice capacity
|2 cores (single)
|7 days for 100pcs, 10 days for 800pcs
