The indoor enclosure is a termination box designed to connect optical fiber cable with pigtail in FTTH. The wall mounted module is small and lightweight, especially suits mini-network terminal distribution, and it supports termination, fusion splicing, mechanical splicing, and storage. It can realize the connection between drop cable with passive optical devices, and widely used in the end termination of residential building and villas.

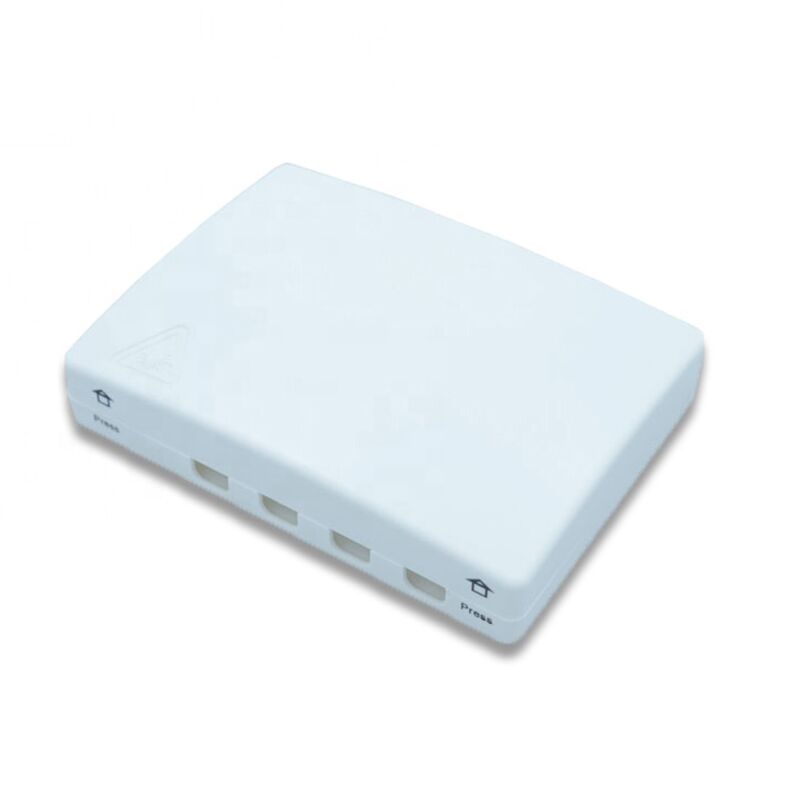

This 4 fiber terminal box comes with 4 outlet ports and 2 cable access points, which usually used to organize and protect fiber splicing and termination for FTTH network. It is of ABS plastic providing mechanical protection for pigtail and drop cable; dual-layer design for the slack management and reasonable bend radius; internal adapter slot for easy installation and supports 4 fiber count terminal.
Features:
. Made of high quality engineer plasticsÂ
. Small size taking up minimal wall space
. Internal adapter holder for easy installation
. Flipped tray increases the space for fiber managementÂ
. Enough space for fusion and wiring
Specification:
Size (mm) | 150*110*33 |
Weight(kg) | 0.15 |
Cable inlet/outlet | 2/4 |
Cable Diameter (mm) | Φ3mm or 2*3mm |
Max splice capacity | 4 cores (single) |
Suitable adapter | SC, LC |
Lead time | Â 5 days for 100pcs, 10 days for 800pcs |
MOQ | 100 pcs |
