2 in 5 out 24 Port FTTH Distribution Box For Blockless Splitter, 24 Splices

The 24 port fiber access terminal (FAT) with 5 cable outlet ports is designed for FTTH last-mile connectivity, enabling reliable transition between feeder cables and subscriber drop cables. It provides a compact solution for fiber splicing, termination, and distribution within a single enclosure, suitable for indoor and outdoor network deployments.

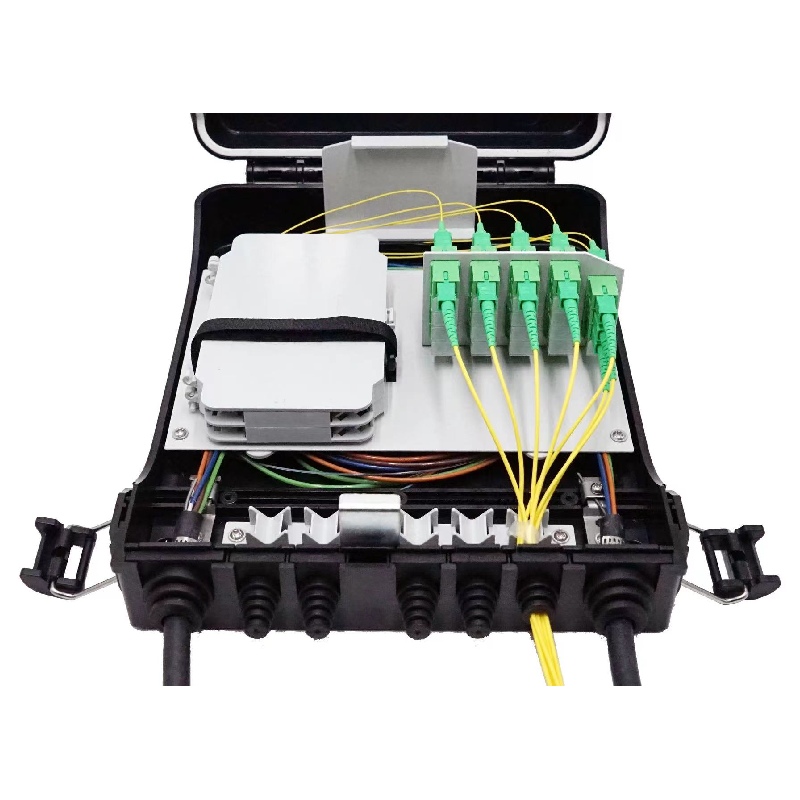

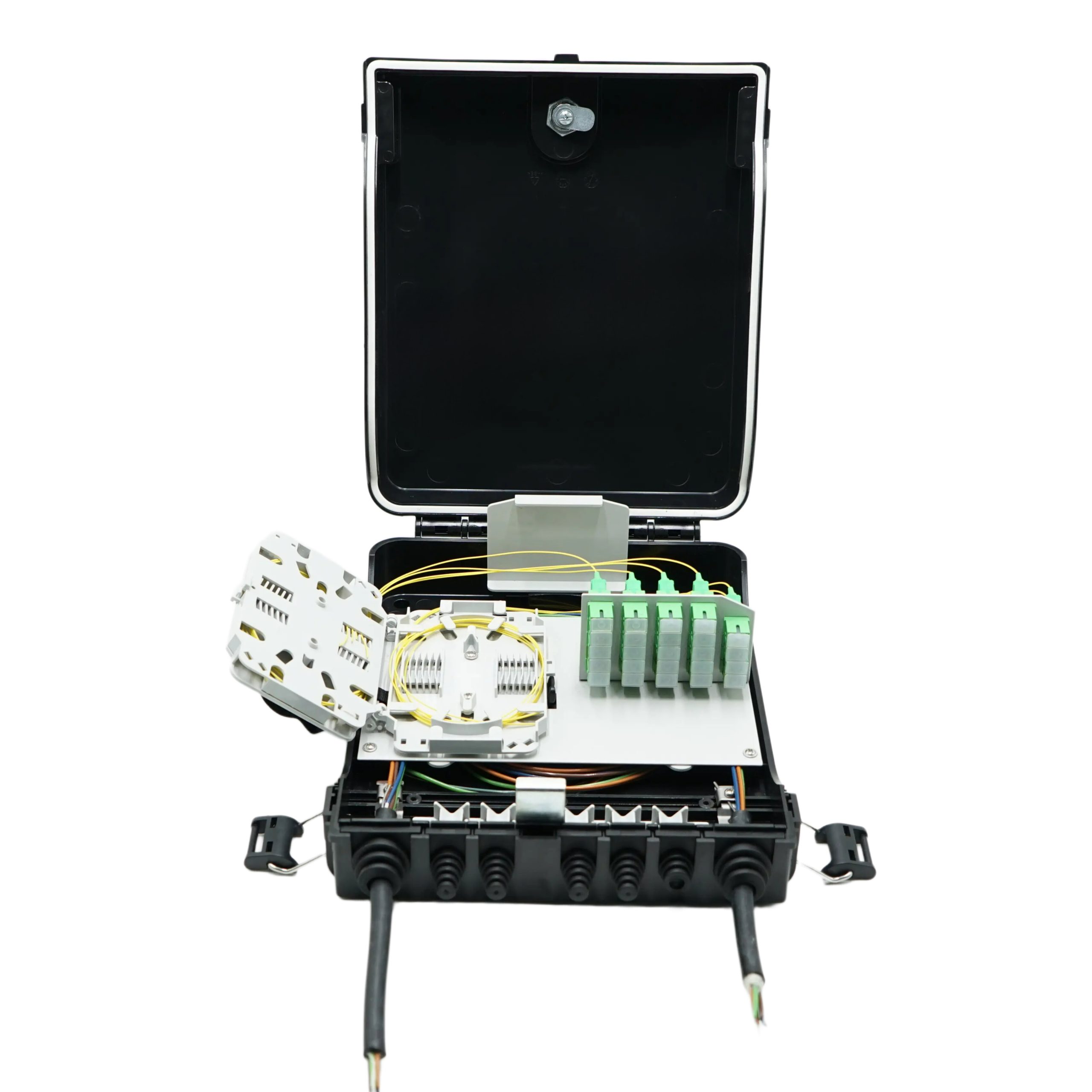

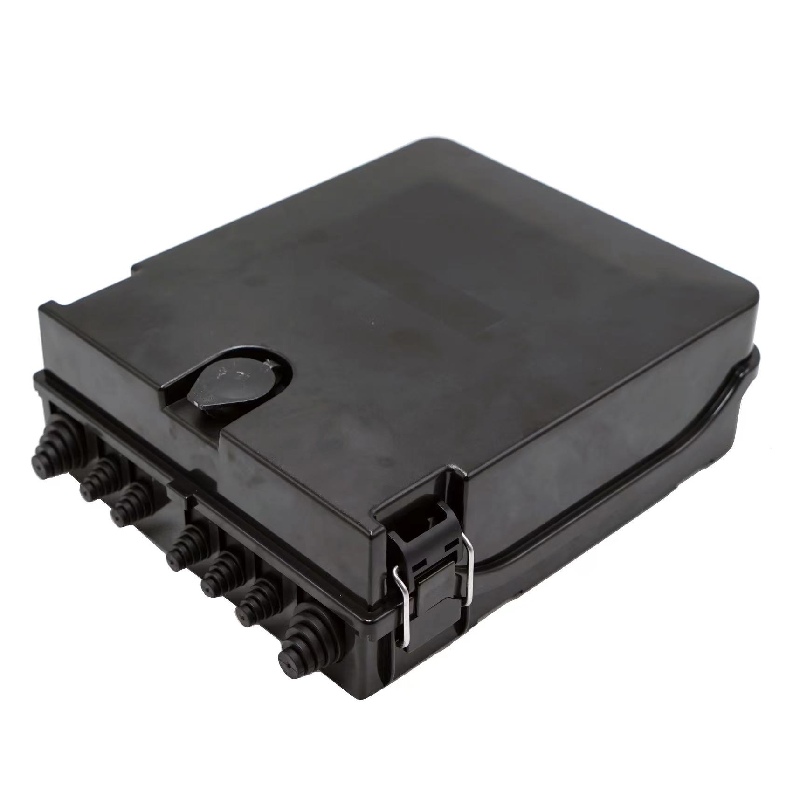

The 24 port ftth distribution box supports 2 cable inlet ports and 5 cable outlet ports, and is compatible with 24 SC adapters and one 1×16 steel-tube PLC splitter. It offers a splicing capacity of up to 24 fibers, allowing efficient fiber management and scalable network expansion. Constructed from high-strength engineering plastic, the enclosure ensures durability and long-term protection of fiber connections. It features a dual-layer internal structure for simplified installation and maintenance, and the anti-theft lock enhances security,.

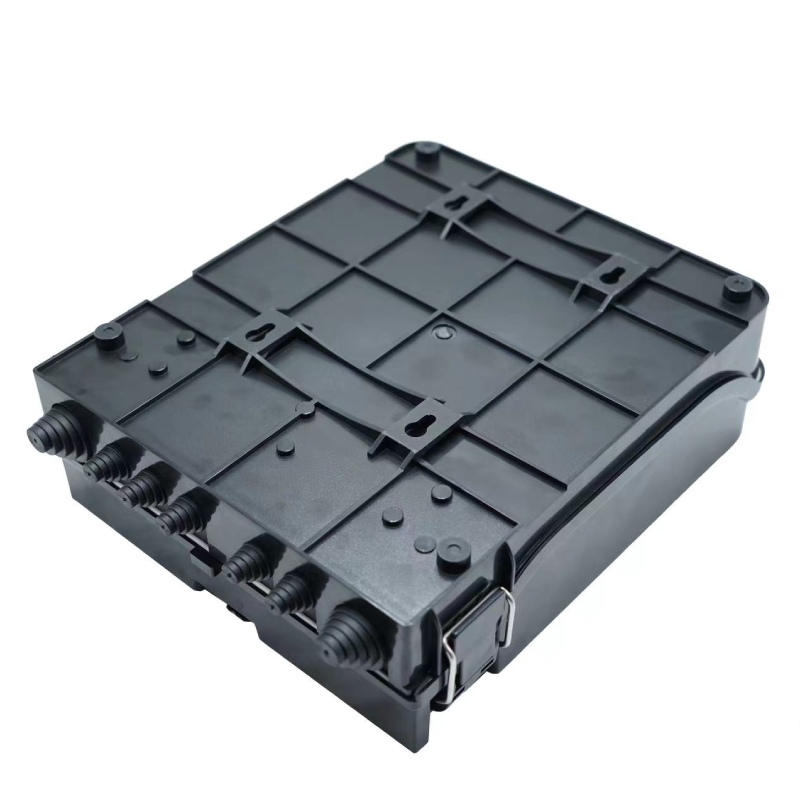

With an IP65-rated weatherproof design, the unit is suitable for wall-mount and pole-mount installations, making it ideal for FTTH networks in residential buildings, MDUs, commercial facilities, and villa deployments.

Features:

. High-quality plastics with UV and good impact resistance

. Reversible splice tray providing easy operation

. Enough space for cable storage and fiber wiring

. The rubbers at the cable inlet ports adopt a tower structure, the user can match the ports according to the size of the optical cable

. The cover has a suspension fixing, which will not affect the construction due to falling

Specification:

Size (mm)	250*320*98
Weight(kg)	1.6
Cable inlet/outlet	2/5
Cable diameter (mm)	Φ7 – Φ24
Max splice capacity	24 cores
Adapter No	24 SC simplex (earless)
Splice tray No	2pcs
Max splitting	1:8 (2pcs)
MOQ	100 pcs
