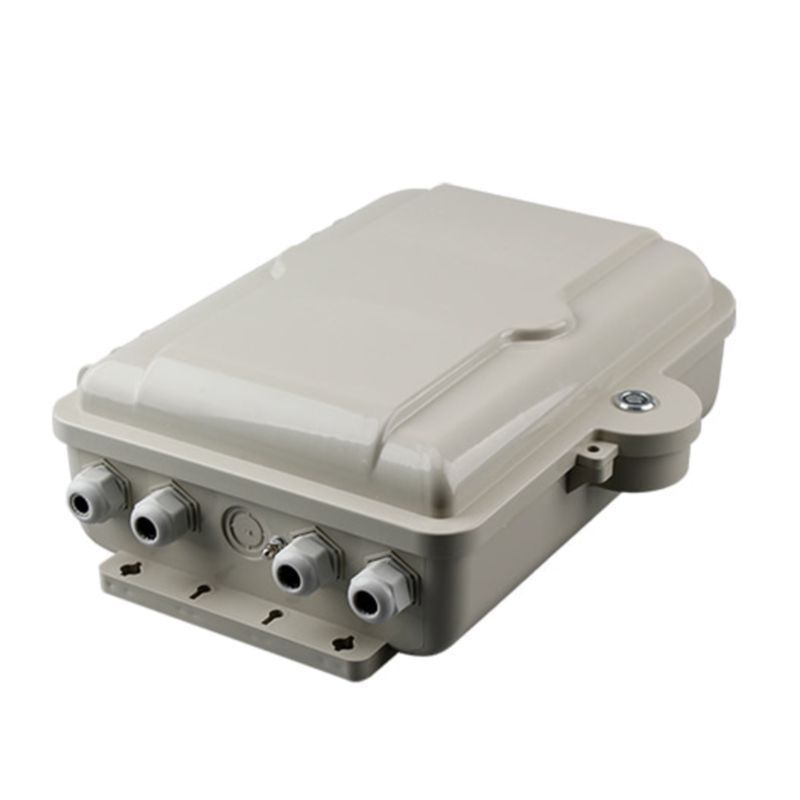

This fiber optic distribution box is designed for fiber optic cable distribution and terminal, it can realize the connection between feeder cable and drop cable but also the junction of indoor cable and optical communication equipment in the FTTH network. It offers the functions of fiber splicing, splitting, and distribution, and suits indoor and outdoor applications. The fiber terminal box is available for wall mount and pole mount installation, it widely used in the FTTH network project for the end termination of residential, business buildings and villas, etc.
The 2 in 2 out fiber optic distribution box can realize the cable direct connection by leading out the drop cable through the adapter and achieve the branch connection by installing insertion type splitter to transmit optical signals, also gain network terminal access for users by connecting the ONU, And ideal for FTTH, FTTB system. It is of high-quality ABS plastic that protects fiber optic cable and pigtail; anti-theft lock gives the junction box extra security, the two-layers design saves space and makes the optical cable installation and maintenance easy. The enclosure can hold 16 cores termination and joint, also there is a slot for install 1×16 or 2 pcs 1×8 cassette type plc splitter to distribute fiber optic cable and realize the branch connection.
|2 Ports and 1 uncut port
|Max Fiber capacity
|5 days for 100pcs, 10 days for 800pcs
