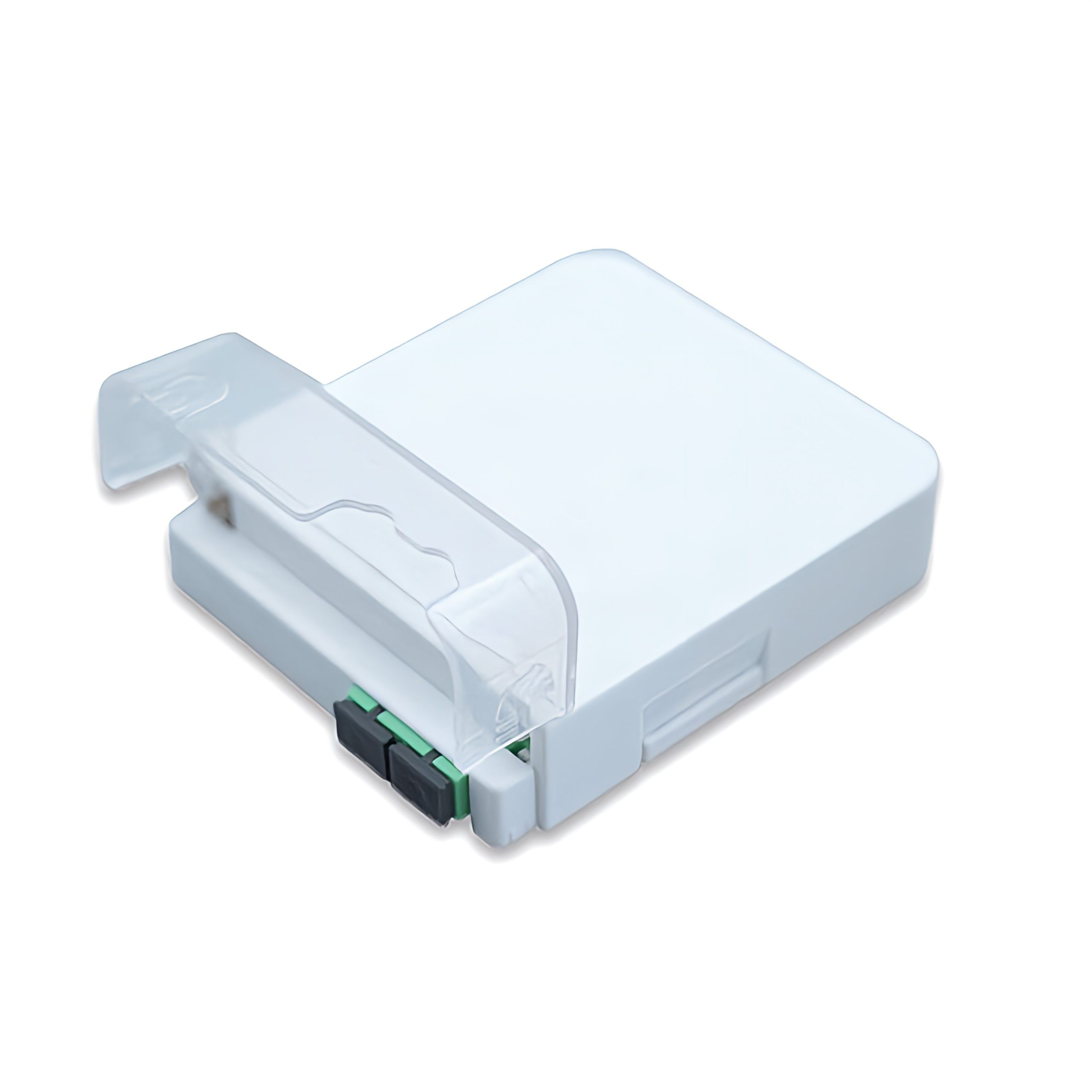

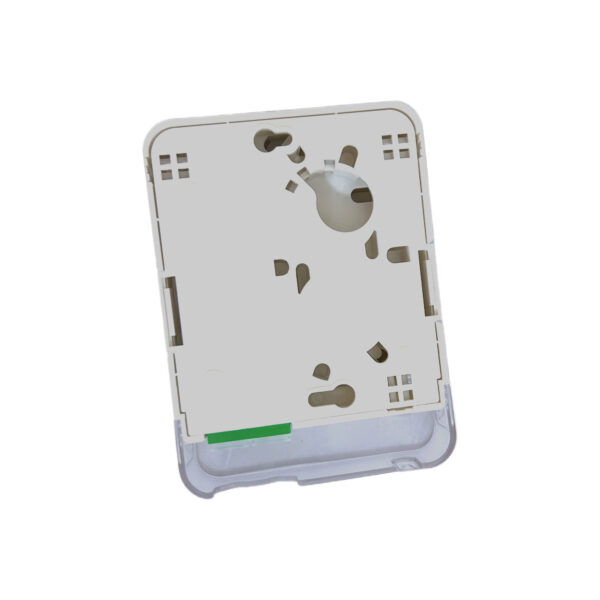

The 2 fiber access terminal box is a termination point designed to connect optical fiber cable with pigtail in FTTH indoor application. The module is lightweight and often installed on the indoor wall to provide fiber socket, it supports termination, fusion/mechanical splicing, and storage functions; the internal connection is made through the splice of drop cable or indoor cable and pigtail; and it is widely used in the end termination of residential/business building and villas.

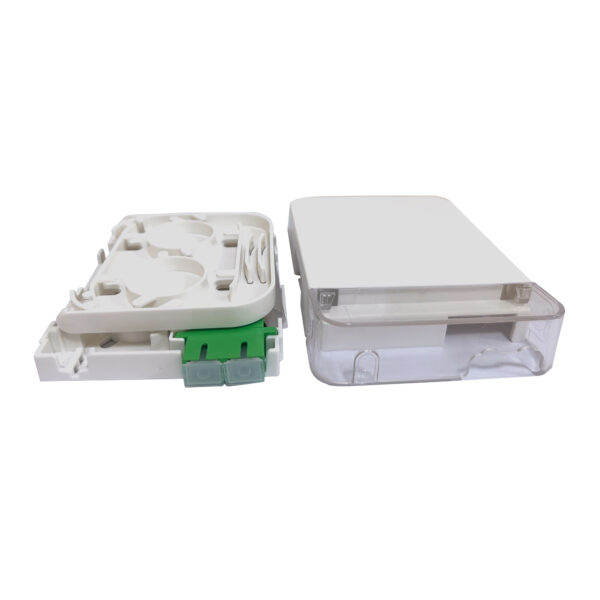

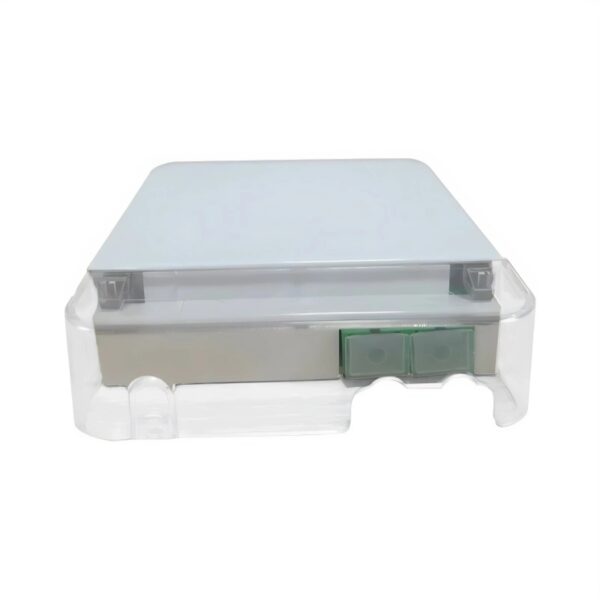

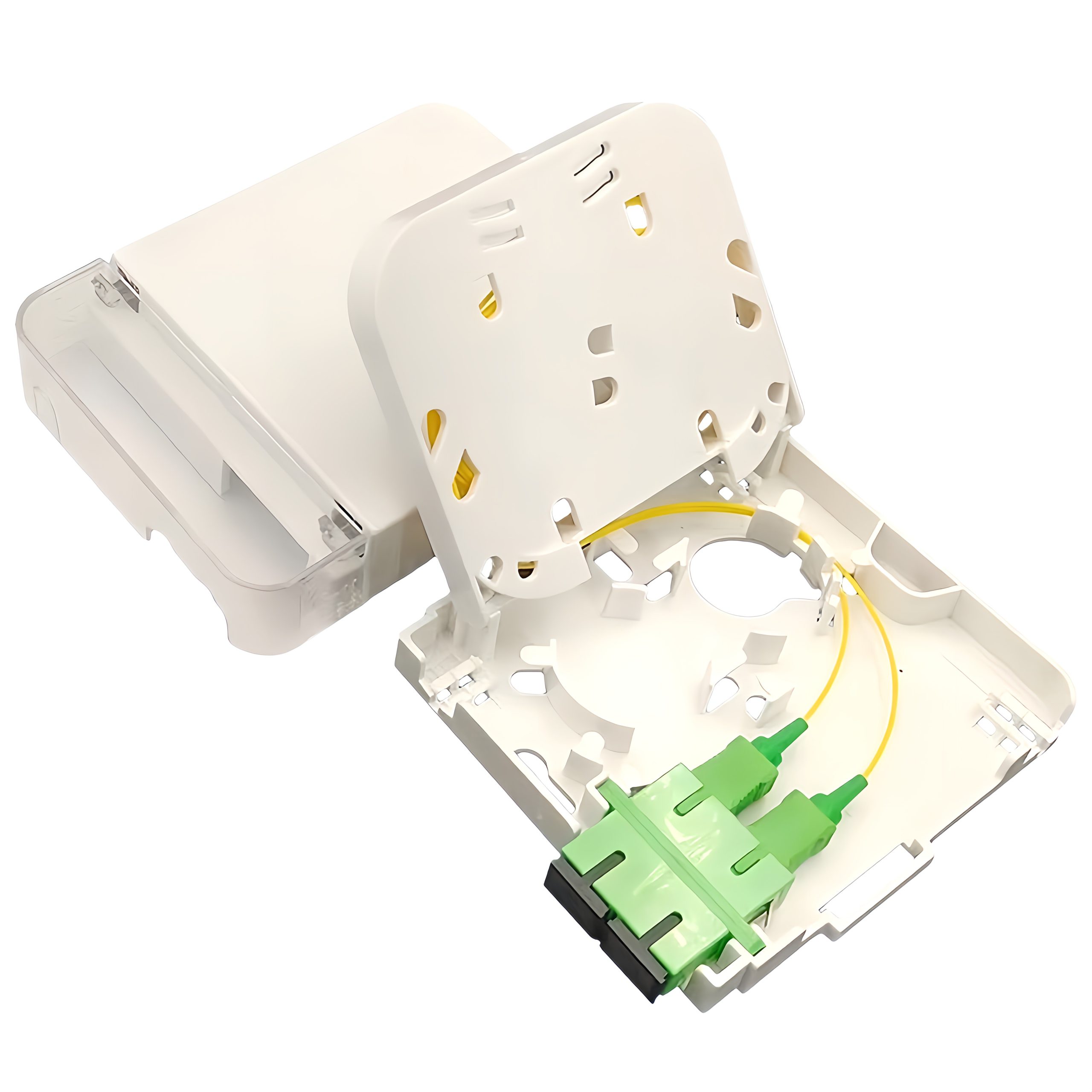

This optical termination box (OTB) comes with 1 outlet port in the front for SC or LC adapters, usually used to connect drop cable to passive ONU devices. It is of ABS plastic providing mechanical protection for pigtail and optical cable; two independent area for the slack cable management, and splicing ; there is 4 entry positions in every directions to meet different requirement of installation. The front of box is available with SC or LC duplex adapter and supports 2 fiber count terminal.
. Made of ABS plastics or flame retardant abs
. Small size taking up minimal wall space
. External adapter interface for easy operation
. Extra transparent cover at the outlet for better dustproof
. Enough space for fusion and wiring
|Cable Diameter (mm)
|Φ3mm or Drop cable(2*3mm)
|Max splice capacity
|2 cores (single)
|SC simplex, SC duplex
|7 days for 100pcs, 10 days for 800pcs
