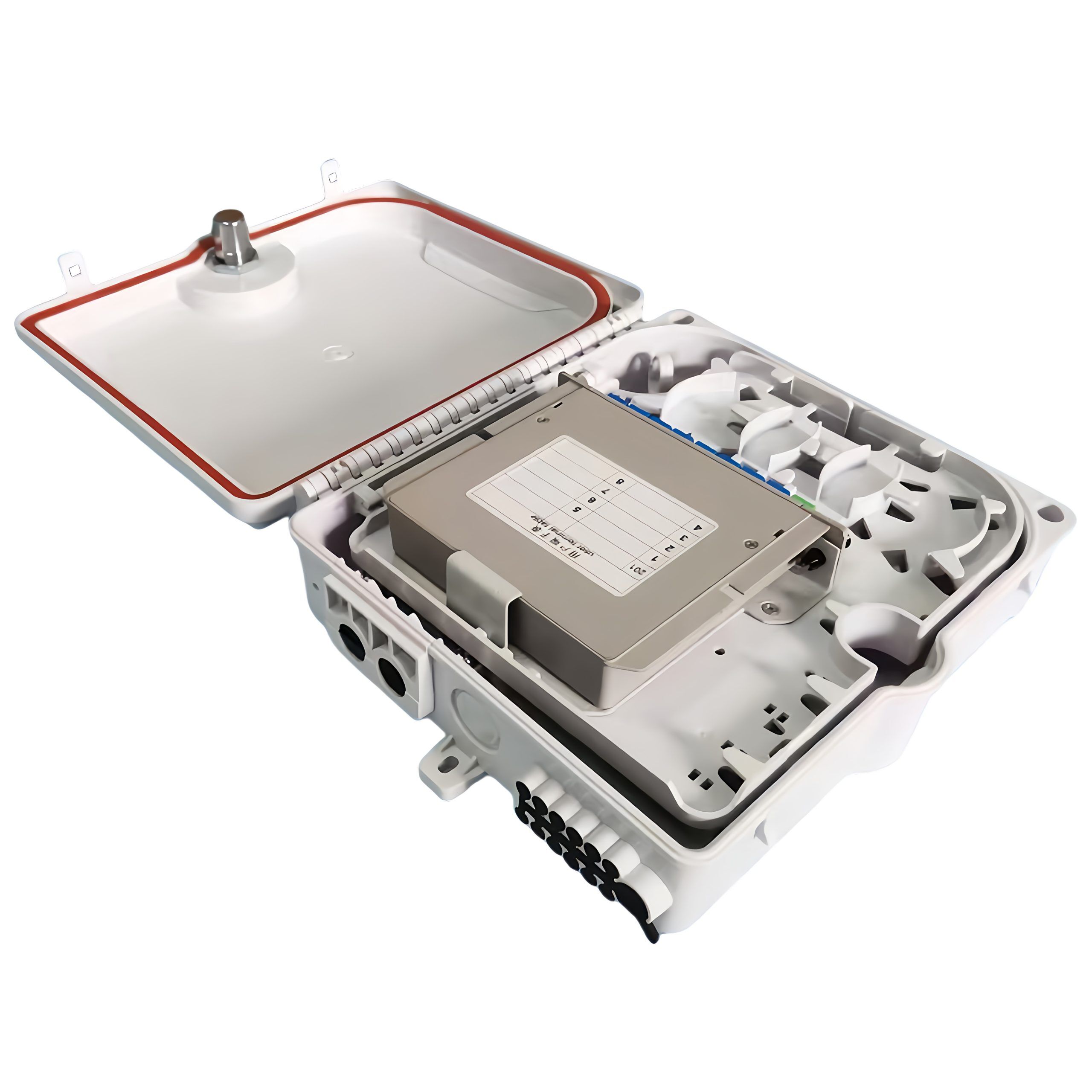

Outdoor 12 Ports Fiber Distribution Box Plug-in Splitter Type, 20 Splices
$12.00
Wall or Pole Mount, 2 Inlets 12 Outlets, 1X8 Cassette Splitter , Indoor& Outdoor Use
- Model: FDB-0212A1
- Material: ABS or ABS+PC
- Protection level up to IP65
- Can be pre-installed with adapters, splitter and pigtails (sold separately)
- Easy to maintain and install
- A free sample is available
FAST DELIVERY, FREE SAMPLES & 2-YEAR WARRANTY
- Note that this product has a minimum order quantity (50pcs). Please CONTACT sales for more information.
- Prices shown do not include shipping costs.
- The sample is provided free of charge. Freight charges will be quoted separately based on the delivery address
The outdoor fiber distribution box is an enclosure designed for fiber splicing and optical signal distribution in FTTH/FTTB networks. It connects feeder cables to distribution cables via a Cassette PLC splitter, serving as a distribution point within last-mile fiber networks. It is widely deployed in residential premises, business buildings, and villas.
The enclosure features two cable inlet and 12 cable outlet port, accommodating up to one 1×8 LGX PLC splitter for efficient optical signal distribution, while also allowing up to 20 core fiber splicing capacity. It is of high-quality engineering plastic, offering mechanical protection for fiber splices and joints; the anti-theft lock provides extra security; the multi-layer internal structure enables organized fiber routing and simplifies installation and maintenance.
With an IP65-rated design, the optical fiber distribution box is suitable for indoor and outdoor wall-mounted or pole-mounted installations, providing a reliable solution for fiber splice and distribution applications in FTTH fiber access networks.
Features:
. High-quality plastics, UV and impact resistance
. Reversible tray providing easy operation
. Enough space for cable storage and fiber routing
. Internal adapters allow the use of pre-terminated drop cable
Specification:
| Size (mm) | 212*224*73 |
| Weight(kg) | 0.95 |
| Cable inlet/outlet | 2/12 |
| Cable diameter (mm) | ≤ Φ 7mm |
| Max splice capacity | 20 cores (single) |
| Max splitting | 1:8 |
| Lead time | 7 days for 100pcs, 20 days for 300pcs |
| MOQ | 100 pcs |
