The 1×2 splitter fiber distribution box is a essential equipment designed to achieve internal max 4 cores fiber optic connection of optical cable and pigtail in small-scale networks. It provides the functions of mechanical/fusion splice, termination, splitting and storage and suits for indoor installation. The compact plastic box adapts to optical cable distribution and terminal connection, and widely used in residential premises, business buildings, and villas  in the fiber access network . Basically it mounted on the wall.

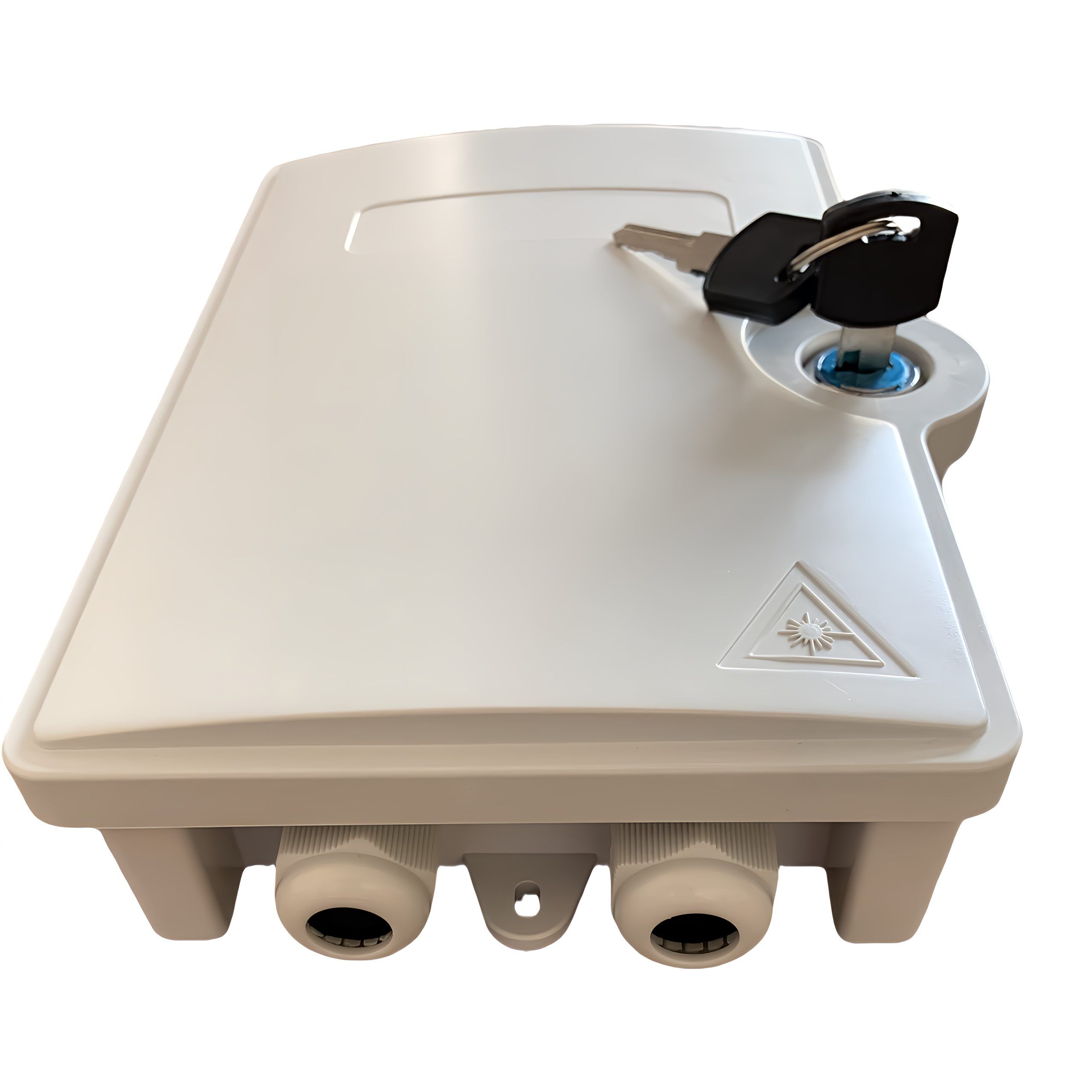

This indoor optical fiber distribution box comes with 1 input and 1 output port to support max 4 cores splicing and to be installed with 1×2 plc splitter. It is made of engineering plastic that offers strong protection; the screw lock provides extra security;Â two-layer design saves space and for easy operation and maintenance, the upper area for storage, splicing and installing mini splitter, and the lower area for the cable management and the connection of the pigtails to the internal adapters;Â the designated adapter slot for the adapters can be easily snapped into. Â The compact wall mounted FTTH box enables the direct connection of pre-terminated drop cable or branch connection through the fusion splicing with pigtail, also used to realize terminal connection.
Features:
. High-density engineering plastics, UV-resistant
. Small size, light weight, beautiful appearance
. Enough space for cable storage and fiber routingÂ
. User-friendly internal design for quick installation and cable management
Specification:
Size(mm) | 208*153*52 |
Weight(kg) | 0.4 |
Cable inlet/outlet | 1/1 |
Cable diameter (mm) | Φ7 ~ Φ10 |
Max splice capacity | Â 4 cores |
Suitable adapter | Â SC, LC |
Lead time | Â 7 days for 100pcs, 10 days for 800pcs |
MOQ | Â 100 pcs |
