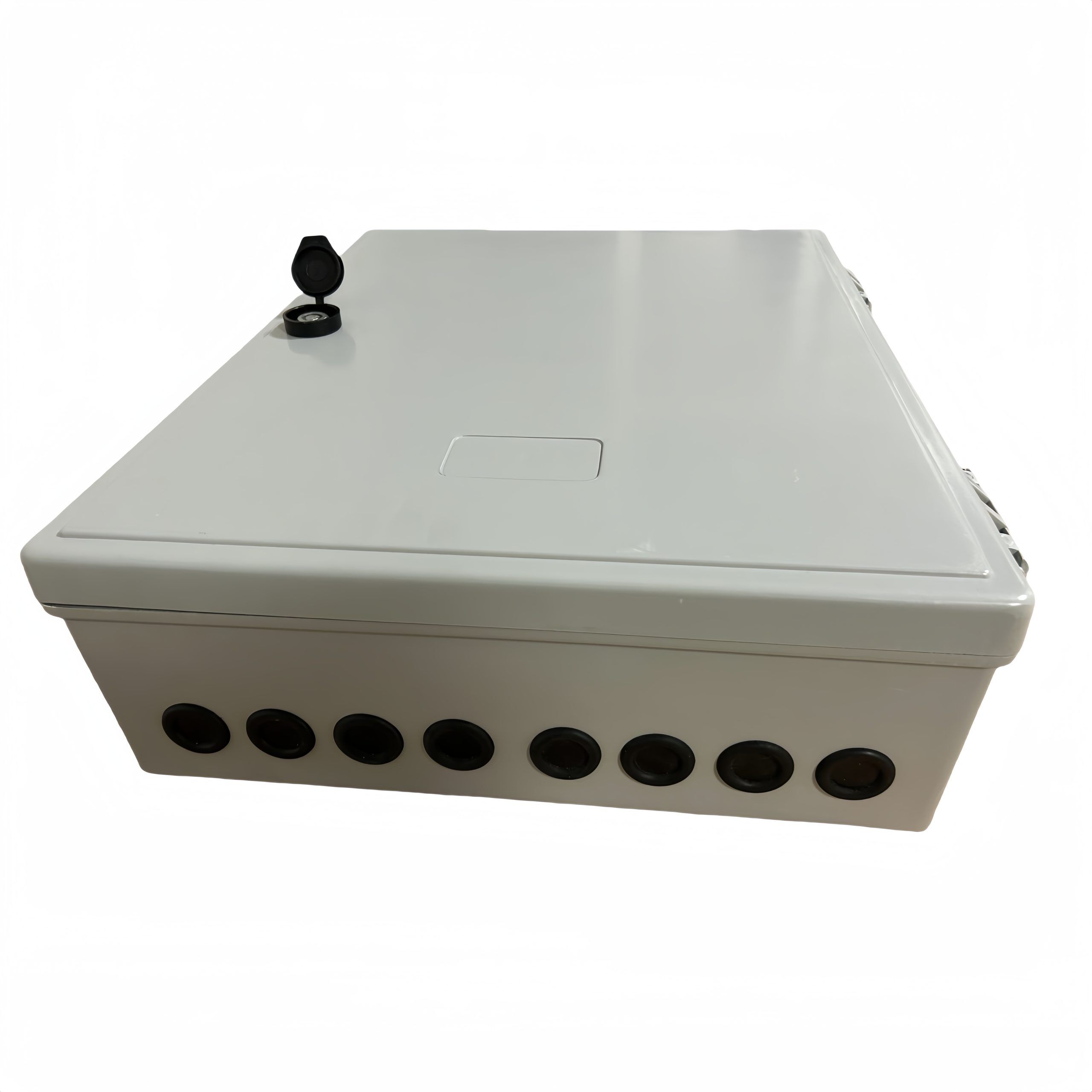

Outdoor 96 Cores SMC Fiber Distribution Cabinet

The 96-core Fiber Distribution Box is a high-density, wall-mounted interconnect cabinet designed for next-generation FTTx networks. Managed to provide maximum fiber terminations within a limited footprint, this cabinet serves as a robust bridge between outdoor feeder cables and indoor distribution networks.

The cabinet is constructed from high-quality SMC (Sheet Molding Compound) material, which ensures long-term protection in demanding infrastructure settings. It is heat-resistant, corrosion-proof, and aging-resistant, making it ideal for building entrance terminals, telecommunications closets, and controlled environments where space is at a premium.

The cross-connect cabinet supports a maximum of 96 SC adapter slots for high-density fiber management. It features 8 cable entry and exit ports, optimized for the organized routing of trunk and distribution cables. The interior is intelligently divided into two functional areas: one side for splicing outdoor cables to fiber pigtails, and the other side for cross-connection and jumper management using fiber patch cords.

To ensure reliable signal transmission, the cross-connect enclosure comes equipped with four 24-fiber splice trays, providing a total capacity of 96 splices while maintaining proper bend radius protection.  This fiber interconnect cabinet is the perfect solution for computer rooms and telecommunications hubs requiring secure, high-capacity fiber distribution.

Features

1. The shell is made of high-strength anti-corrosion special synthetic material, can effectively prevent the influence of any harsh environment such as rain, snow, insects and corrosive gases.

2.The structural design is reasonable. It comes with grounding device.

3. The box adopts single-sided lockable door, and the wiring space in the box is large, which is convenient for operation and maintenance.

4. Internal optical path is marked obviously, splicing and coiling positions are clear.

6. Cabinet is with compact structure, easy installation and excellent sealing performance.

7. Safe optical fiber curvature radius protection structure.

8. For both ribbon and non-ribbon cable.

9. Meet UL94-V0 standard.

Specification:
