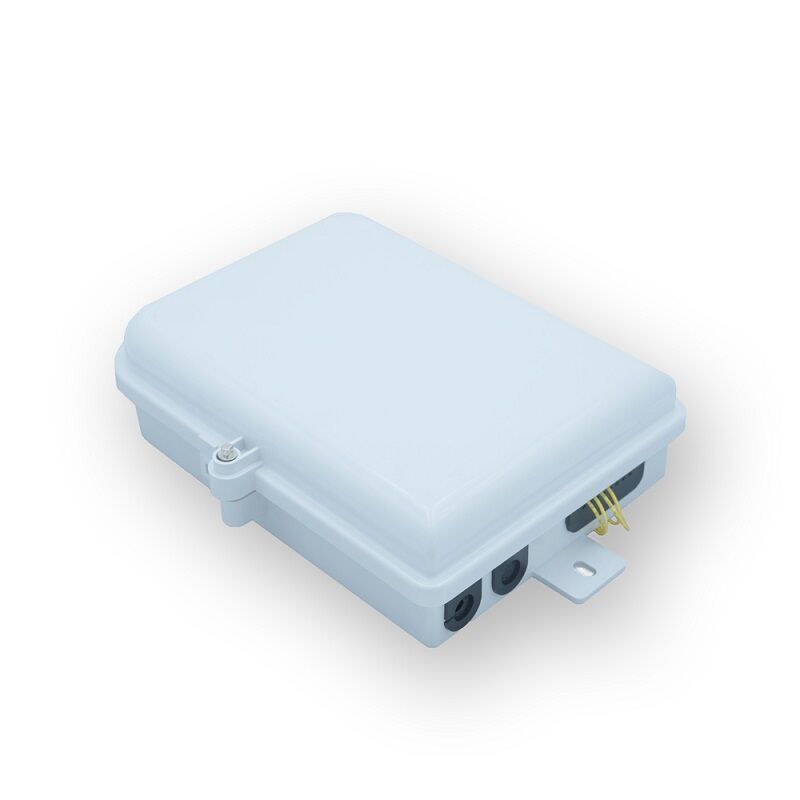

16 Port Plug-in Splitter Distribution Box, 24 Splices

The 16 Port 1×16 Plug-in PLC Splitter Distribution Box is an outdoor enclosure designed for fiber splicing and optical signal distribution in FTTH/FTTB networks. It connects feeder cables to distribution cables via a PLC splitter, serving as a reliable distribution point in last-mile fiber deployment. It is widely used in apartments, residential buildings, and commercial facilities.

The enclosure features 2 cable inlet ports and 16 cable outlet ports, accommodating one 1×16 LGX PLC splitter for efficient optical signal distribution. It also provides up to 24-core fiber splicing capacity. Constructed from high-quality engineering plastic, it offers strong mechanical protection for fiber splices and joints. The anti-theft lock enhances security; the multi-layer internal design ensures organized fiber routing and simplifies installation and maintenance.

With an IP65-rated waterproof design, the fiber distribution box (FDB)  is suitable for outdoor wall-mounted or pole-mounted installation, providing a reliable solution for fiber splicing and distribution in FTTH access networks.

Features:

. High-density plastics

. Support 2 pcs 1×8  mini splitter or one 1×16 PLC

. Flip design for adapter and splice tray providing safe bend radius

. Screw type lock gives safety and convenience in operation

Technical parameter:

. Optical fiber radius of curvature:≥40mm

. Splice tray additional loss：≤0.01dB

. Temperature Range: – 40°C ~ + 60°C

. Compressive strength: ＞500N

Specification:
