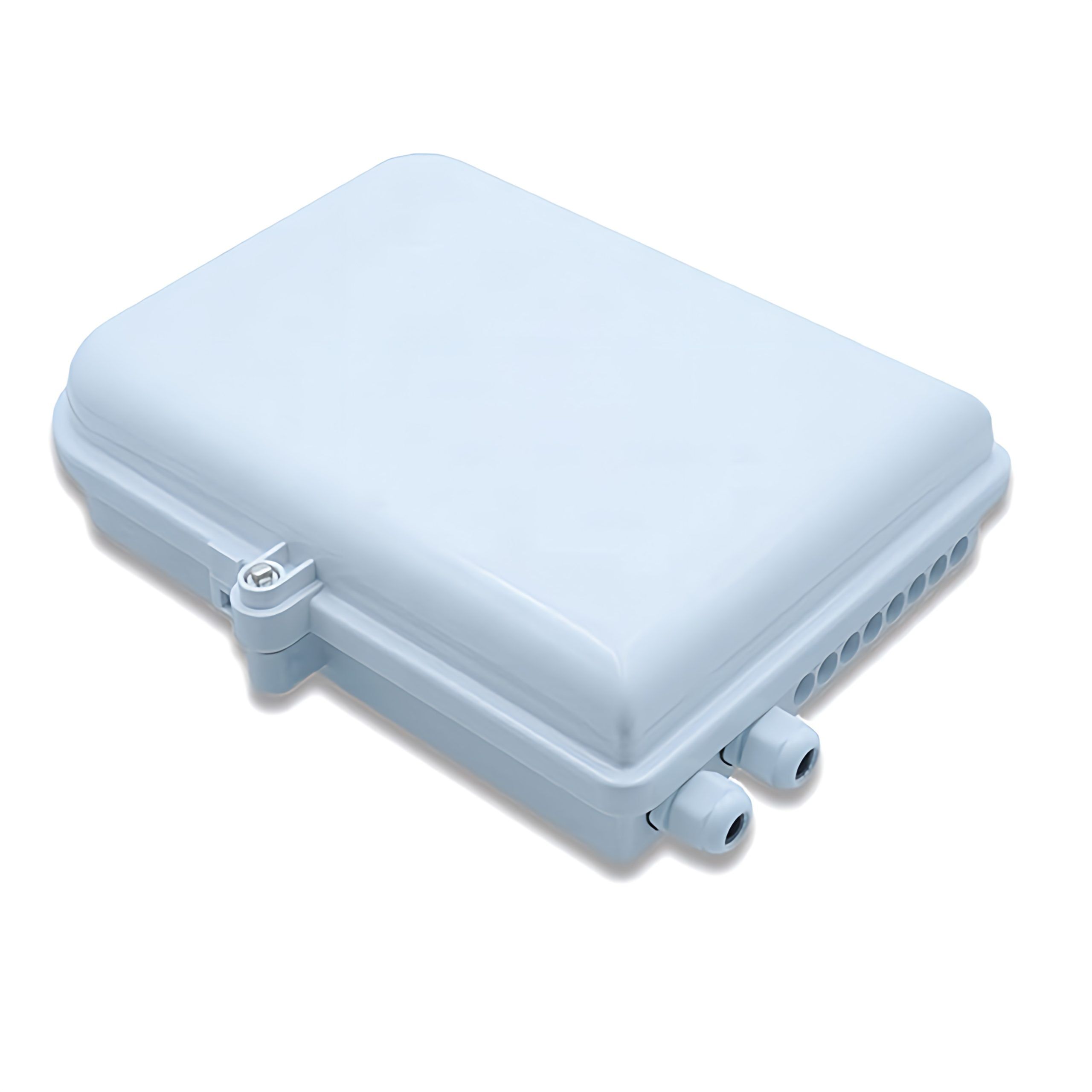

16 Port Outdoor Fiber Distribution Box For Blockless Splitter, 24 Splices

The  16 port mini plc splitter distribution box is a fiber enclosure designed for fiber splicing and optical signal distribution in FTTH access networks. It is widely deployed in MDUs, residential buildings, commercial facilities, and villas, providing a reliable solution for last-mile fiber deployment. The enclosure integrates fiber splicing, signal splitting, termination, and cable management for organized fiber management. Constructed from high-strength engineering plastic, it ensures durability and protection in indoor and outdoor environments.

The 16 port fiber distribution box is equipped with adapter slots and supports mini PLC splitter installation, enabling it to function as a fiber access terminal (FAT) for feeder-to-subscriber drop cable connectivity. It also provides a reliable interface for fiber termination and distribution.

The NAP enclosure features 2 cable inlet ports and 16 cable outlet ports, supports up to 16 SC adapters and a 1×16 mini blockless PLC splitter, and provides up to 24 core splicing capacity. With an IP65-rated design, it supports wall-mount or pole-mount installation in fiber access networks.

Features：

. High-density ABS plastics or ABS+PC

. Reasonable space for cable and pigtail splicing

. UV/Aging/Impact/Water resistance

. Flip design for adapter and splice tray providing safe bend radius

. Screw type lock gives safety and convenience in operation

Technical parameter:

. Optical fiber radius of curvature:≥40mm

. Splice tray additional loss：≤0.01dB

. Temperature Range: – 40°C ~ + 60°C

. Compressive strength: ＞500N

Specification:
