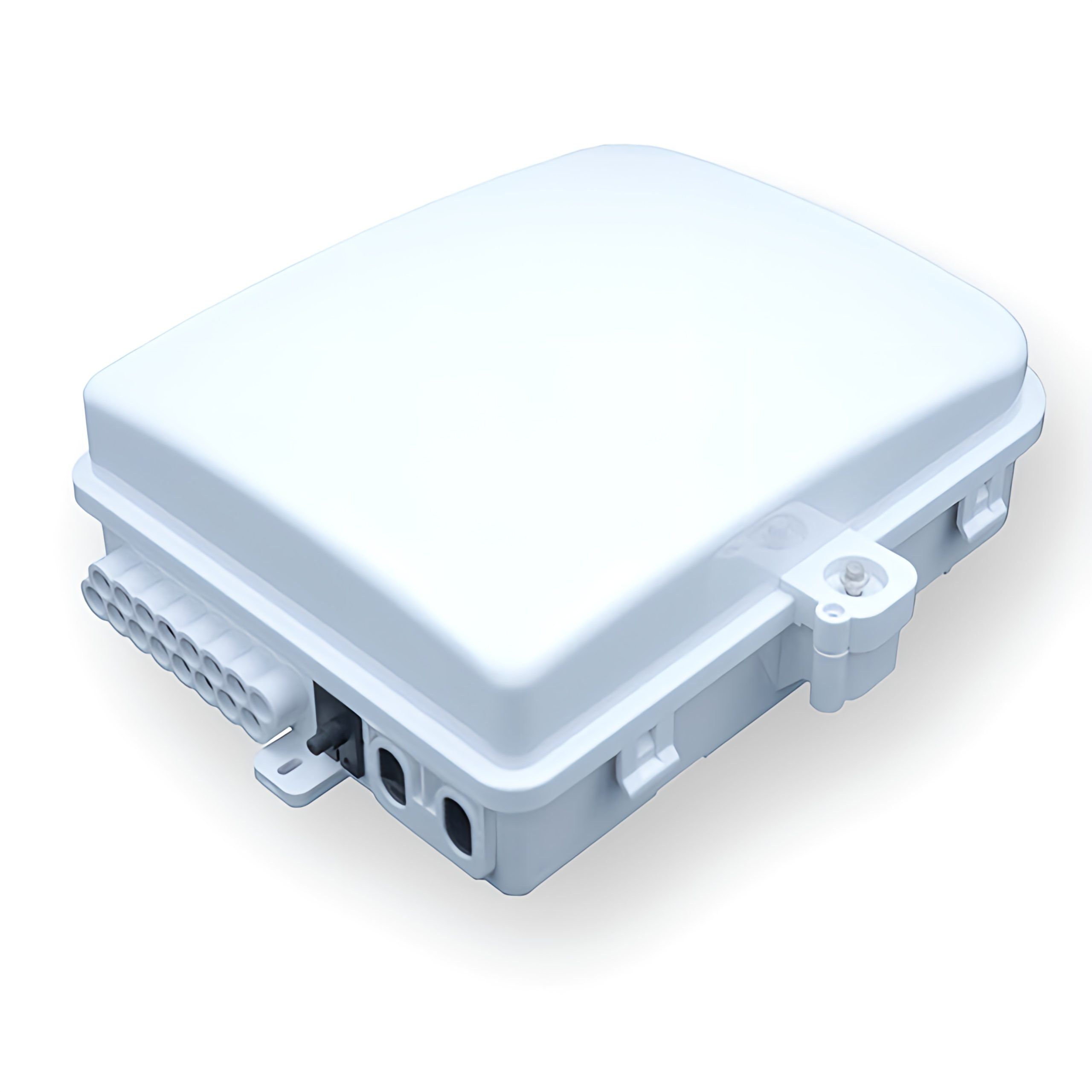

This 16 port fiber optic distribution box can be wall-mounted or pole-mounted, which especially suitable to connect distribution cables in the outside plant network to FTTX network drop cables by internal adapter. While it also can achieve straight-through connection by splicing optical cable with indoor cable or pre-terminated drops. The unit provides the capability of splicing, splitting, and patching between the building entrance facility and the floor distribution box or the customers’ points of entry, mainly used in residential & business premises and villas in the FTTH access network.
The fiber cable distribution box comes with 3 input and 16 output ports that can adapt to various optical connection systems. It is of engineering plastic that gives solid protection for optical cable and pigtail; the lock provides extra security;Â dual-layer design is easy for operation, the lower for splicing and storage, upper layer allows to install 1:16 or 1:8 blockless splitter for splitting and cable distribution. The enclosure is waterproof and suits both indoor and outdoor solution, and supports up to 24 fusion splices.
Features:
. High-quality plastics ABS or ABS+PC, UV/water resistance
. Unique rubber plugs in the inlet makes cable enter the box without breaking
. Reasonable space for cable and pigtail splicing
. Flip design for adapter and splice tray providing safe bend radius
. Screw type lock gives safety and convenience in operation
Technical index:
 . Fiber radius of curvature: :≥30mm
. Additional loss:≤0.01dB
. Temperature Range: – 40°C ~ + 60°C
 . Compressive strength: >500N
 Specification:
Size (mm) | 300*242*98 |
Weight(kg) | 2.1 |
Cable inlet/outlet | 3/16 |
Cable diameter (mm) | Φ6~Φ12 |
Max splice capacity | 24 cores (single) |
Max splitting | 1:16(1 pc) or 1:8(2pcs) |
Lead time | Â 7 days for 100pcs, 10 days for 800pcs |
MOQ | Â 100 pcs |
