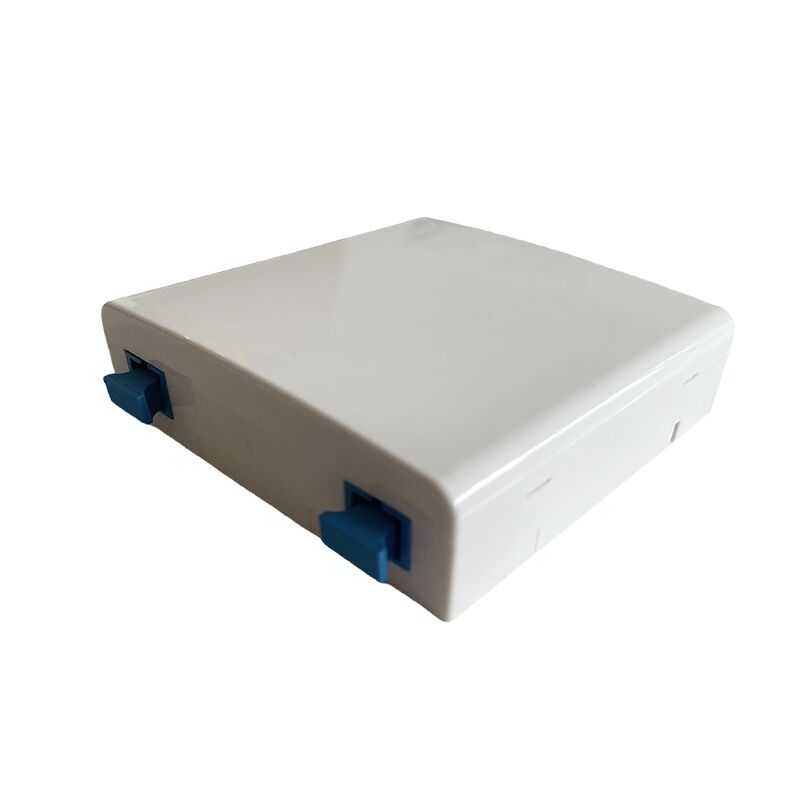

This 2 ports socket faceplate is a box-shaped fiber optic outlet, it is especially suitable to link drop cable/indoor cable to ONT devices in the apartment or small office when deploying fiber to the home network. It is a box with optical socket to which the installer connects the user’s fiber optic patch cord. The unit provides mechanical or fusion splicing, termination, wiring in FTTH, FTTO, FTTD applications, and mainly deployed in the subscriber’s home, usually mounted in the wall or standard electrical junction cabinet.
This fiber socket faceplate can house 2 SC simplex or LC duplex adapter, which served as termination point for optical fiber in an indoor environment. The cable entry up to 7 points that provides the flexibility of home and office internet installation; it has 2 exit position for optical adaptor and the splice capacity can reach 4 cores; the reasonable structure allows for excessive length fiber management, minimum bend radius control. The fiber optic socket matches the international standard A86 panel.
. Made of solid ABS plastic
. Modern design with small size and lightweight
. 2 adapter interface for easy installation
. Removable cover is convenient for operation
. Equipped with dust plug, dustproof
|Cable diameter (mm)
|Φ3mm or 2*3mm
|Max splice capacity
|2 cores (single)
|7 days for 100pcs, 10 days for 800pcs
