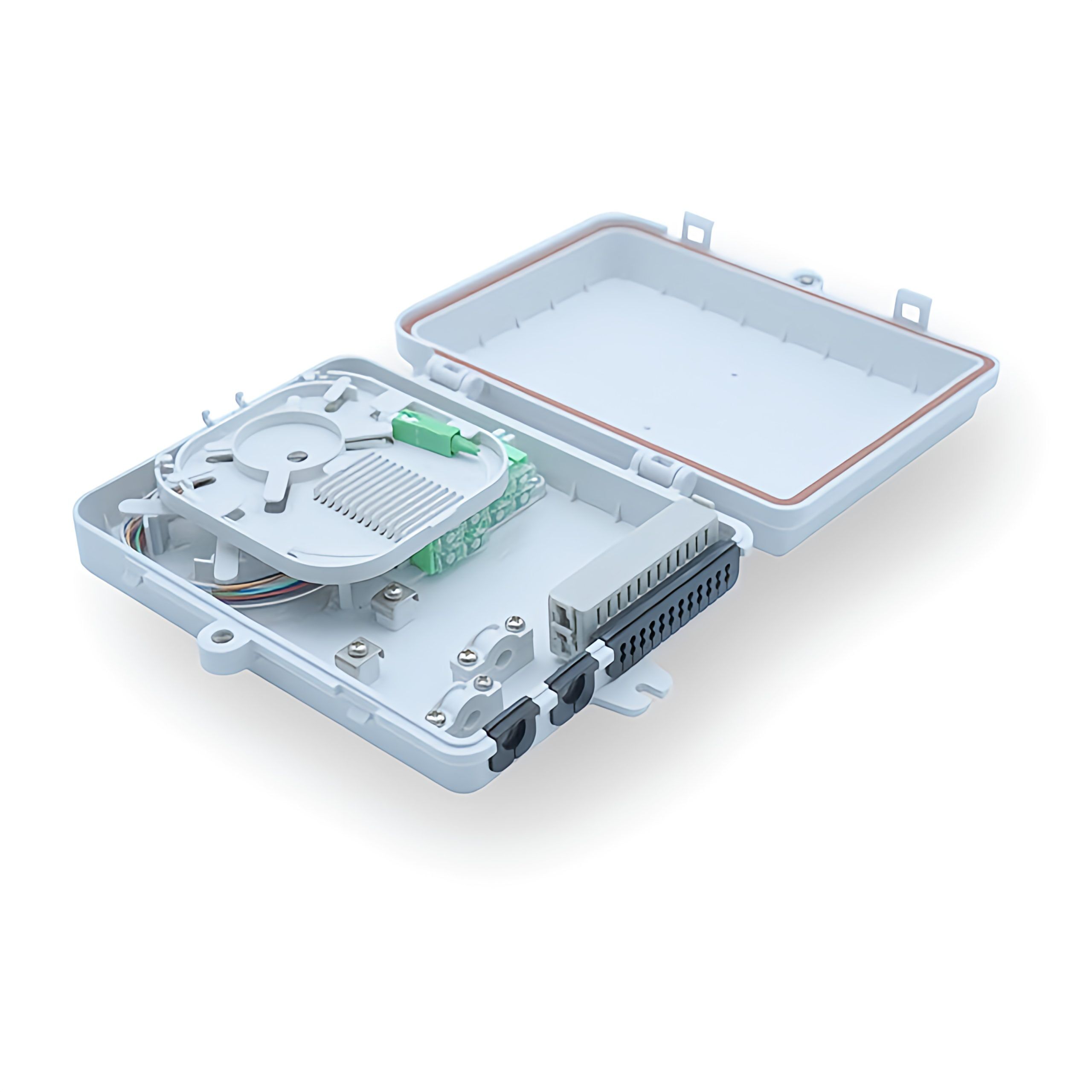

The 24 core wall mount fiber enclosure is a distribution box designed to connect the feeder cable and drop cable in FTTX network, which can be placed on every floor or every other floor. It supports termination, splicing, distribution and storage functions within the box , and suits indoor and outdoor wall mount environments. The plastic module adapts to a variety of optical connection systems that can realize the cable direct or branch connection and the terminal access of 24 subscribers, and widely used in residential premises, business buildings, and villas.
This plastic wall mount distribution box comes with 2 input and 24 output ports, which can accommodate max 1×8 blockless fiber optic splitter to distribute optical signal and hold 24 cores termination in FTTH, FTTB system. The optical fiber box is waterproof rated IP65 and suits wall mount or pole mounting application.
Specification:
| Size (mm) | 200*150*46 |
| Weight(kg) | 0.48 |
| Cable inlet/outlet | 2/24 |
| Cable diameter (mm) | Φ7 ～ Φ10 |
| Max splice capacity | 24 cores (single) |
| Suitable adapter | Â SC duplex (4 pcs) |
| Max Splitting | Â 1:8 |
| MOQ | 100 pcs |
Our Services
Fast Delivery
Delivery time is very important to the majority of customers, We try best to find an effective way to coordinate orders to arrive at your destination promptly.
Guaranty
All Fiber Termination Boxes/Enclosures have 2 years ( fiber optic component 1 year ) warranty. We will make a replacement if there are some Non-human damage during a period of warranty time.
Free Sample
If you are interested in our product, we can offer a Free Sample for your quality test.
