Rack Mount Fiber Termination Box With 12 Port , 12 Splices
$23.50
Slide-out Type, 19” , Indoor Application, 1U 12 Ports or 24 ports
- Model: GPZJJ-CLC-SC12
- 4 cable entry ports with grommets in the rear of the unit
- Adapter panel and splice tray can vary as request
- No adapters included.
- Free sample is available
FAST DELIVERY, FREE SAMPLES & 2-YEAR WARRANTY
- Note that this product has a minimum order quantity (50pcs). Please CONTACT sales for more information.
- Prices shown do not include shipping costs.
- The sample is provided free of charge. Freight charges will be quoted separately based on the delivery address

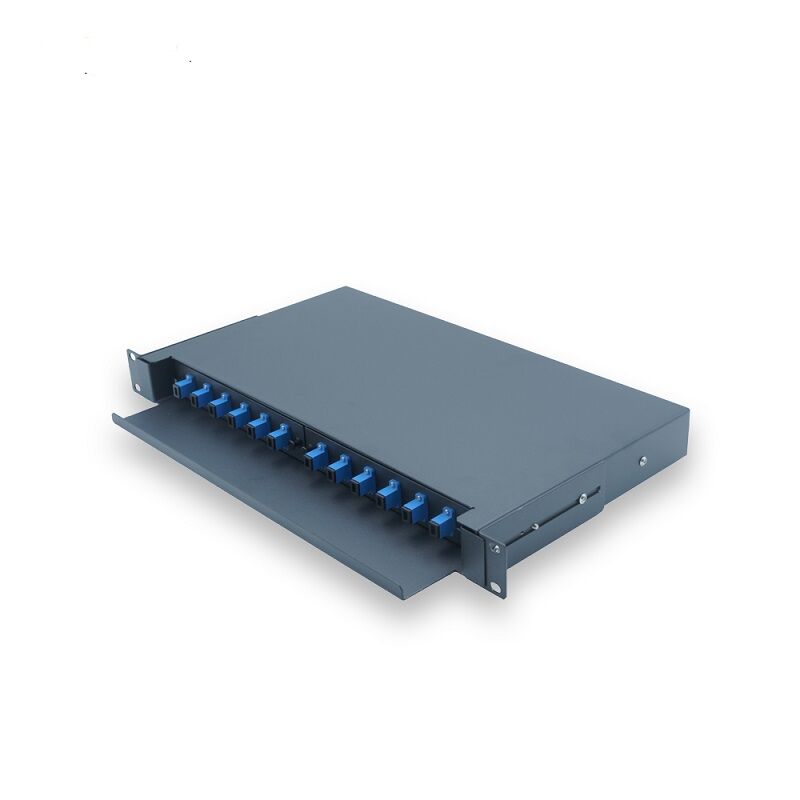

The 12 port rack mount fiber patch panel is designed to support 2pcs separate 6 SC or LC adapters on the front and can also be pre-terminated with 12‑strand single-mode or multimode pigtail cables according to customer requirements. The robust steel enclosure provides a secure interface between external optical cables and pigtails, while the interior includes a 24‑fiber splice tray and cable management spools for splicing and storing excess optical fibers.
This 1U fiber patch panel offers excellent fiber termination and patching management, making it ideal for optical cable distribution and terminal connections. It is typically installed in 19″ or 23″ server racks.

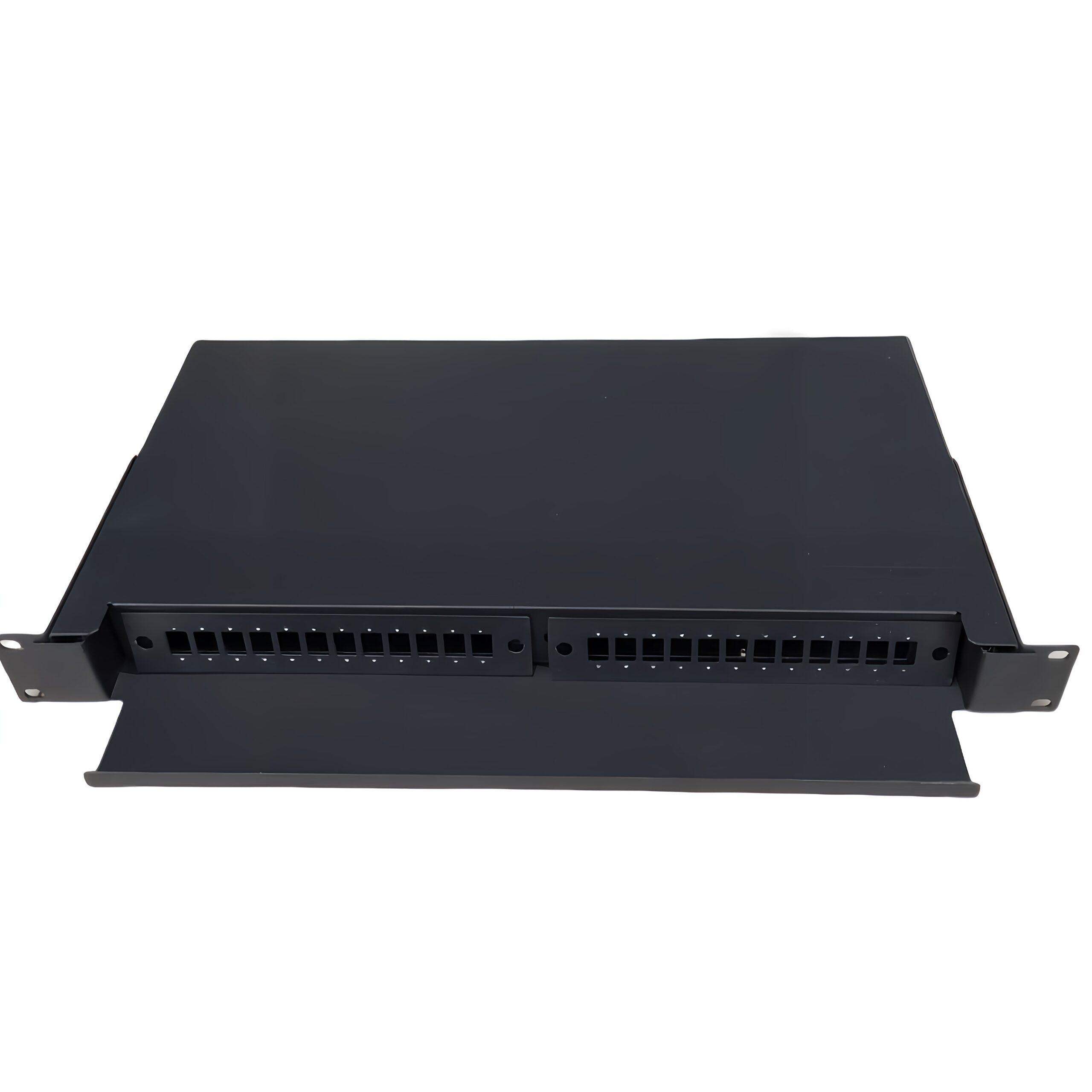

The distribution panel features a drawer-type design, can be pre-terminated with various adapter types (SC or LC, simplex or duplex) and 12‑ or 24‑strand single-mode or multimode pigtail cables. The splice tray can be easily pulled out for simple fiber installation and convenient maintenance. Cables enter from the rear, while fiber patch cords are routed out through the front adapter panel for efficient connectivity. The rack mount fiber patch panel delivers excellent performance in fiber termination and distribution applications, usually used for FTTH, FTTB, data centers, and telecom networks.
Features:
. High quality cold-rolled steel, electrostatic spraying in the surface
. Configure with cable fixed device, splice tray and thread ring
. Stacked splice tray is convenient for future capacity expansion
. Independent insulation grounding device provides the safety
. Internal splice tray is made of high strength engineering plastics
. Inlets and outlets are sealed with oil resistant nitrile rubber
Specification:
| Size(mm) | 482*300*44.5 (1U) |
| Suitable adapters | SC, ST, FC, LC |
| Cable inlet/outlet | 4/12 |
| Connector capacity | 12 or 24 |
| Max fiber splice capacity | 12 (single core) or 24 (dual core) |
| Application | FTTH, LAN,WAN,CATV etc |
| Lead Time | 7 days for 100pcs, 20 days for 300pcs |
| MOQ | 100pcs |
