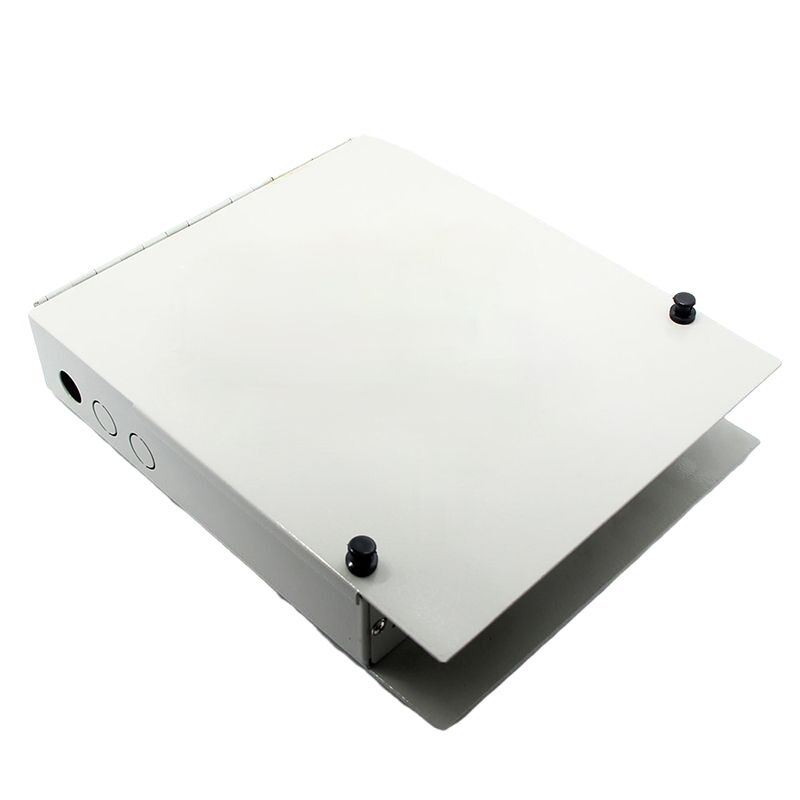

The metal 16 port fiber termination box it used to joint optical fiber cable and pigtail, which protecting the optical fiber from damage. It is a cost-efficient metal cabinet for low-density fiber cabling and mini-network terminal connection, which integrates termination, splicing, protection and storage. It is ideal for the end termination in residential buildings and villas for FTTH,FTTB systems.
This compact wall mounted box is provided with 16 adapter ports and 3 cable entry points, which used to organize and protect fiber splicing and patching. It is metal construction for durability; a single door with the locking mechanism for security; hinge design cover is easy for installation and maintenance; various front adapter panel with module for the termination of SC,LC,FC,ST connectors and supports 16 fiber count terminal.
Features：
. Made of cold rolled steel sheet, electrostatic spraying
. Small size, light weight, good appearance
. With heat shrink sleeve slots for better protection
. Max capacity is 16 cores
Specification：
| Size (mm) | 245×200×48 |
| Weight(kg) | 1.24 |
| Cable inlet/outlet | 3/16 |
| Cable Diameter (mm) | Φ5~Φ8 |
| Max splice capacity | 16 cores (single) |
| Suitable adapter | SC, LC,FC, ST |
| Lead time | Â 7 days for 100pcs, 10 days for 800pcs |
| MOQ | 100 pcs |
Our Services
Fast Delivery
Delivery time is very important to the majority of customers, We try best to find an effective way to coordinate orders to arrive at your destination promptly.
Guaranty
All Fiber Termination Boxes/Enclosures have 2 years ( fiber optic component 1 year ) warranty. We will make a replacement if there are some Non-human damage during a period of warranty time.
Free Sample
If you are interested in our product, we can offer a Free Sample for your quality test.
