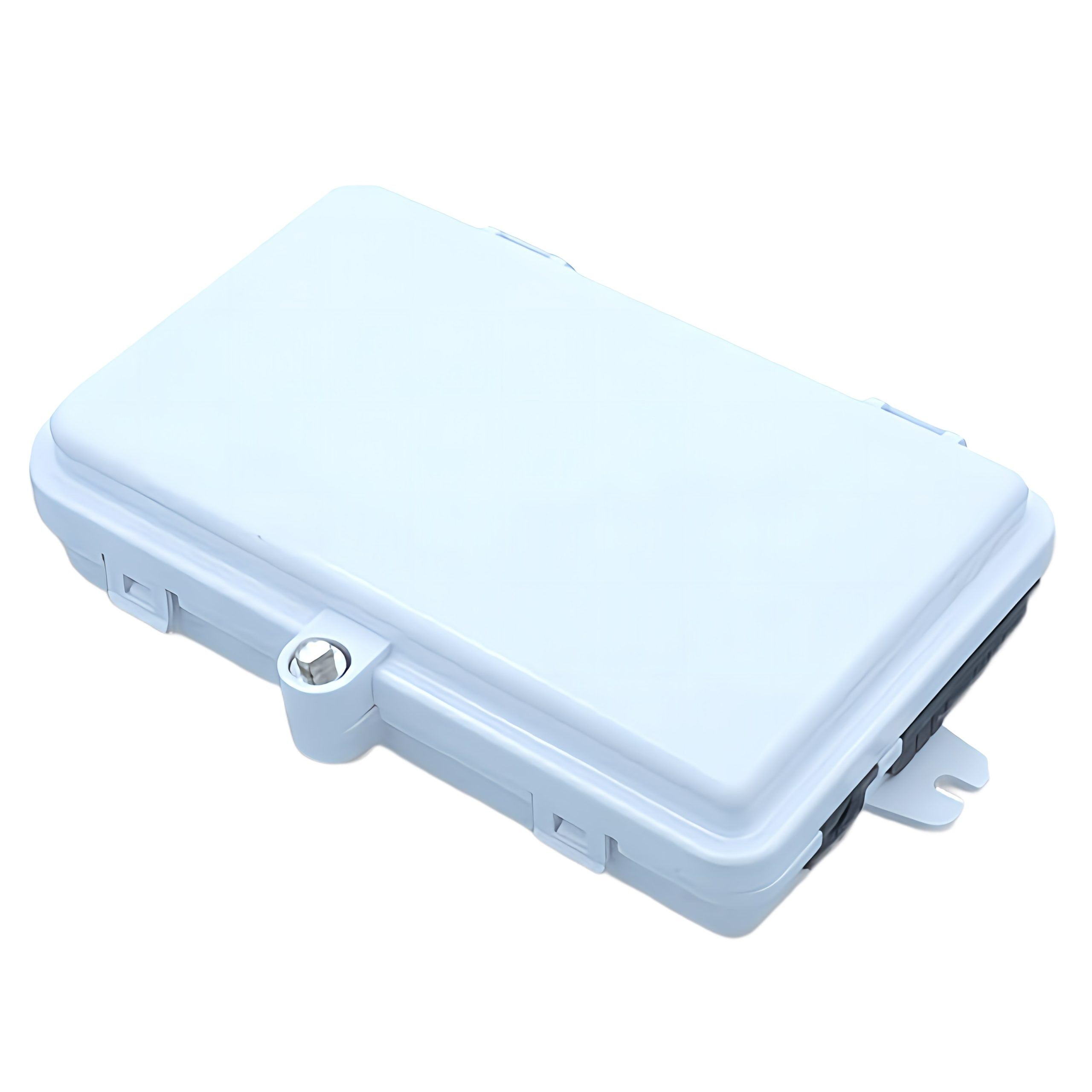

The indoor fiber wall mount module is a optical cable distribution box design to achieve internal connection of optical cable and pigtail or 1×4 plc splitter. It provides the functions of mechanical/fusion splice, splitting, and patching and suits indoor and outdoor environments. The 4 fiber termination box adapts to optical cable distribution and terminal connection, and widely used in residential premises, business buildings, and villas for FTTH network project.
This fiber distribution box comes with 1 input and 4 output ports, which can accommodate max 1:4 splitter and support 8 cores splicing. It is made of engineering plastic that offers strong protection; The screw lock provides extra security; Dual-layer design saves space and for easy operation, the upper area for storage and splicing, and the lower area for the cable management and the connection of the pigtails to the internal adapters, also there is a place for the mini PLC splitter to distribute optical signal; the drop cable connections and disconnections are performed exclusively inside the box without affecting any previously connected cable.
. High-density ABS plastics or ABS+PC, UV/shock resistance
. Small size, light weight, beautiful appearance
. Enough space for cable storage and fiber routing
. Flipped middle tray can manage the fibers effectively
. Cable port is rubber sealed, dust-proof
|Cable diameter (mm)
|Φ7 ～ Φ10
|Max splice capacity
|8 cores (single)
|7 days for 100pcs, 10 days for 800pcs
