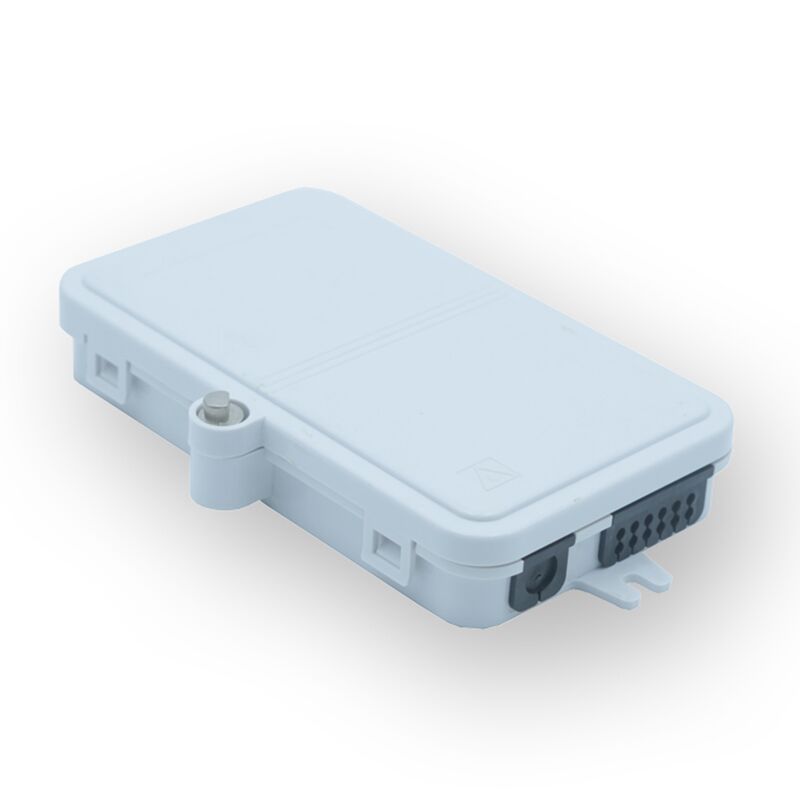

The 12 port fiber termination box is designed to realize internal connection between optical fibre cable and pigtail, also enables fiber access terminal connection. It offers the functions of mechanical/fusion splicing, cable distribution and fixation; and widely used in the for the end termination of apartments, residential/ business buildings, and villas for FTTH,FTTB projects.
This fiber termination box comes with one cable entry port and 12 exit positions, supporting up to 12 cores splice. It is made of engineering plastic that provides mechanical protection for splices and terminations; the screw lock provides security; two-layer design saves space and can manage optical fiber effectively; the enclosure suits indoor wall mount installation, and can hold up to 12 subscribers.
Features:
. High-density ABS plastics or ABS+PC, UV/impact/water resistance
. Reasonable space for cable and pigtail splicing
. Flipped splice tray for easy fiber management
. Screw type lock gives safety and convenience in operation
. Internal structure guides safe bend radius
Technical parameter:
. Optical fiber radius of curvature:≥40mm
. Splice tray additional loss：≤0.01dB
. Temperature Range: – 40°C ~ + 60°C
. Compressive strength: ＞500N
Specifications:
| Size(mm) | 114*178*28 |
| Weight(kg) | 0.24 |
| Cable inlet/outlet | 1/12 |
| Cable diameter (mm) | Φ3~Φ10 |
| Max splice capacity | 12 cores (single) |
| Suitable adapter | No |
| Lead time | 7 days for 100pcs, 10 days for 800pcs |
| MOQ | 100 pcs |
