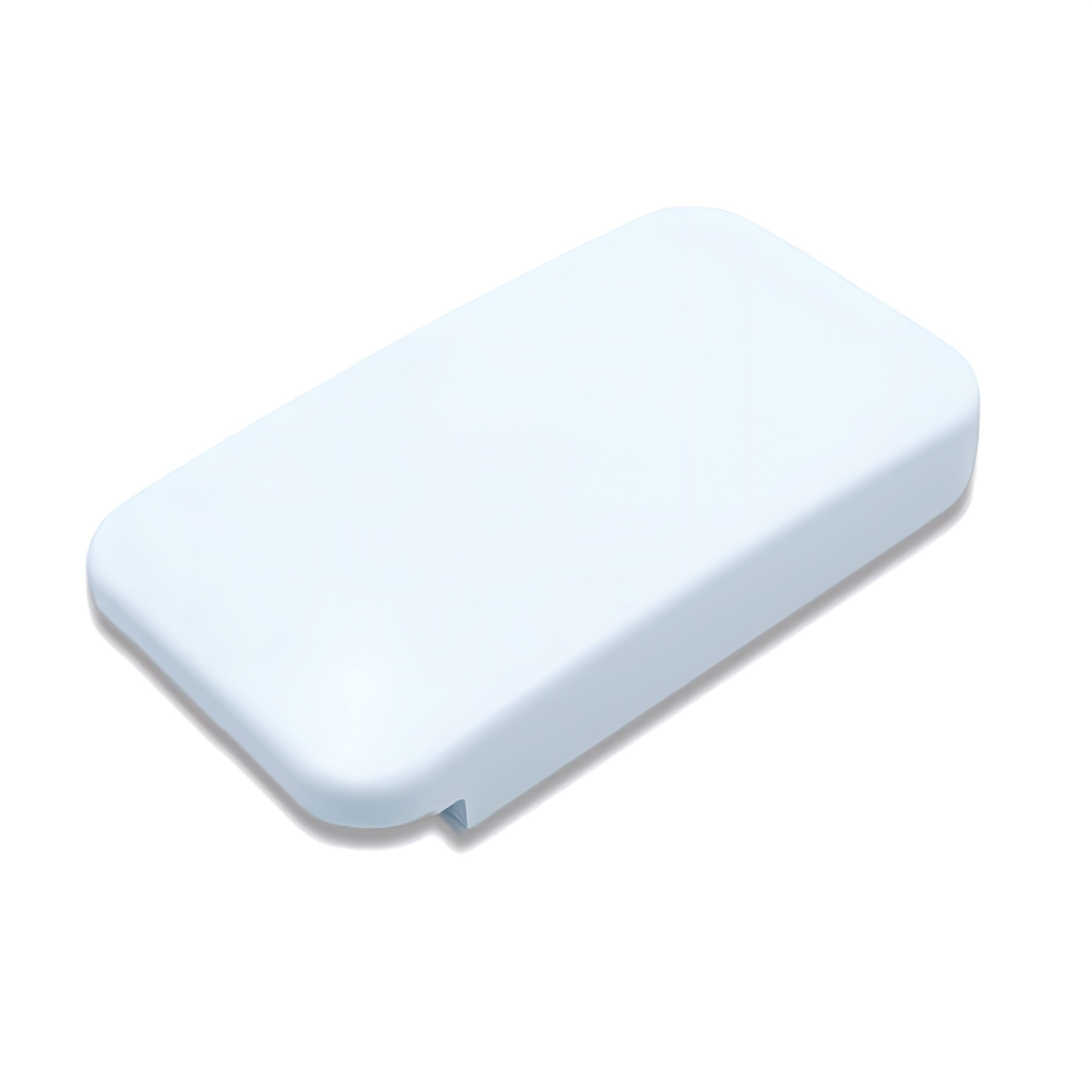

Indoor Fiber Optic Termination box With 2 SC Outlet, 4 Splices

$3.30

Wall Mount, 3 Cable Access Inlet, Indoor Use

Model: FOTB-0102
Material: ABS or flame-retardant ABS
Easy installation and maintenance
Can pre-installed with pigtail, adapter, which sold seperately
Free sample is available

FAST DELIVERY, FREE SAMPLES & 2-YEAR WARRANTY

Note that this product has a minimum order quantity (50pcs). Please CONTACT sales for more information.
Shipping cost not included.
A sample is free of charge, but shipping fee is for your account.

This 2 port fiber optic wall outlet is used as an termination point that can connect 2 fibers to the passive-optical interface in the living area or office. It is designed to joint drop cable and pigtail, and the fiber jumper links the wall outlet to the ONU in FTTH network. The enclosure support mechanical/fusion splicing, termination and storage functions for optical fiber in indoor environment, and widely used in the residential premises, business building and villas.

The small fiber termination box comes with 2 outlet ports which providing optical interface for connecting the subscriber’s patch cable. It is of ABS plastic providing protection for drop cable and pigtail, internal routing allows for the slack management and reasonable fiber bend radius, 3 cable access inlets from fiber enclosure bottom and sides which gives a high flexibility of FTTH internet installation.

The fiber wall plate supports termination, splicing, and optical fiber storage fuctions, which can accommodate 2 sc simplex or lc duplex adapter, up to 4 cores termination and splice.

fiber optic splice enclosure, passive plc splitter, patch cord, fibre closure, pigtail,launch cabe,ftth terminal box, optical termination box, distribution panel, wall mount fiber junction box，sc/fc/st/lc/e2000 adapter, jumper

Features：

. Made of high quality plastic

. Supports factory terminated assemblies

. Adapter holder for easy installation

. Push type cover is convenient for maintenance

. Small size taking up minimal wall space

Specification:

Size (mm)	20511535
Weight(kg)	0.24
Cable inlet/outlet	3/2
Cable Diameter (mm)	Φ3~Φ7 mm
Max splice capacity	4 cores (single)
Suitable adapter	SC, LC
Lead time	7 days for 100pcs, 20 days for 300pcs
MOQ	100 pcs
