16 Port FTTH Distribution Box For Plug-in Splitter, 24 Core Splices

The 16 port FTTH distribution box is wall-mounted enclosure that can install one 1×16 cassette PLC splitter to realize the connection between feeder cable and drop cable in fiber optic network; It enables the direct connection, branch connection and terminal connection. The plastic unit has the functions of splicing, splitting, distribution and optical cable management; and it is also excellent for protecting fiber optic cable and pigtail. The wall mount fiber enclosure is mainly used for the end termination in apartment, residential & commercial building, villas in the fiber access network.

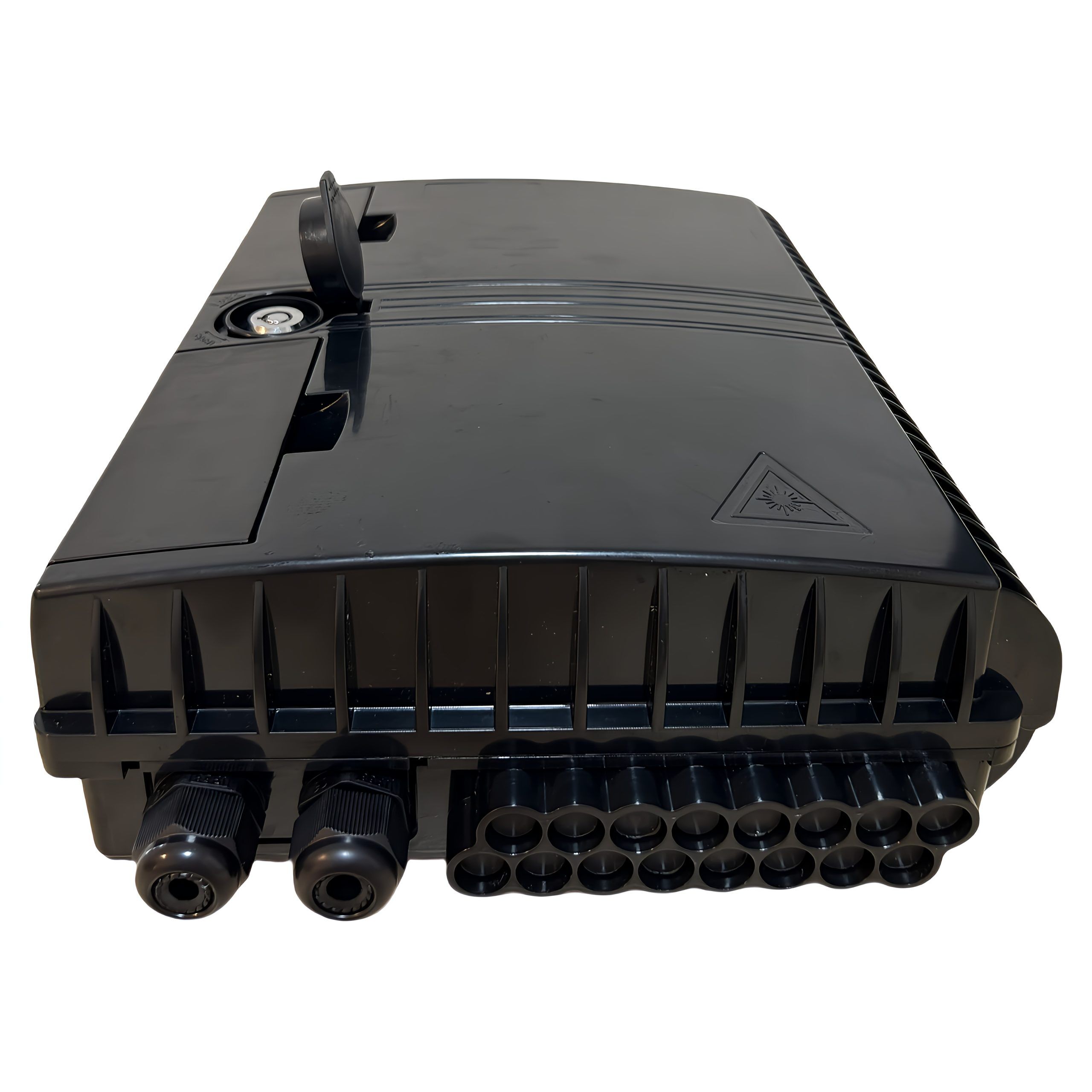

This optical distribution box comes with two input and 16 output ports that is designed for splitting, distributing, and managing optical fibers in FTTH, FTTB network.  It is of engineering plastic that gives strong protection for splice and termination; the anti-theft lock provides extra security; dual-layer design is easy for installation and maintenance, lower layer for splicing, and upper layer for distribution and light splitting. The FTTH splitter box is waterproof and suits indoor and outdoor environments, and accommodate max a 1×16 plug-in splitter, 16 fiber termination and 24 cores fusion splice.

Features:

. High-strength engineering plastics construction

. Easy for installation and maintenance

.  Lockable cover  for safety

Technical parameter:

. Optical fiber radius of curvature:≥40mm

. Splice tray additional loss：≤0.01dB

. Temperature Range: – 40°C ~ + 60°C

. Compressive strength: ＞500N

Specification：

Size (mm)	300*240*98
Weight(kg)	1.45
Cable inlet/outlet	2/16
Cable dia (mm)	Φ6~Φ18
Max splice capacity	24 cores (single)
Max splitting	1:16 or 1:8
Lead time	7 days for 100pcs, 20 days for 300pcs
MOQ	100 pcs
