Picking the right patch panel is important for a strong network. Wall mount panels are small and save space. Rack mount panels are better for bigger networks and can grow with them. Each type has its own purpose, helping with smooth connections and neat cables. Fiber Patch Panels are key in today’s networks. They keep cables organized and protect them from harm. These panels improve how networks work, making them flexible and long-lasting. They are a must-have for future setups.
“Our customers said patch panels with rear-facing MPOs and badly labeled LC ports were hard to use. They couldn’t find better options in stores. That’s when we realized we could help,” said Darren Yuet, Marketing Manager.
Key Takeaways
Pick wall mount patch panels for small networks. They save room and are simple to set up.
Choose rack mount patch panels for big or growing networks. They are more organized and can expand easily.
Fiber patch panels improve network speed by keeping cables neat and lowering signal loss.
Think about future needs when picking a patch panel. Scalable options can save money later.
Think about setup and upkeep. Wall mount panels are easier, but rack mount panels need more planning.
Understanding Wall Mount Patch Panels
Design and Features
Wall mount patch panels are small and attach to walls. They work well in places with little space. These panels are strong and protect cables from damage. They support both T568A and T568B wiring, making them flexible for networks.
Key features include:
Strong plug-to-jack connections for better performance.
Easy rear wiring with 110-type connectors for quick setup.
Built-in cable management to keep cables neat and safe.
Specification | Details |
---|---|
Category | 6 |
Ports | |
Dimensions | 10″ x 1.75″ |
Standards | ANSI/TIA 568-2.D, EIA-310-E |
Compliance | RoHS, UL listed, TAA compliant |
These panels work with CAT6 cables and have numbered ports. This makes setting up and fixing networks easier.
Common Applications
Wall mount patch panels are useful in many places. In data centers, they organize cables connecting servers and switches. This setup lowers mistakes, makes changes easier, and helps big systems grow.
Environment | Application | Benefits |
---|---|---|
Data Centers | Organizes cables connecting servers and switches | Lowers errors, makes changes simple, and helps systems grow. |
Small Businesses | Affordable way to improve network setup | Central hub makes adding devices easy without major rewiring. |
For small businesses, these panels are a cheap way to organize networks. They centralize connections, making it simple to add devices without much rewiring.
Advantages
Wall mount patch panels have many benefits for your network:
Cable organization: They keep Ethernet cables tidy and easy to manage.
Flexibility and scalability: You can change setups without running new cables.
Improved network performance: They reduce signal problems, making networks work better.
Simplified troubleshooting: Labeled ports help you fix issues faster.
Increased reliability: Good cable connections lower downtime from bad links.
Space-saving design: Wall-mounted panels save floor space in small areas.
By keeping connections in safe spots, these panels improve security. They also protect cables and prepare your network for future upgrades.
💡 Tip: If you don’t have much space, wall mount patch panels are great for keeping your network neat and working well.
Limitations
Wall mount patch panels have good points, but they also have downsides. Knowing these can help you decide if they fit your network.
Limited Port Capacity
Wall mount panels hold fewer ports than rack mount ones. This makes them less ideal for big networks or places needing many connections. If your network grows fast, you might need more panels sooner.Restricted Scalability
Growing your network with wall mount panels can be hard. Their small size limits how many cables they can handle. If your business plans to expand a lot, you may need to replace them often.Space Constraints for Maintenance
Wall mount panels save space but can make repairs harder. Tight spaces can slow down fixing or changing cables. This is especially tricky in crowded setups.Weight and Wall Support Requirements
These panels need strong walls to stay in place. Weak walls might need extra support, making setup harder.
💡 Note: Wall mount panels are best for small networks with little growth. For bigger networks, rack mount panels are better for expanding easily.
Think about these limits and your network needs before choosing. Always plan for both current and future requirements when picking a patch panel.

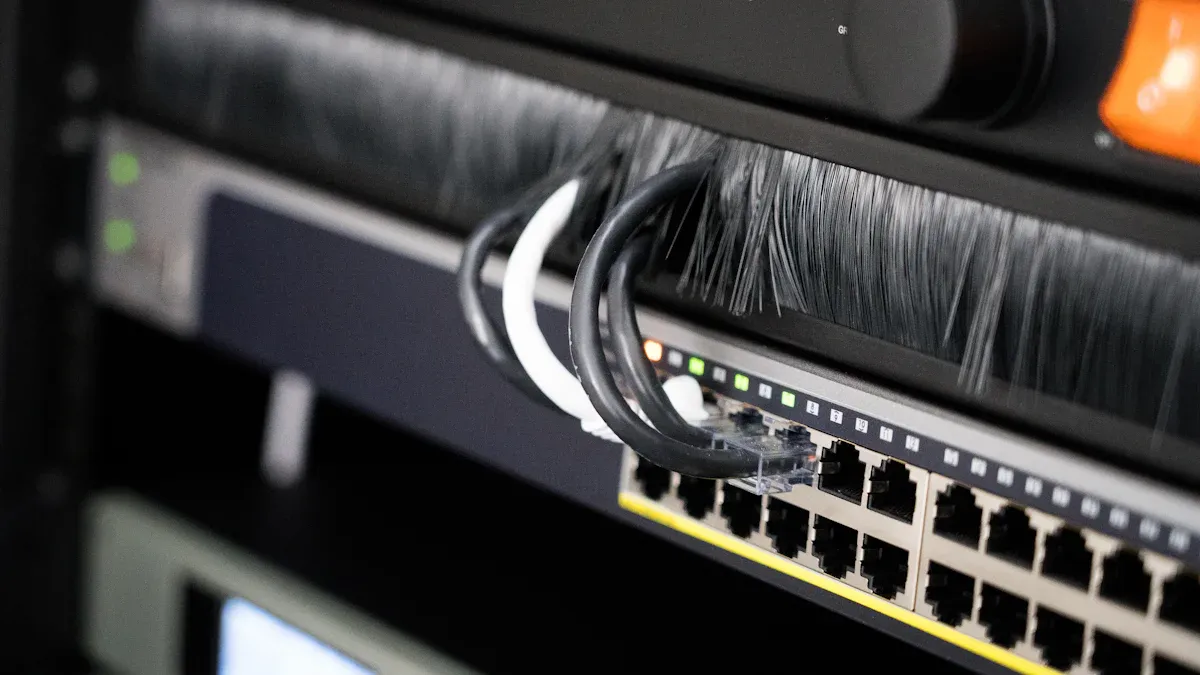

Understanding Rack Mount Patch Panels

Design and Features
Rack mount patch panels are made for big networks. They fit into standard 19-inch racks and cabinets. These panels are strong, often built with thick steel and a black coating. This makes them last a long time. They help organize cables by letting them enter from different sides. This makes routing and organizing cables simple.
Key features include:
Easy to rearrange cables without touching other equipment.
Protects ports by reducing direct device connections.
Works with Cat5e/6/6a, fiber optic, audio/video, and universal panels.
Rack mount panels improve networks by centralizing connections. They lower signal loss and make systems more reliable. Their design supports dense setups, perfect for data centers and large networks.
💡 Tip: For growing networks, rack mount panels are flexible and durable.
Common Applications
Rack mount patch panels are important in today’s networks. They make cables neat, improve setup, and boost connections. Here are some common uses:
Data Centers: Organize many cables for easy routing and maintenance.
Telecommunications: Group connections to improve performance and reduce signal issues.
Enterprise Networks: Handle lots of Ethernet and fiber cables for big systems.
Audio/Video Systems: Connect multimedia devices smoothly.
Environment | Benefits |
---|---|
Data Centers | Keeps cables tidy, reduces mess, and improves cooling. |
Telecommunications | Protects ports, extends device life, and simplifies cable setup. |
Enterprise Networks | Groups connections, lowers upkeep costs, and supports growth. |
Rack mount panels also work with smart tech, helping businesses meet IT needs.
Advantages
Rack mount patch panels have many benefits for modern networks:
Better Cable Management: Keeps cables neat and organized.
Less Clutter: Hides cables, improving airflow and safety.
More Flexibility: Makes changes easy without major rewiring.
Improved Security: Groups connections for better control.
Lower Costs: Uses shorter, cheaper cables.
Easier Fixes: Centralized setup helps with quick repairs.
Performance Metric | Description |
---|---|
Better Cable Management | Keeps cables tidy, reducing mistakes during repairs. |
Less Clutter | Looks better and improves airflow and safety. |
More Flexibility | Allows quick network changes without stopping work. |
Improved Security | Separates network areas for better control and safety. |
Lower Costs | Saves money by using shorter cables. |
Easier Fixes | Speeds up repairs and keeps records simple. |
Rack mount panels are great for businesses needing strong, flexible, and affordable network setups.
🔧 Pro Tip: Use good racks and cabinets with these panels for the best results.
Limitations
Rack mount patch panels are helpful but have some downsides. Knowing these can help you decide if they suit your network.
Space Needs
Rack mount panels need racks or cabinets to hold them. These take up a lot of floor space. Small offices or rooms may struggle to fit them.Higher Costs
Rack mount panels cost more than wall mount ones. You also need racks, cabinets, and sometimes cooling systems. This can be expensive for small businesses.Harder to Install
Installing rack mount panels takes planning and skill. You must align them in the rack and organize cables well. Without experience, setup can take longer and lead to mistakes.Tough Maintenance
Rack mount panels make cables neat but can be hard to maintain. In crowded racks, reaching cables for repairs or upgrades can be tricky.
💡 Tip: Plan your space and budget before choosing rack mount panels. Good planning helps you get the best results.
Cooling Problems
Packed racks with many panels create heat. You might need extra cooling to keep things running well. This adds to the cost and setup difficulty.
Think about these limits and your needs before deciding. Rack mount panels work best in places with enough space, skilled workers, and plans for growth.

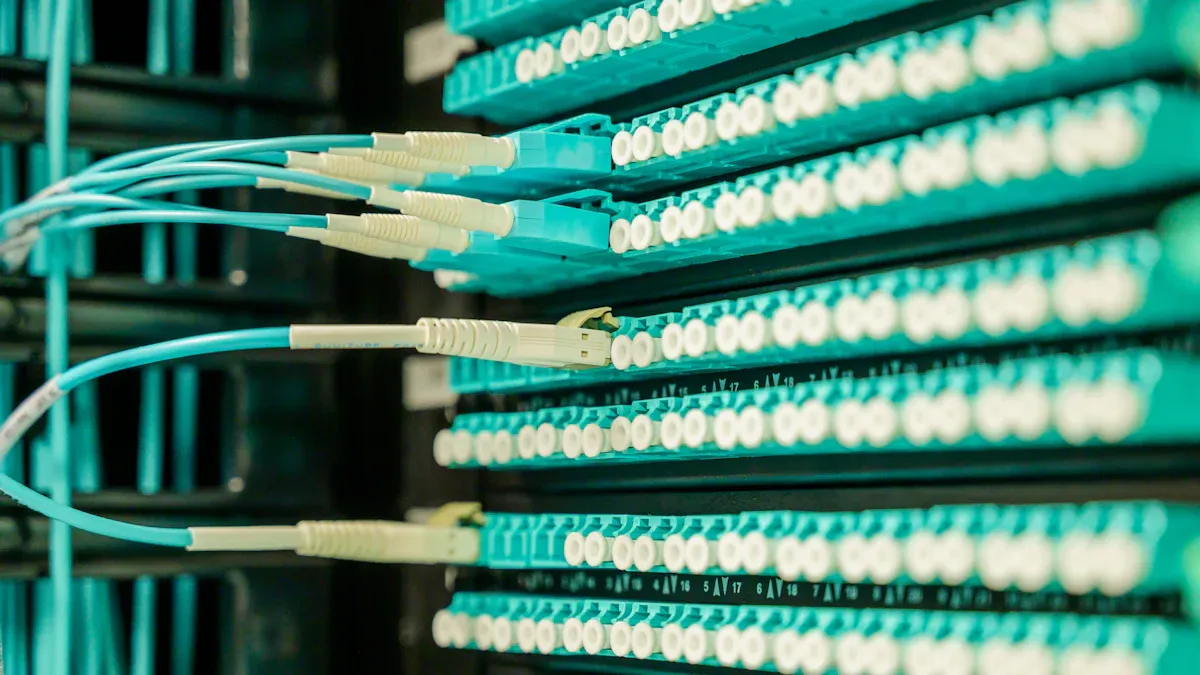

Fiber Patch Panels in Modern Networks

Role in Cable Management

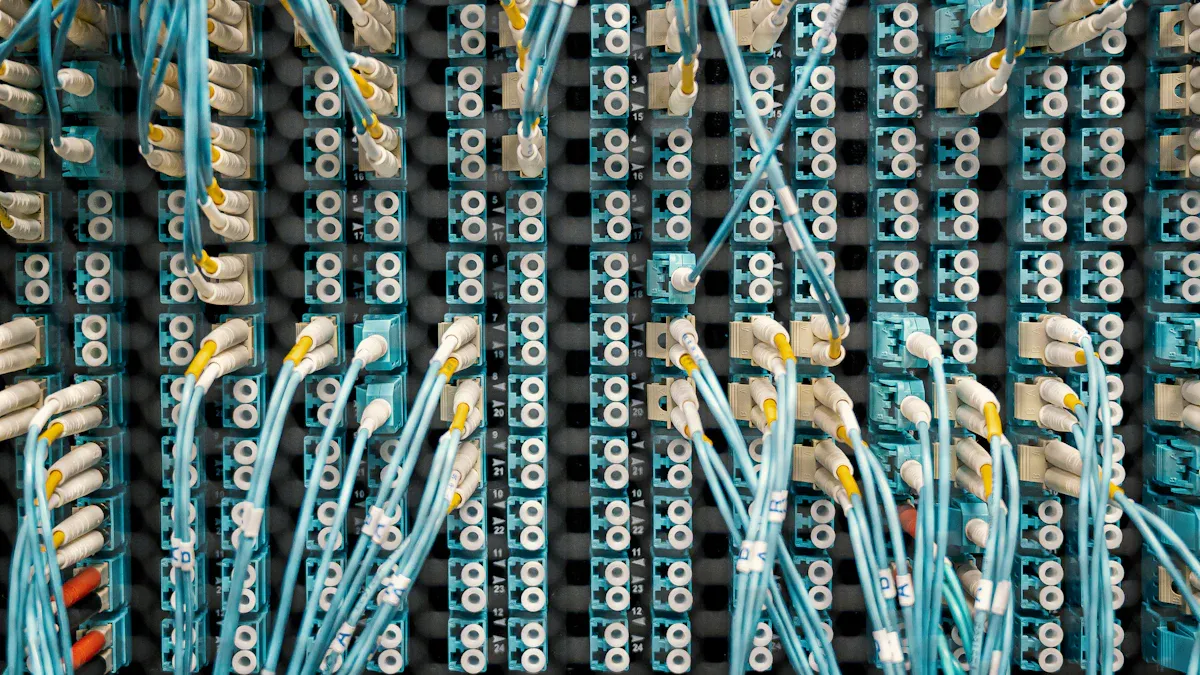

Fiber Patch Panels help organize and manage many cables. They act as a central spot where cables connect. This makes routing, labeling, and fixing cables easier. Good cable management stops messes, avoids tangles, and keeps networks running well.
To manage cables well, follow these steps:
Planning: Write down details before making any changes.
Preparation: Use clean, high-quality cords in good shape.
Patching: Make sure cables are straight and connected properly.
Validation: Check everything visually and update your records.
By doing these steps, your network will stay reliable and work smoothly.

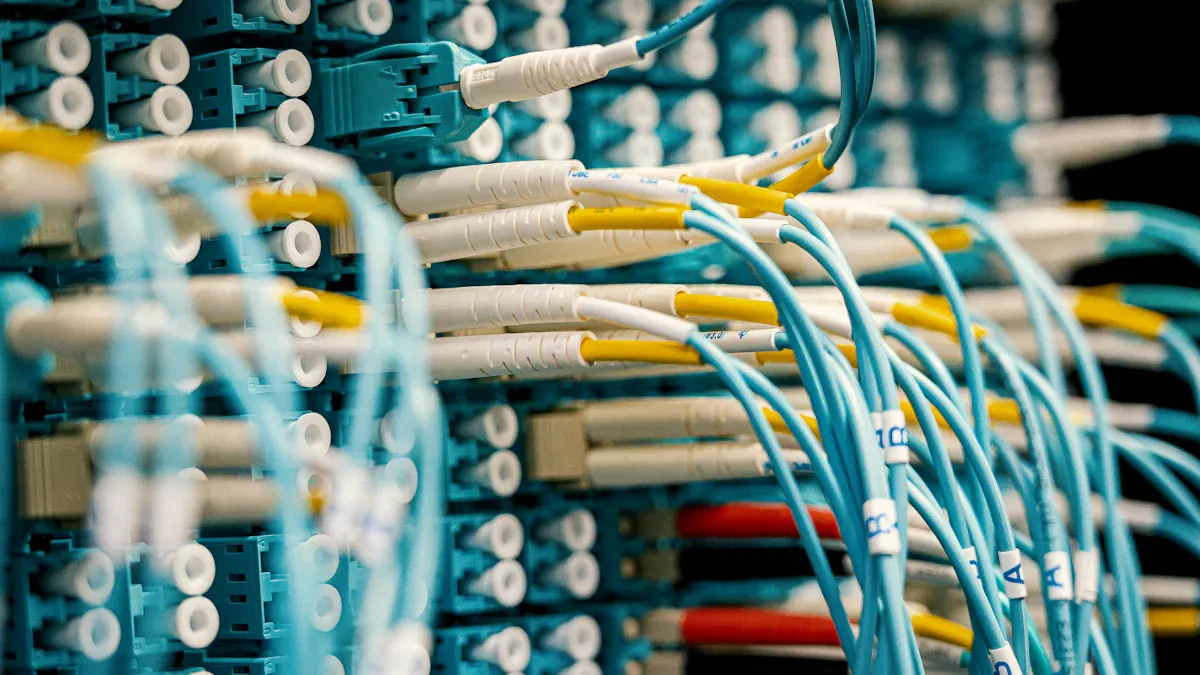

Types of Fiber Patch Panels
There are different Fiber Patch Panels for various needs. Each type has special features and uses:
Type of Fiber Patch Panel | Description |
---|---|
Rack-Mount Fiber Patch Panels | Fit into 19-inch racks, great for data centers with many ports. |
Wall-Mount Fiber Patch Panels | Attach to walls, perfect for small networks or remote spots. |
DIN-Rail Mount Fiber Patch Panels | Used in factories or tight spaces, even outdoors. |
Enclosure Fiber Patch Panels | Work in tough places, offering flexible mounting options. |
Slide-Out Fiber Patch Panels | Slide out for easy fixes and upgrades to fiber cassettes. |
Topfiberbox offers many Fiber Patch Panels, like the 12 Port Fiber Patch Panel and the 120 Port 19” 1U Ultra High Density MPO Fiber Patch Panel. These fit both small and large networks.
Explore Our Fiber Optic Patch Panels
Discover a range of options tailored for your network needs. Upgrade your setup today!
Benefits for 2025 Installations
Fiber Patch Panels are key for future networks. They handle lots of connections, perfect for 5G and IoT growth. Their designs let you expand without big changes. Better connectors improve signals and lower signal loss, keeping performance high.
Main benefits include:
Modular designs make networks easier to grow.
Better signal quality with less signal loss.
Made with eco-friendly materials for sustainability.
With Topfiberbox’s Fiber Patch Panels, you can build a strong, efficient, and green network system.
Comparing Wall Mount and Rack Mount Patch Panels

Installation Requirements
When setting up a patch panel, think about what each type needs. Wall mount panels are easier to install and need fewer tools. You can screw them onto a wall or sturdy surface. For extra support, use an 89D bracket on a wood board or wall studs. Always check for wires with a stud finder before drilling. After securing the bracket, attach the panel and guide cables through the holes. Labeling cables before cutting helps you identify them later.
Rack mount panels need a standard 19-inch rack or cabinet. Align the panel in the rack and secure it with screws. Plan cable paths carefully to avoid crowding. Most rack mount panels come with screws and brackets to make installation easier. Both types should meet industry standards like ANSI/TIA 568-2.D and EIA-310-E for safety and compatibility.
Specification Type | Details |
---|---|
Standards | ANSI/TIA 568-2.D, EIA-310-E, FCC part 68-F, IEC 60603-7 |
Compliance | RoHS compliant, UL listed, TAA compliant |
Mounting Hardware | Includes screws and drywall anchors |
💡 Tip: Leave at least five feet of extra cable to make future fixes easier.
Space and Scalability
The space you have and how much your network might grow are important. Wall mount panels are good for small networks or tight spaces. They attach to walls, saving floor space. But they hold fewer ports, so they’re not great for growing networks.
Rack mount panels work better for bigger setups. They fit into racks, letting you stack multiple panels together. This design handles lots of cables and makes it easy to expand. If your network will grow, rack mount panels let you add connections without big changes.
Rack mount panels are best for large networks with many panels.
Wall mount panels are better for small networks or tight spaces.
Think about your space and future needs before choosing.
🔧 Pro Tip: If your network will grow, pick rack mount panels to avoid replacing them often.
Cooling and Cable Management
Good cooling and cable management keep networks running well. Wall mount panels are small, so cables can get crowded. This makes organizing harder and limits airflow. Plan your cable paths and use ties or straps to keep things neat.
Rack mount panels are better for cooling and managing cables. Their design lets cables enter from different sides, reducing clutter. Organized cables prevent tangles and help airflow. In big setups, use a cross-connect strategy to keep cables neat and working well.
Messy cables block airflow and make fixing harder.
Neat cables improve cooling and save time during repairs.
A clear cable plan is key for large networks.
💡 Note: Planning and keeping cables organized saves time and money later.
Cost and Future-Proofing
When picking between wall mount and rack mount patch panels, think about cost and future needs. Each type has different prices and benefits. Let’s look at the details to help you decide.
Initial Costs
Wall mount panels cost less. They need fewer materials and are easy to install. This makes them a good choice for small networks or businesses with tight budgets. You can set them up without buying racks or cabinets.
Rack mount panels cost more upfront. You’ll need to buy racks or cabinets, which adds to the price. But they offer more features and can grow with your network, making them better for larger setups.
Type | Initial Cost | Extra Equipment Needed |
---|---|---|
Wall Mount Panels | Lower | Minimal |
Rack Mount Panels | Higher | Racks, cabinets, and cooling |
💡 Tip: For small budgets, wall mount panels are a smart choice. For bigger networks, rack mount panels are worth the higher cost.
Maintenance and Operational Costs
Wall mount panels are simple to maintain in small networks. Their small size means less cable management is needed. But as your network grows, managing many wall mount panels can take more time and money.
Rack mount panels cost more to maintain at first. However, they save money later for large networks. Their design makes managing cables easier and reduces mistakes. This lowers costs over time.
Future-Proofing Your Network
Future-proofing helps your network handle growth and new tech. Wall mount panels work well for networks that won’t grow much. But their small size and limited ports make them less ideal for fast-growing businesses.
Rack mount panels are great for future-proofing. You can add more panels as needed. They also support new tech like 5G and IoT. Spending more on rack mount panels now can save you from costly upgrades later.
Feature | Wall Mount Panels | Rack Mount Panels |
---|---|---|
Scalability | Limited | High |
Support for New Tech | Moderate | Excellent |
Long-Term Value | Lower | Higher |
🔧 Pro Tip: If your network will grow or use advanced tech, rack mount panels are the better choice.
Balancing Cost and Value
The right patch panel depends on your budget and network needs. Wall mount panels are great for small, simple networks. They are affordable and reliable. Rack mount panels cost more but are better for growing or complex networks. Their features and flexibility make them a good investment.
💡 Note: Think about both your current needs and future plans. Spending a bit more now can save you money later.
By considering these points, you can choose a patch panel that fits your budget and prepares your network for the future.
Choosing the Right Patch Panel for 2025

Key Factors to Consider
Picking the right patch panel depends on a few things. First, check your network size. Small networks do well with wall mount panels. Big networks need rack mount panels to grow easily. Next, think about space. Wall mount panels save floor space and fit tight areas. Rack mount panels need racks or cabinets, which take up more room.
Look at how much your network might grow. If it will expand, pick a scalable option. Rack mount panels let you add connections without big changes. Wall mount panels are better for networks that won’t grow much. Also, think about your budget. Wall mount panels cost less at first. Rack mount panels cost more but are better for growing networks.
Keep cable management in mind. Neat cables make fixing problems faster and easier. Fiber Patch Panels help keep cables tidy and safe. This makes networks work better and last longer. By thinking about these points, you can pick a patch panel that fits your needs and prepares your network for the future.
💡 Tip: Plan ahead for growth when choosing a patch panel. Scalable options save time and money later.
Emerging Trends in Patch Panel Technology
The way patch panels work is changing fast. New technology and growing network needs are driving these changes. Knowing these trends can help you pick the right panels for 2025 and make your network ready for the future.
AI and Automation in Patch Panels
AI and automation are making patch panels smarter. These panels now track cables and monitor networks automatically. This helps avoid mistakes and keeps networks running smoothly. For example, they can spot problems quickly so you can fix them before they get worse. These smart features make managing even big networks easier and more reliable.
💡 Did You Know? Smart cities and growing tech needs are increasing demand for automated patch panels. These systems save time and make managing networks more efficient.
Miniaturization and Improved Materials
Smaller, better patch panels are becoming popular. New materials allow panels to fit tight spaces while still working well. These compact panels are perfect for crowded places like data centers. They save space and keep cables neat.
These smaller panels also use less energy and stay cooler. This makes them a good choice for businesses that care about the environment and saving energy.
High-Speed Data Transmission for 5G and IoT
With 5G and the Internet of Things (IoT), faster data speeds are needed. Modern patch panels now handle more data and higher speeds. Fiber optic panels are especially useful because they send data quickly with little signal loss.
If your network will use 5G or IoT, choose panels made for these technologies. They can handle more devices and process data faster, keeping your network ready for the future.
Growth of Electronic Patch Panels
Electronic patch panels are becoming more common. They include features like remote monitoring and automatic problem detection. These panels make managing networks easier and faster. As data centers grow, electronic panels are becoming a must-have for high-speed internet setups.
🔧 Pro Tip: Pick electronic patch panels with modular designs. You can upgrade or expand your network without replacing everything.
Sustainability and Eco-Friendly Designs
Eco-friendly patch panels are now a focus for manufacturers. They use recyclable materials and energy-saving parts. Choosing these panels helps the environment and saves money over time.
These trends show why it’s important to stay updated on patch panel technology. By using innovations like AI, smaller designs, and faster connections, you can build a network ready for 2025 and beyond.
💡 Note: Buying future-ready patch panels now keeps your network efficient, flexible, and eco-friendly for years to come.
Deciding between wall mount and rack mount patch panels depends on your network’s size, available space, and future growth. Wall mount panels are compact and simple to set up. Rack mount panels, however, are better for larger networks and offer more cooling options. Here’s a quick comparison:
Criteria | Rack-Mount Panels | Wall-Mount Panels |
---|---|---|
Space Needs | Needs more room | Fits in smaller spaces |
Customization | Offers many size options | Limited customization |
Cooling | Includes built-in cooling features | May not cool as well |
Installation | Harder to set up | Quick and easy to install |
To prepare for the future, fiber patch panels are a smart choice. They keep cables organized and handle fast data speeds, making your network ready for 2025.
💡 Tip: Think about your current setup and future plans before picking a patch panel.
FAQ
1. What’s the key difference between wall mount and rack mount patch panels?
Wall mount panels go on walls and save space. Rack mount panels fit in racks and handle bigger networks. Wall mount panels are best for small setups, while rack mount panels are better for growing systems.
2. How do fiber patch panels help networks work better?
Fiber patch panels keep cables neat and lower signal loss. They make data flow smoothly and fixing problems easier. Their design allows upgrades, keeping networks ready for the future.
3. Can wall mount panels work for expanding networks?
Wall mount panels are good for small networks that won’t grow much. For fast-growing networks, rack mount panels are better because they can expand easily.
4. Are rack mount panels harder to set up?
Rack mount panels need racks or cabinets, so setup takes more effort. With the right tools and planning, you can install them well. Wall mount panels are quicker to install.
5. Which patch panel type costs less?
Wall mount panels are cheaper upfront and work for small networks. Rack mount panels cost more at first but save money later by supporting growth and new tech.
💡 Tip: Pick a patch panel based on your network size, budget, and future plans.
