Outdoor Fiber Optic Distribution Box With 8 Ports, 8 Splices

$10.20

Wall or Pole Mount, Waterproof , Indoor Outdoor Use

Model: FODB-0208A
Material: ABS or ABS+PC
Protection level up to IP65
Can pre-install 1×8 PLC splitter, pigtail or adapter
Easy to maintain and install
Free sample is available

Minimum order quantity: 100 pcs.
Shipping cost not included.
Please CONTACT for a quote on larger quantities.
A sample is free of charge, but freight fee is on your account.

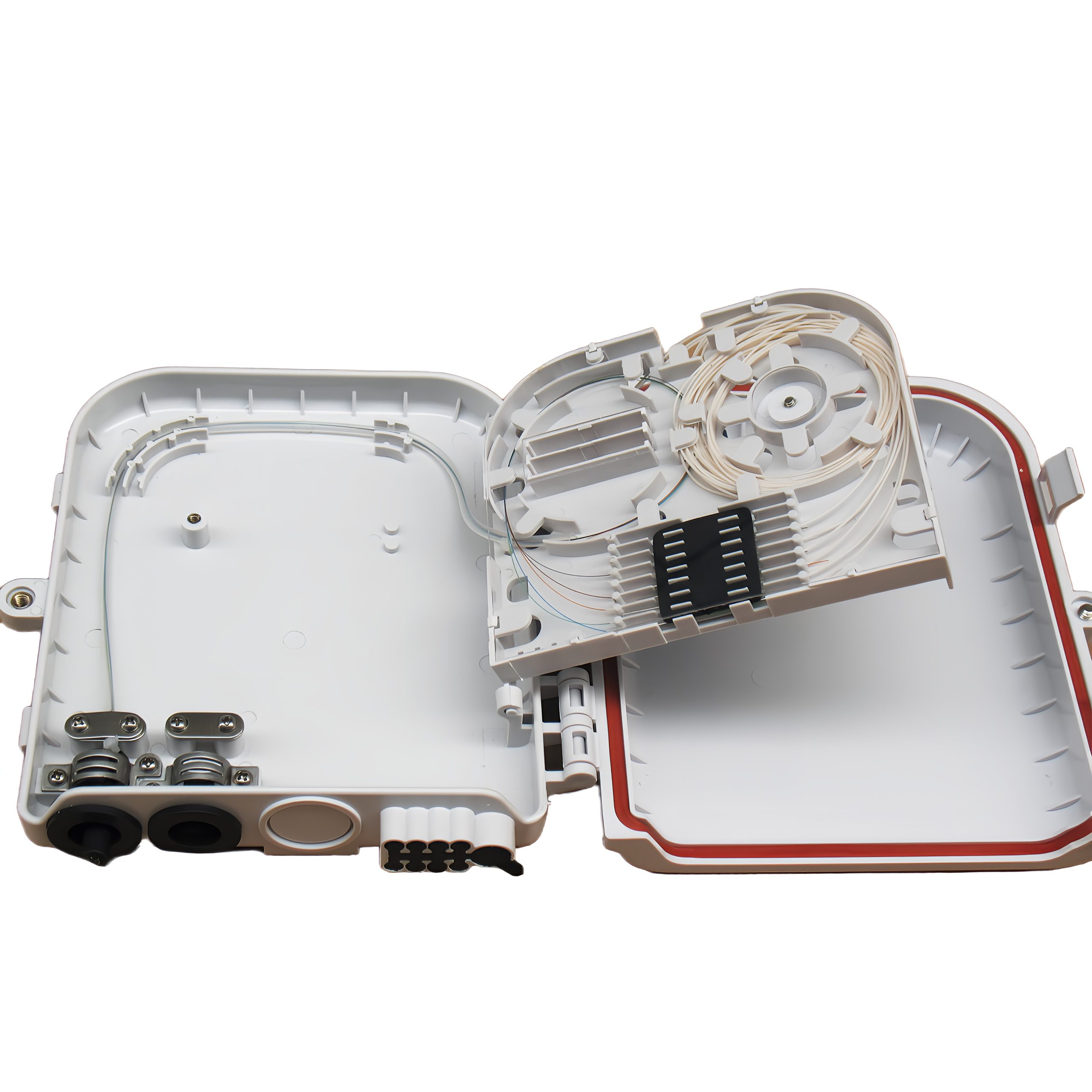

The module is a termination box used for the connection between distribution cable and drop cable, which easily accommodates 1 mini fiber optic splitter, 8 splices and 8 SC ports. It offers the functions of fiber mechanical/fusion splicing, splitting, and distribution, and suits indoor and outdoor environments. The box adapts to a variety of optical connection systems that can realize the cable direct or branch connection and the terminal access of 8 subscribers, and widely used in the FTTH network project for the end termination of residential, business buildings, and villas.

This fiber optic distribution box comes with 2 input and 8 output ports, which is ideal for FTTH,FTTB systems. It is made of good ABS plastic that protects the connection of optical cable and pigtail; screw lock provides extra security; traditional two-layer design saves space and easy for installation and maintenance, one area for storage and splicing, and a separate area for the management and the connection of the pigtails to the internal adapters. The unit is suitable for wall mounted or pole mounted installation and can hold up to 8 cores termination.

fiber optic splice enclosure, passive plc splitter, patch cord, fibre closure, pigtail,launch cabe,ftth terminal box, optical termination box, distribution panel, wall mount fiber junction box，sc/fc/st/lc/e2000 adapter, jumper

Features:

. High-quality plastics with UV and impact resistance

. Standard user interface

. Unique and reversible tray providing easy operation

. Enough space for cable storage and fiber wiring

Specification:

Size (mm)	20521555
Weight(kg)	0.75
Cable inlet/outlet	2/8
Cable dia (mm)	≤Φ12
Max splice capacity	8 cores (single)
Max splitting	1：8
Lead time	7 days for 100pcs, 10 days for 800pcs
MOQ	100 pcs

Our Services

Fast Delivery

Delivery time is very important to the majority of customers, We try best to find an effective way to coordinate orders to arrive at your destination promptly.

Guaranty

All Fiber Termination Boxes/Enclosures have 2 years ( fiber optic component 1 year ) warranty. We will make a replacement if there are some Non-human damage during a period of warranty time.
