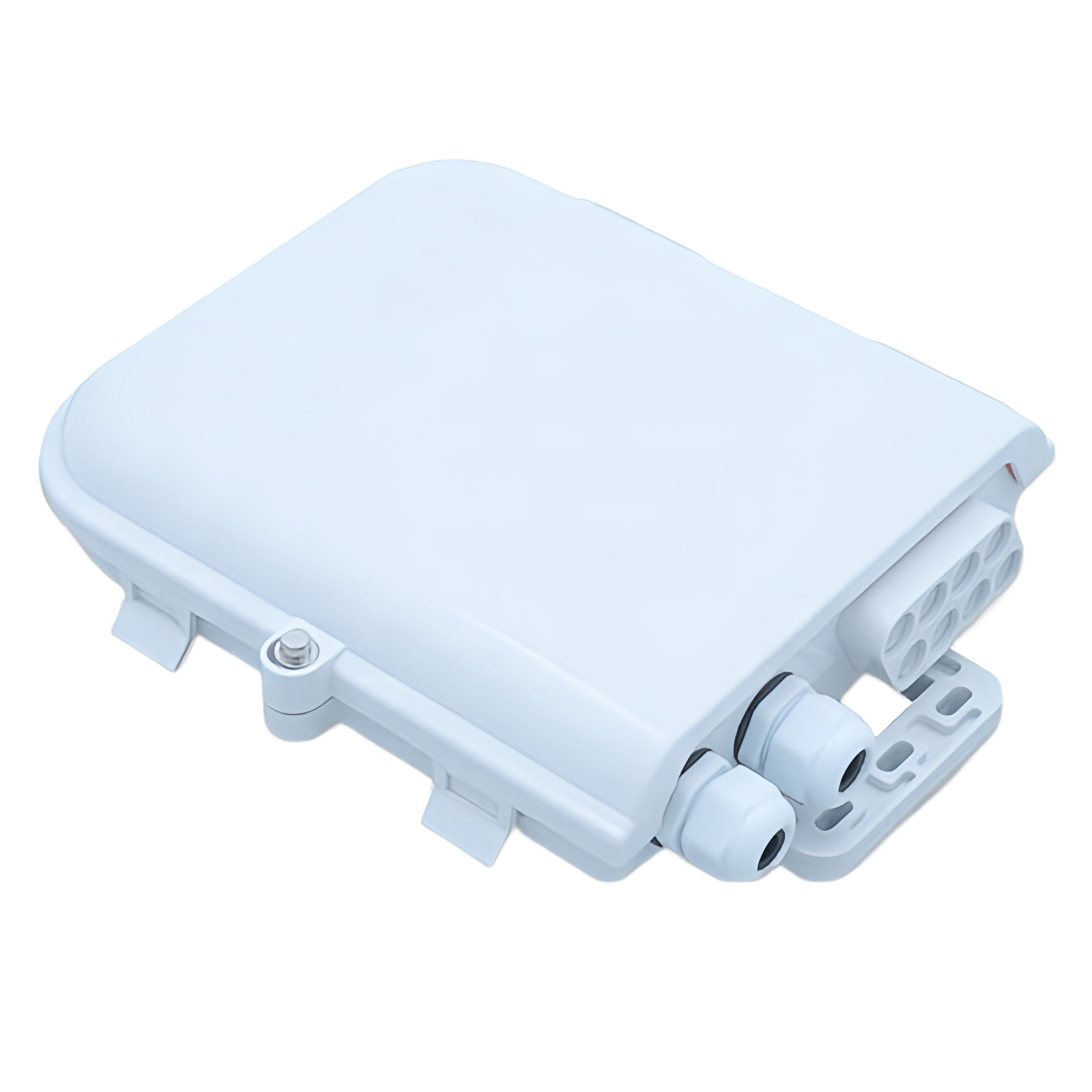

Outdoor 8 Port Fiber Distribution Box, 4 Cores Splice

$10.50

Wall or Pole Mounted, 2 in 8 out, Indoor Outdoor Use

Model: FODB-208B
Material: ABS or ABS+PC
Protection level up to IP65
Available to order 1×4, 1×8 splitter, pigtail, adapter seperately
Easy to maintain and install
Sample is available

Minimum order quantity: 100 pcs.
Shipping cost not included.
Please CONTACT for a quote on larger quantities.
A sample is free of charge, but freight fee is on your account.

The 8 port outdoor fiber distribution box is used to connect feeder cable in outside plant to drop cable in FTTHX network. It enables easy junction of drop cable by pre-connectorized drop cables into the box or splicing with pigtail, also allows for FTTH network terminal connection; and the internal connection through pre-terminated mini type splitter or pre-assembled pigtail. The compact unit integrates splicing, splitting, termination, distribution, wiring, and widely used in MDU, residential/business buildings, villas for wall mount or pole mount application.

This optical fiber distribution box is provided with 2 input and 8 output ports that can be closed and opened without disturbing the internet service to customer. It is of high-quality ABS plastic provides solid protection for splice and termination ; the screw lock provides extra security; two-layer design saves space and easy installation, upper for cable distribution, lower for splitting, splicing and wiring; the enclosure is a waterproof termination box for indoor or outdoor environments, it supports 1:8 max splitting and 4 cores splice.

Features:

. High-density plastics, UV/impact/water resistance

. Reasonable space for cable and pigtail splicing

. Flip design for adapter tray providing easy installation

. Screw type lock gives safety and convenience in operation

. Internal structure guides safe bend radius

fiber optic splice enclosure, passive plc splitter, patch cord, fibre closure, pigtail,launch cabe,ftth terminal box, optical termination box, distribution panel, wall mount fiber junction box，sc/fc/st/lc/e2000 adapter, jumper

Technical parameter:

. Optical fiber radius of curvature:≥40mm

. Splice tray additional loss：≤0.01dB

. Temperature Range: – 40°C ~ + 60°C

. Compressive strength: ＞500N

Specifications:

Size(mm)	20521562
Weight(kg)	0.75
Cable inlet/outlet	2/8
Cable dia (mm)	Φ6~Φ12
Max splice capacity	4 cores (single)
Suitable adapter	SC
Lead time	7 days for 100pcs, 10 days for 800pcs
MOQ	100 pcs

Our Services

Fast Delivery

Delivery time is very important to the majority of customers, We try best to find an effective way to coordinate orders to arrive at your destination promptly.

Guaranty

All Fiber Termination Boxes/Enclosures have 2 years ( fiber optic component 1 year ) warranty. We will make a replacement if there are some Non-human damage during a period of warranty time.
