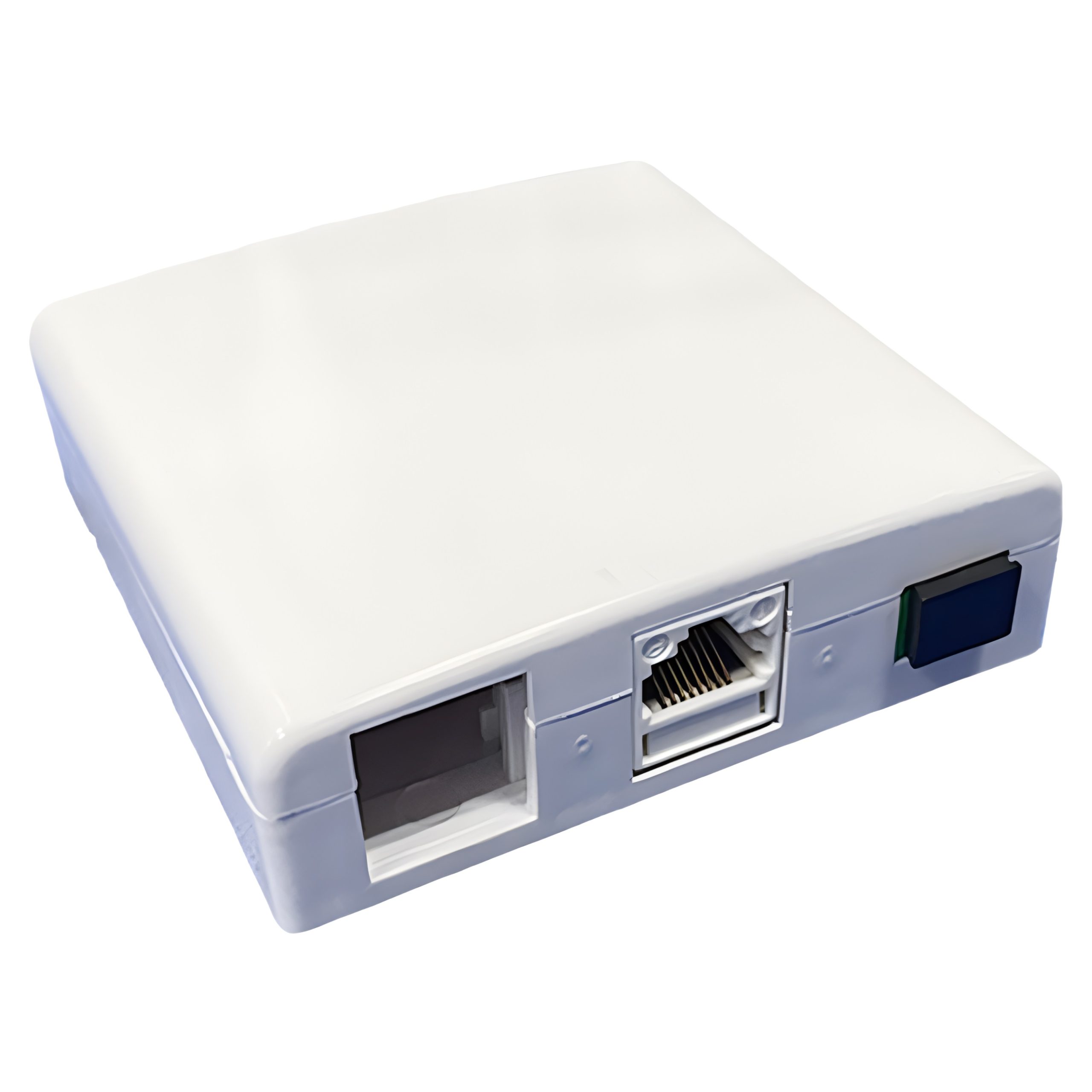

This is a 86 type fiber wall outlet box contains 3 ports, it is great for splicing and termination between indoor fiber optic cable and pigtail. It usually serves as decoration point for optical fiber in indoor wall mounted or surface mount application, which enables the fiber connection to the office or home internet box by pre-terminated jumper; the wall outlet faceplate integrates fiber splicing, termination and fiber pigtail fixation, widely used in apartment, residential buildings, villas, and small workplaces for FTTH, FTTB,FTTO,FTTD network.

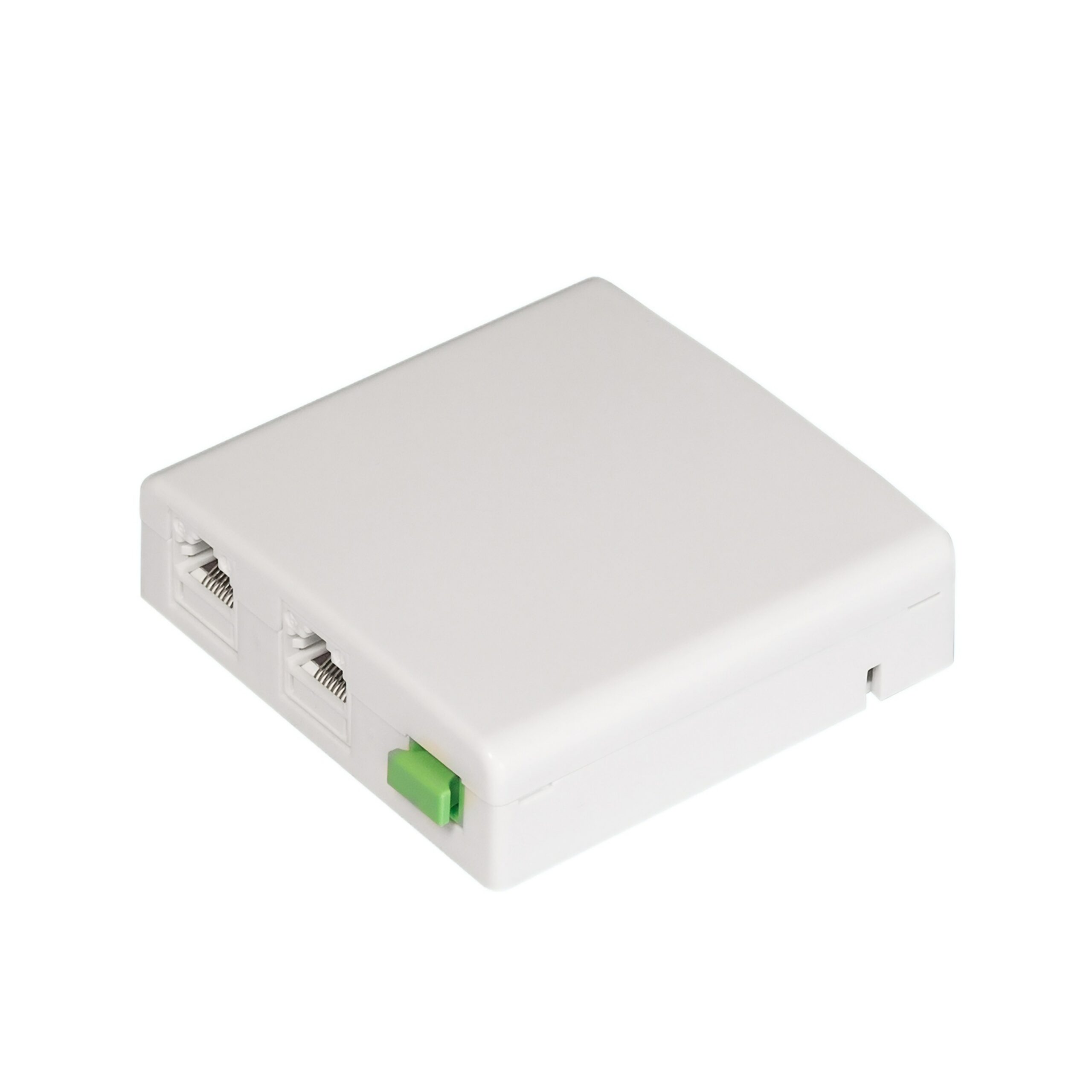

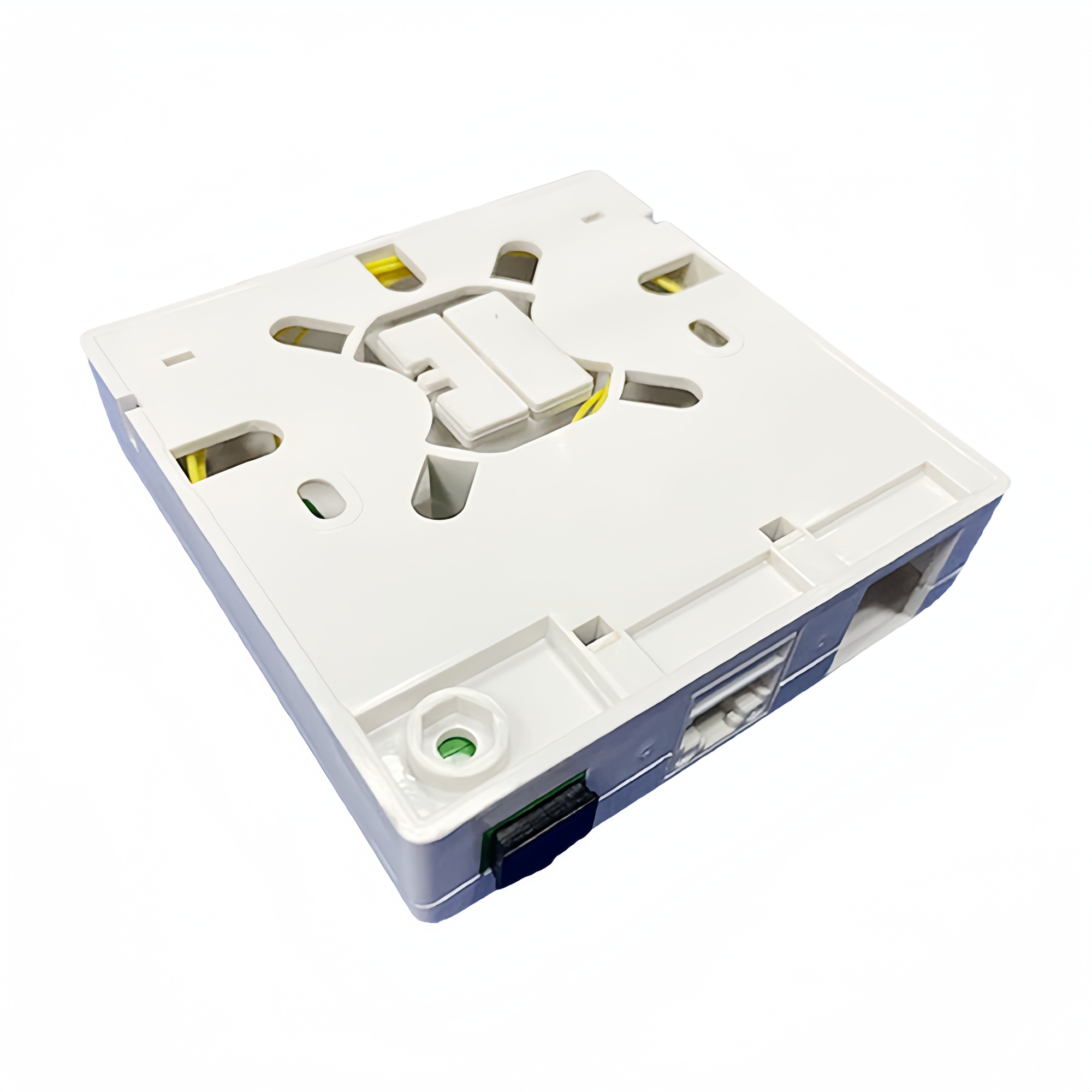

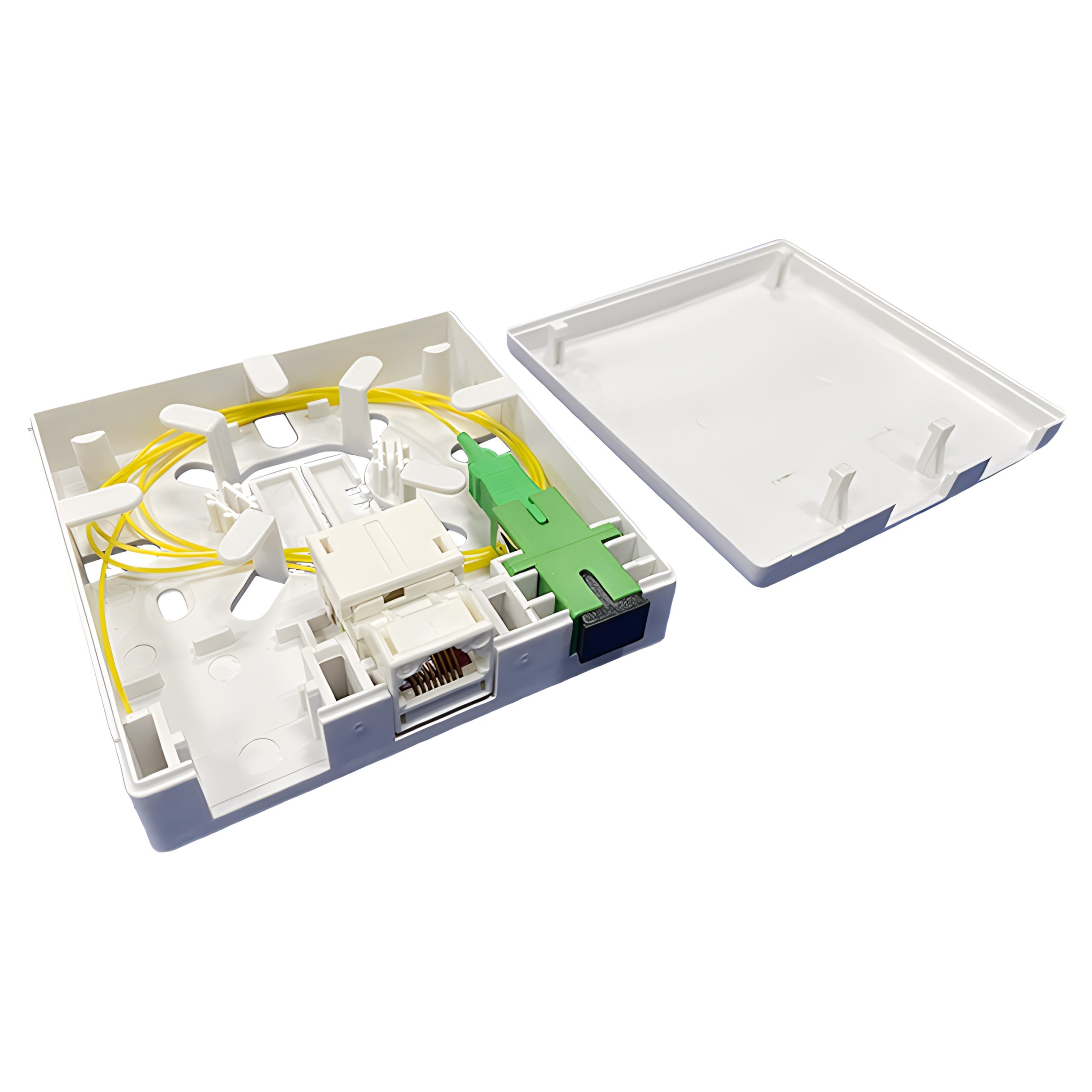

The 86-type wall mount faceplate features 1 external adapter outlet and 2 RJ45, supporting 1 cores splicing and termination. It is of ABS plastic that provides mechanical protection for optical cable and pigtail, removable cover and dust cap prevents the wall outlet termination box from dust, inner routing guides for simple fiber cable management, internal cable can enter from front, bottom or back of the module for flexible deployment.
Features:
. Made of ABS plastics or flame retardant ABS
. Small size taking up minimal wall space and lightweight
. Optical fiber management in a reasonable fiber radius condition.
. Removable cover is simple for operation and maintenance
. Equipped with dust-proof cap for unused port protection
Specification:
| Size (mm) | 86*86*25 |
| Weight(kg) | 0.051 |
| Cable inlet/outlet | 9/2 |
| Cable Diameter (mm) | Φ3mm or Drop cable(2*3mm) |
| Max splice capacity | 1 core(single) |
| Suitable adapter | SC, LC |
| Lead time | 7 days for 100pcs, 10 days for 800pcs |
| MOQ | 100 pcs |
