Hinged Type 2 Port Fiber Wall Outlet, 2 Cores Splicing
$0.89
Wall Mounting, 5 inlet 2 outlet, Indoor Use
- Model: FOTB-GPBH
- Material: ABS, Non-flame-retardant or Flame-retardant version
- Easy installation and maintenance
- Can be pre-installed with adapters and pigtails (sold separately)
- A Free Sample is available
FAST DELIVERY, FREE SAMPLES & 2-YEAR WARRANTY
- Note that this product has a minimum order quantity (50pcs). Please CONTACT sales for more information.
- Prices shown do not include shipping costs.
- The sample is provided free of charge. Freight charges will be quoted separately based on the delivery address

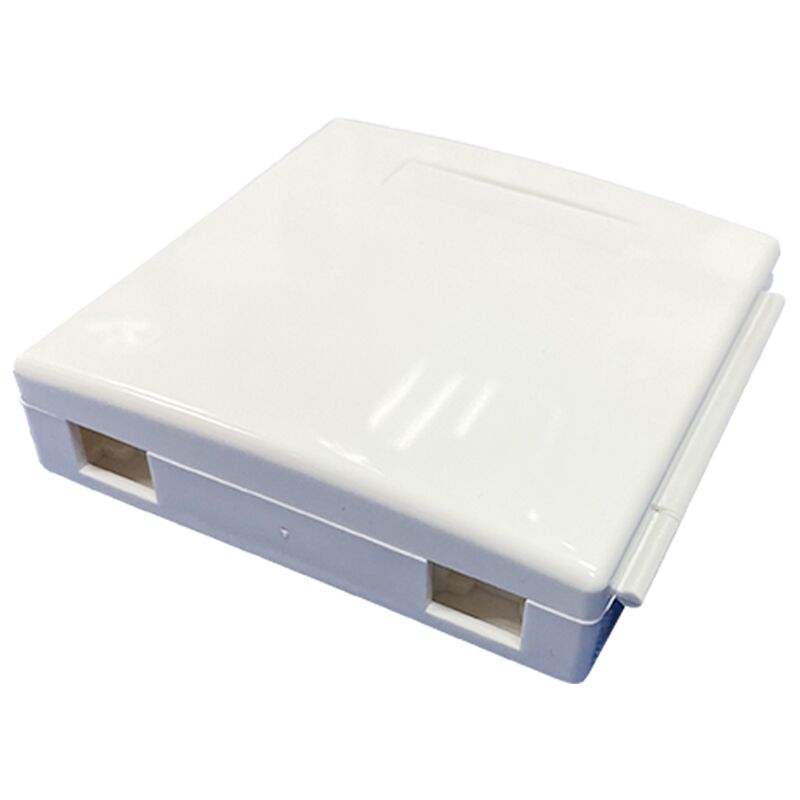

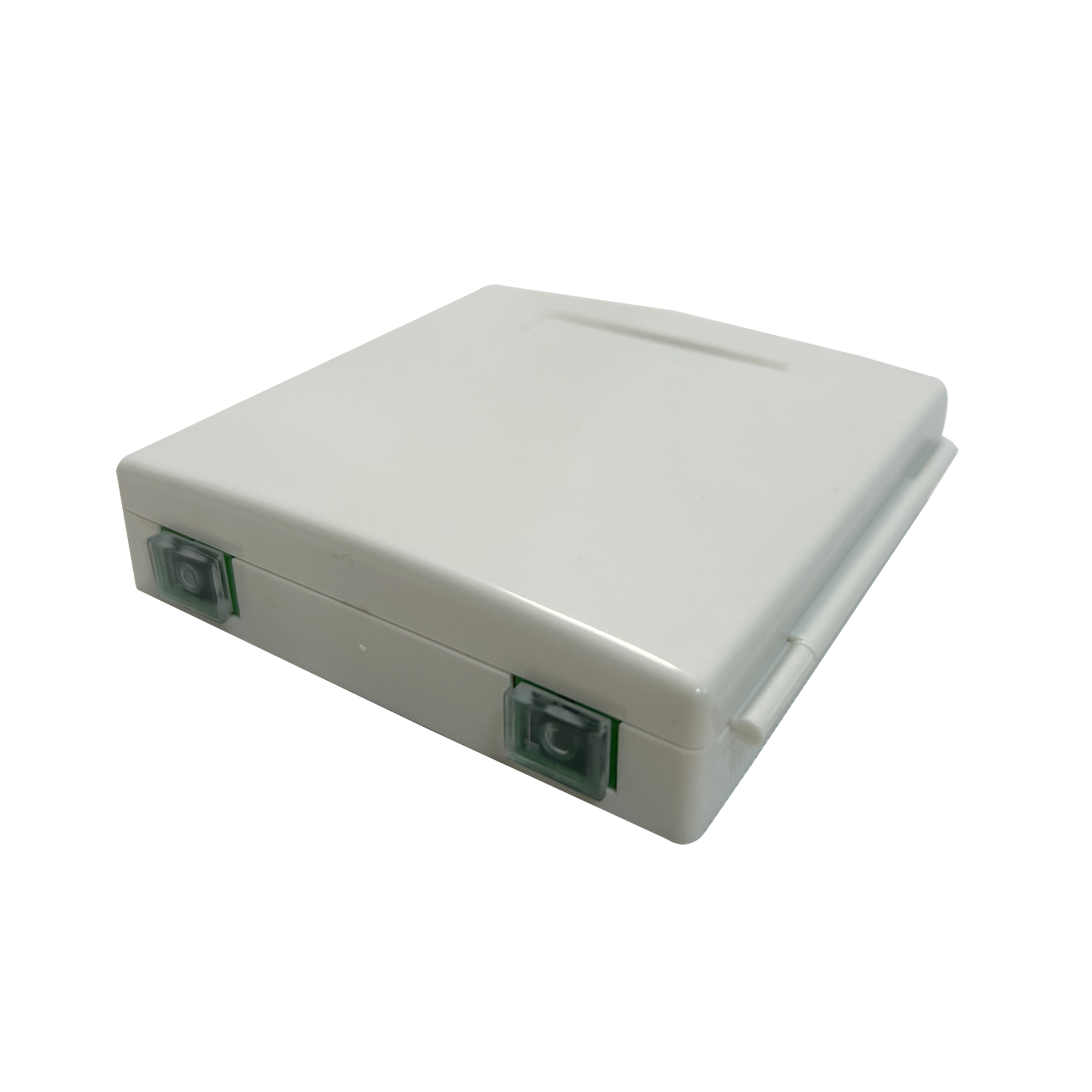

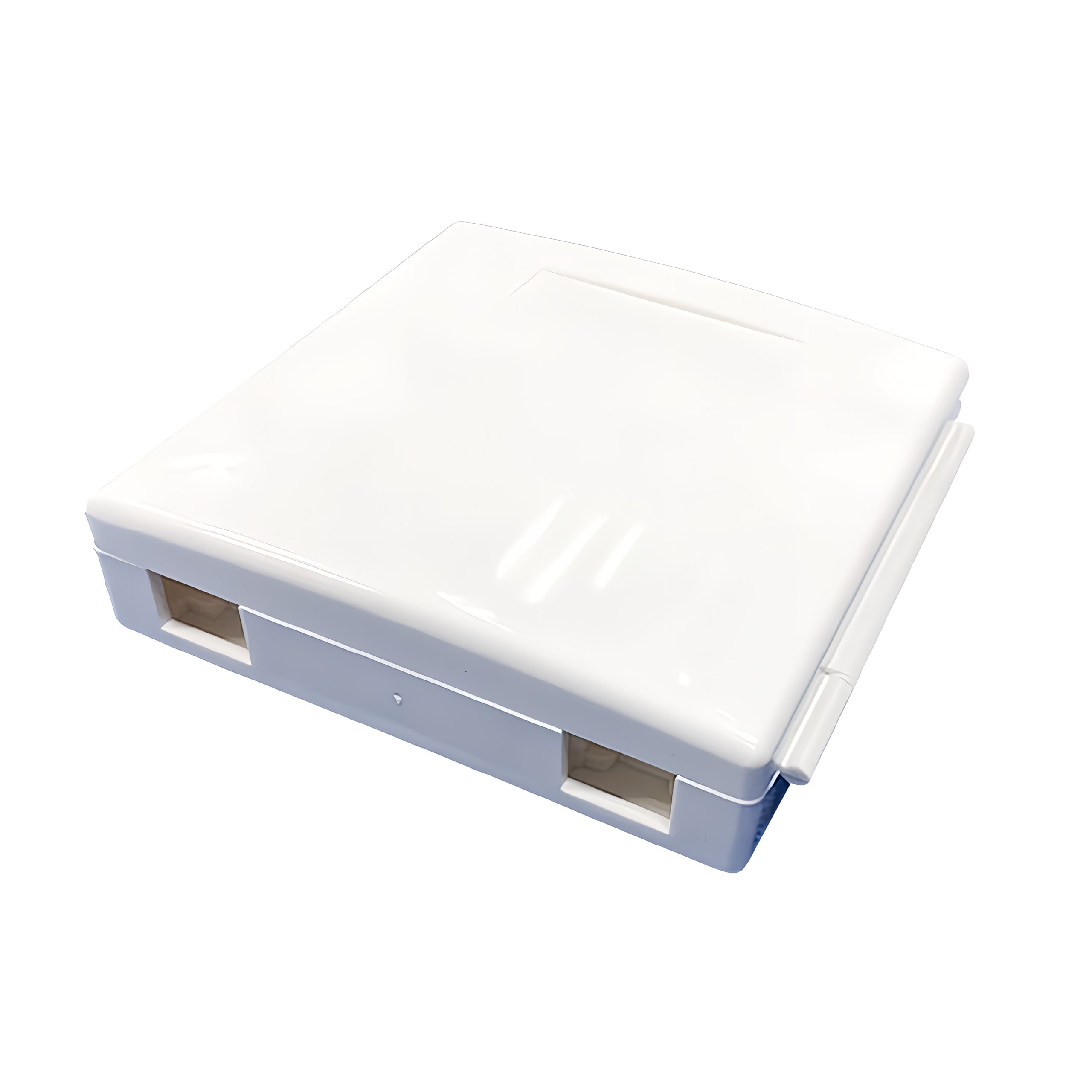

The 2 Port Fiber Wall Outlet with Hinged Cover is a compact indoor fiber termination box designed for FTTH networks. It provides a secure termination point for incoming fiber cables, allowing connections to optical network terminals (ONTs) through fiber optic patch cords. Featuring two SC simplex adapter ports and a 2-fiber splice capacity, this fiber optic wall outlet supports fiber splicing, termination, and cable management in a compact ABS enclosure. Internal fiber routing guides help organize excess fiber and maintain a suitable bend radius.

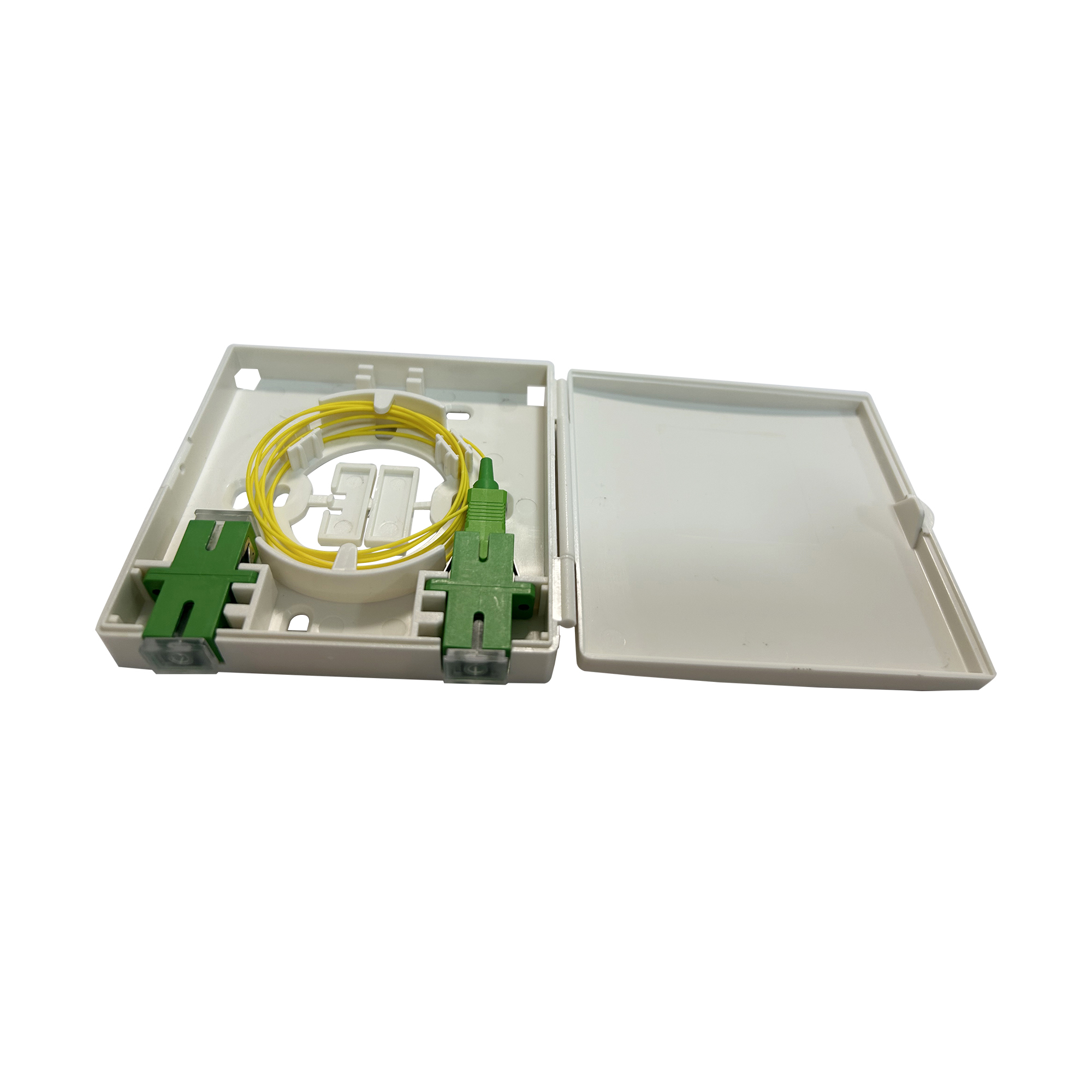

The hinged cover allows convenient access to internal fiber connections without removing the cover, making installation and maintenance easier. Dust caps help protect unused adapter openings, while front, bottom, and rear cable entry options provide flexible cable routing.
This 2 port FTTH wall outlet is suitable for wall-mounted or desktop installation, ideal for homes, apartments, offices, and other indoor fiber termination applications.
Features:
. Made of high quality ABS plastics

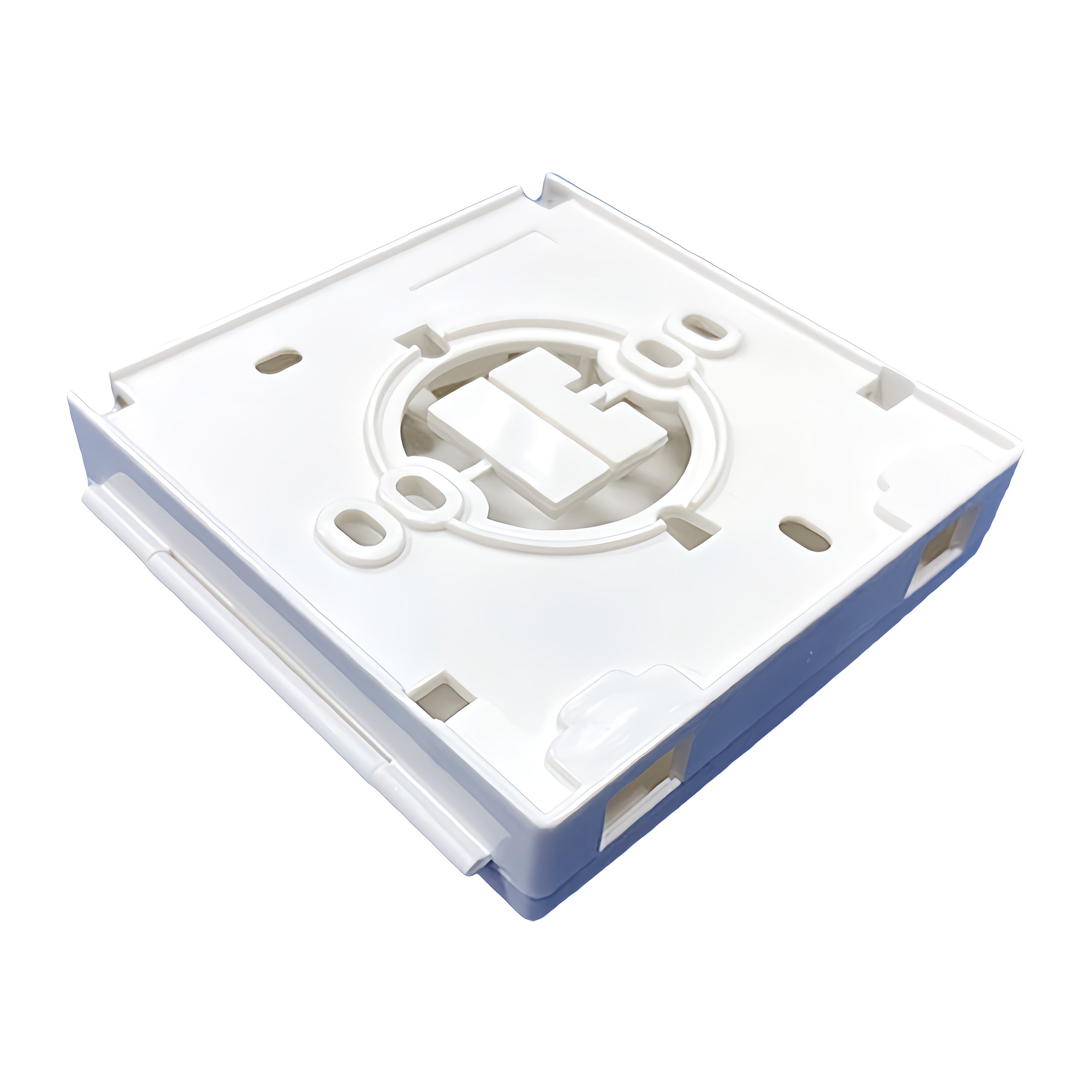

. 5 cable entry points for different installtion layouts

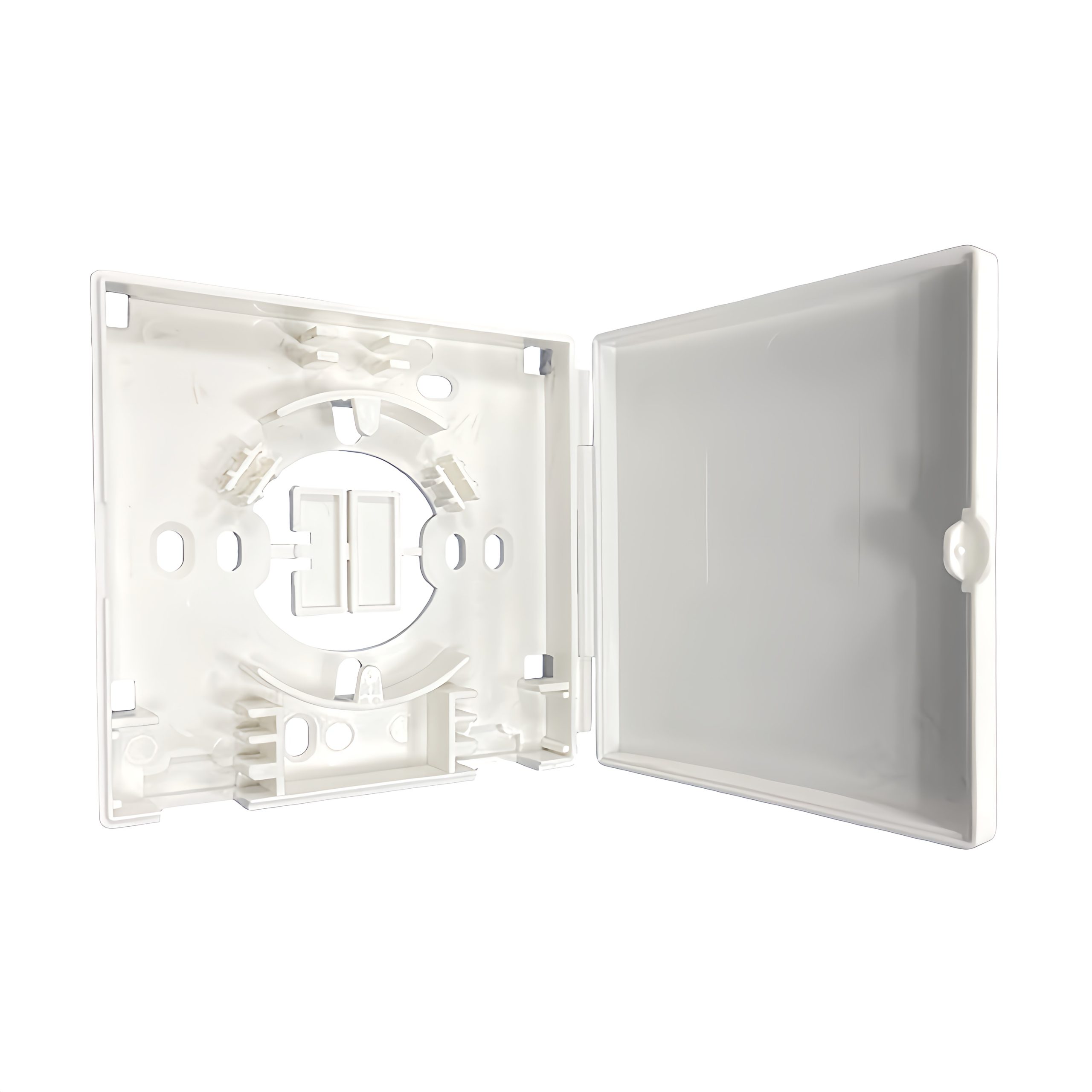

. Internal fiber routing guides reasonable fiber radius
. Hinged cover is easy for operation
. Equipped with dust-proof cap for unused port protection
Specification:
| Size (mm) | 86*86*22mm |
| Weight(kg) | 0.049 |
| Cable inlet/outlet | 5/2 |
| Cable Diameter (mm) | Φ3mm or Drop cable(2*3mm) |
| Max splice capacity | 2 cores (single) |
| Suitable adapter | SC, LC |
| Lead time | 7 days for 100pcs, 20 days for 300pcs |
| MOQ | 100 pcs |
