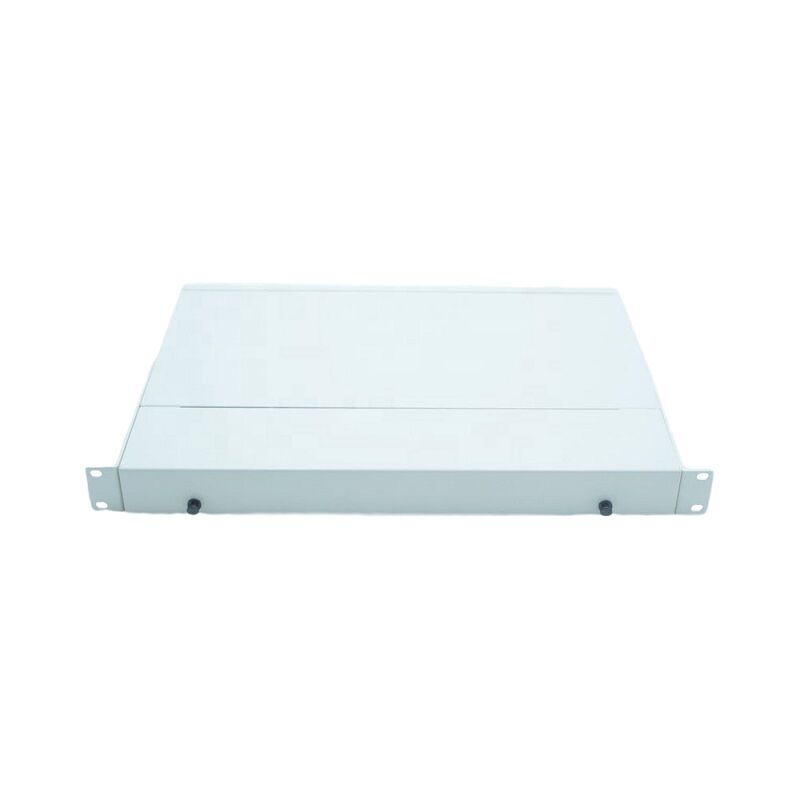

1U Rack Mounted 24 Port Fixed Fiber Patch Panel ,24 Splices

The 24 port rack mount  fixed fiber patch panel is designed to realize the connection between external optical fiber cables and pigtails. It is used for branch connection of optical cable terminal and usually installed in the 19″ or 23″ rack of the server cabinet. The rack mount fiber patch panel provides fiber termination,distribution and patching but in FTTH, FTTB, data centers, and telecom networks.

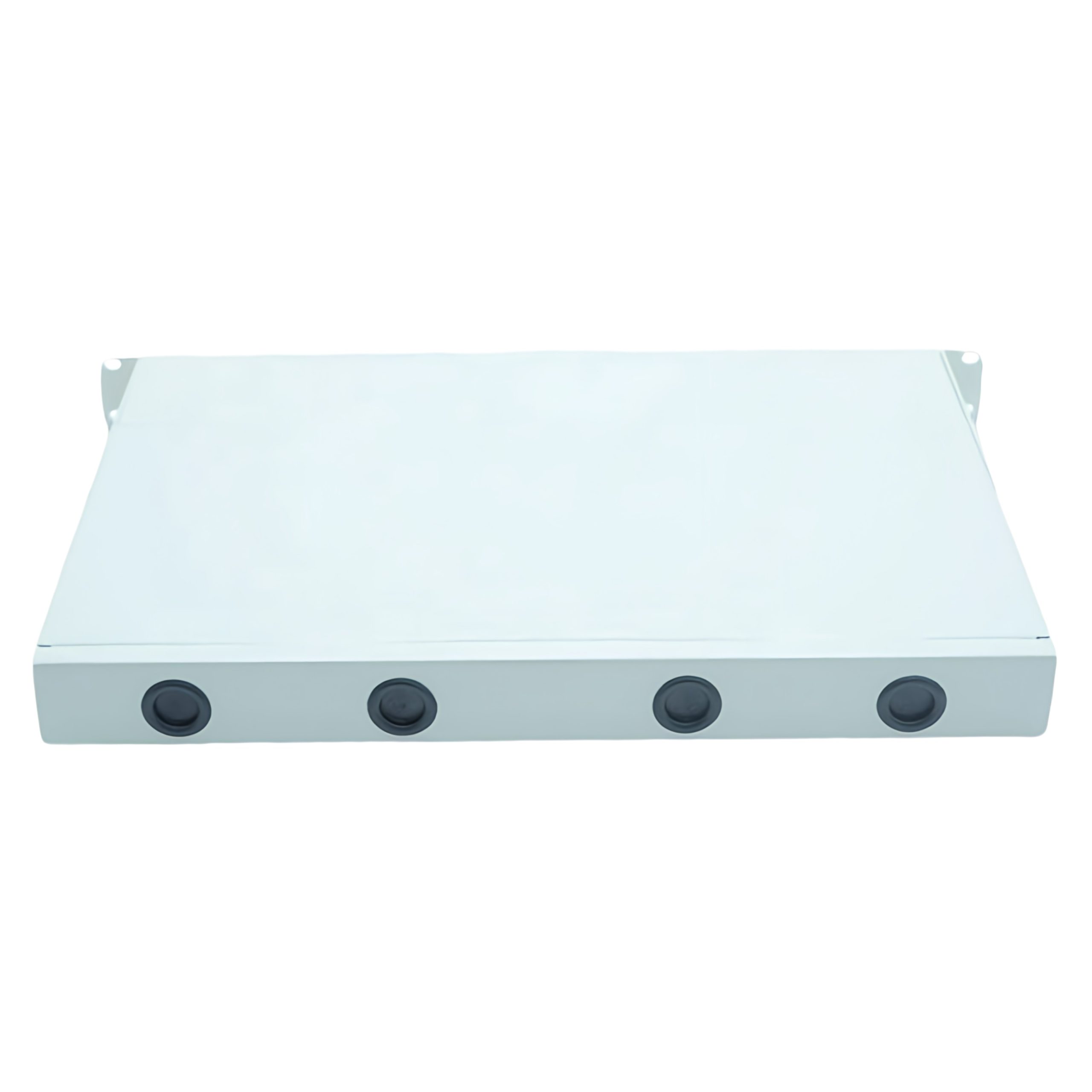

This 24 port rack mount patch panel which is available to configure the commonly used adapter (like SC, LC,FC, ) on the front, enabling flexible fiber patching and seamless network expansion. It features one or two 24F splice tray in the rack mounted enclosure for up to 48 cores splicing and surplus fiber storage, and it is of unique structure, reasonable layout, and adequate room for easy operation. The cable enters from the rear of the rack-mounted distribution panel, while the fiber optic patch cords are routed out from the front through the adapter panel.

Features:

. The body is made of high quality cold-rolled steel, and electrostatic spraying in the surface
. Configure with cable fixed device, splice tray and thread ring
. Stacked splice tray is convenient for future capacity expansion
. Independent insulation grounding device provides the safety
. Internal splice tray is made of high strength engineering plastics

Technical index:

optical fiber winding radius: ≥40mm

extra loss of fiber tray: none

fiber length left in tray:≥1.6m

working temperature: – 40⁰C ~ + 60⁰C

lateral pressure-resistance: 500N

shock-resistance：750N

Specification:

Size(mm)	482*300*44.5 (1U)
Suitable adapters	SC, ST, FC, LC
Cable inlet/outlet	4/24
Connector capacity	24 or 48
Max fiber splice capacity	24 (single core) 48（double core）
Weight (kg)	4.1
Lead Time	7 days for 100pcs, 20 days for 300pcs
MOQ	50pcs
