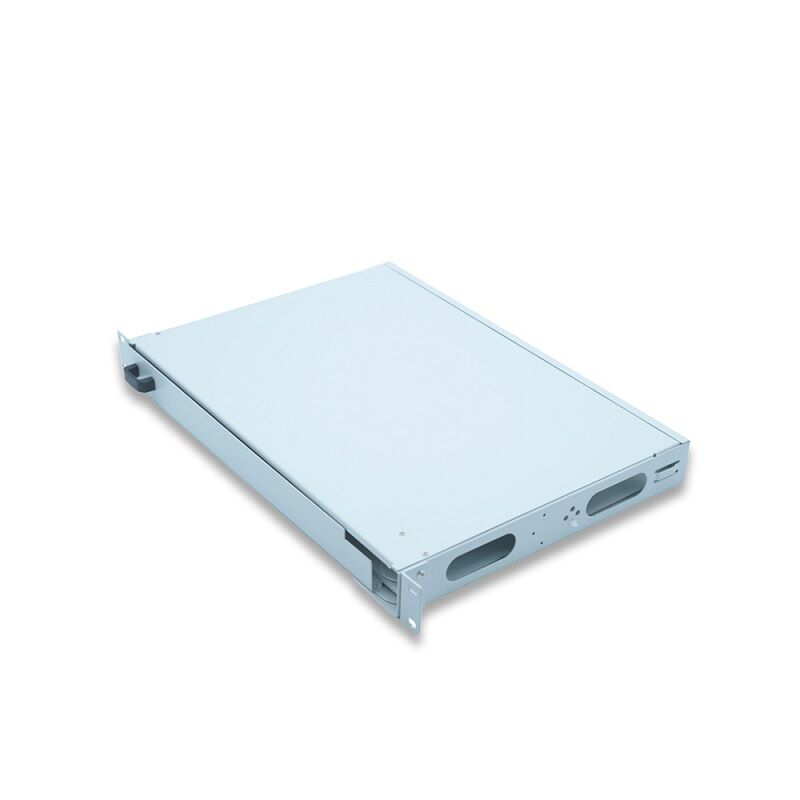

Swing Out 24 Port Rack Mount Fiber Patch Panel, 24 Splices
$27.20
Rotary Type, 1U 19” Structure, Indoor Application, With 1pc 24F splice tray
- Model: GPZJJ-FCZ/XA-SC24
- Unique 1～4 inlets and 1～24 outlets to enhance the flexibility of use
- Adapter plate and splice tray can vary as request
- No adapters included
- Free sample is available
FAST DELIVERY, FREE SAMPLES & 2-YEAR WARRANTY
- Note that this product has a minimum order quantity (50pcs). Please CONTACT sales for more information.
- Prices shown do not include shipping costs.
- The sample is provided free of charge. Freight charges will be quoted separately based on the delivery address
The rotary 24 port fiber patch panel with splice tray is designed to provide reliable fiber termination, splicing, and distribution for optical networks. It enables efficient interconnection between Ethernet switches, OSP cables, and building cabling systems, making it an ideal solution for structured cabling applications. Built in a standard 1U rack mount design, this fiber patch panel offers a compact yet spacious interior for easy installation and maintenance. It is widely used for branch connections of fiber optic cables and can be mounted in 19″ or 23″ server racks and network cabinets.
Equipped with an integrated splice tray, the panel supports up to 24 fiber terminations and provides secure fiber splicing and organized storage of excess fibers. The unit also includes cable management spools to maintain proper bend radius and ensure long-term fiber protection. This swing-out fiber patch panel with splice tray supports multiple adapter types, including SC, LC, FC, and ST, offering flexibility for different network requirements. Optical cables enter from the rear, while patch cords are routed from the front through the adapter panel, ensuring clean and efficient cable management.
For faster deployment, the distribution panel can be pre-terminated with 24-strand single-mode or multimode fiber pigtails, reducing installation time and improving overall efficiency. Its durable steel construction ensures stable performance in data centers, telecom rooms, and enterprise network environments.
Features:
. The body is made of high quality cold-rolled steel, and electrostatic spraying in the surface
. Configure with cable fixed device, splice tray and thread ring
. Overlying splice tray is convenient for future capacity expansion
. Independent insulation grounding device provides the safety
. Internal splice tray is made of high strength engineering plastics
Technical index:
optical fiber winding radius: ≥40mm
extra loss of fiber tray: none
fiber length left in tray:≥1.6m
working temperature: – 400C ~ + 600C
lateral pressure-resistance: 500N
shock-resistance：750N
Specification:
| Size(mm) | 482*310*44.5 (1U) |
| Suitable adapters | SC, ST, FC, LC |
| Cable inlet/outlet | 1/24 |
| Connector capacity | 24 |
| Max fiber splice capacity | 24 (single core) |
| Weight (kg) | 4.8 |
| Lead Time | 7 days for 100pcs, 20 days for 300pcs |
| MOQ | 50 pcs |
