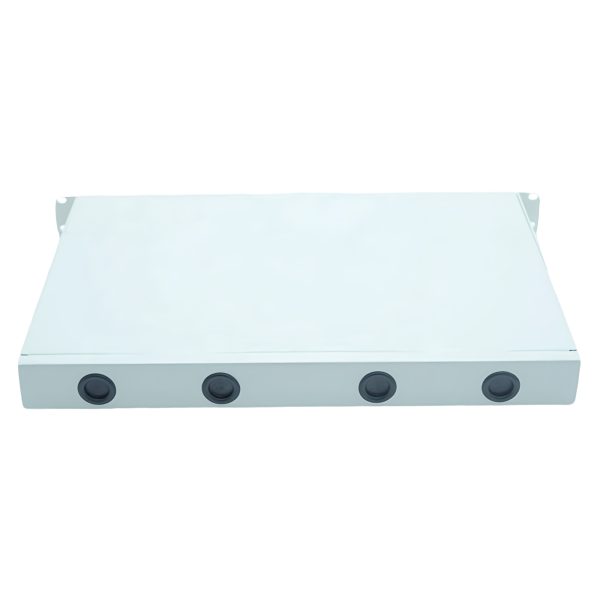

1U Rack Mounted 24 Port Fiber Patch Panel,24 Splices

The fixed type rack mounted fiber enclosure is designed to realize the connection between external optical fiber cables and pigtails. It is used for branch connection of optical cable terminal and usually installed on the 19″ or 23″ rack of the server cabinet. The fiber patch panel provides fiber termination and patching but also serves as an effective point for optical cable distribution in FTTH, FTTB, data centers, and telecom networks.

This fiber patch panel is rack mount distribution unit which is available to configure the commonly used adapter (like SC, LC, FC, ST) on the front, and supports both fiber patching and splicing. There are one or two splice tray in the rack mounted enclosure for splicing and surplus fiber storage, and it is of unique structure, reasonable layout, and adequate room for easy operation, the cable comes in from the rear of the unit, patch cord comes out from the sides by connecting the fibre access adapter panel.

Features:

. The body is made of high quality cold-rolled steel, and electrostatic spraying in the surface
. Configure with cable fixed device, splice tray and thread ring
. Stacked splice tray is convenient for future capacity expansion
. Independent insulation grounding device provides the safety
. Internal splice tray is made of high strength engineering plastics

Technical index:

optical fiber winding radius: ≥40mm

extra loss of fiber tray: none

fiber length left in tray:≥1.6m

working temperature: – 40⁰C ~ + 60⁰C

lateral pressure-resistance: 500N

shock-resistance：750N
