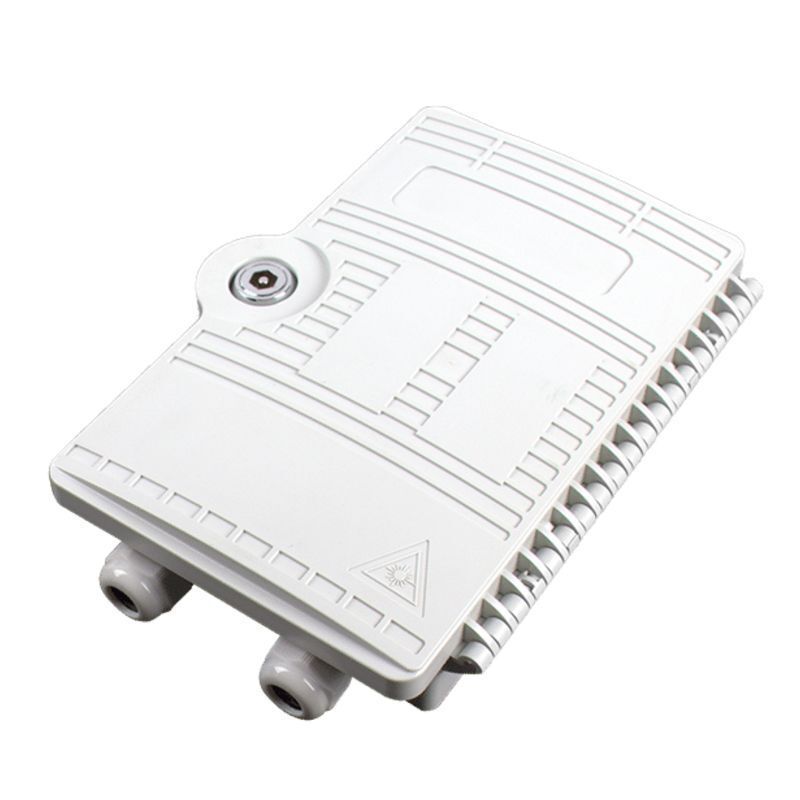

Outdoor Fiber Termination Box IP65, 4 Cores Splice

Outdoor Fiber Termination Box IP65, 4 Cores Splice


Wall Mounting,  1 Cable Access Point,  Indoor Outdoor Use

  • Model: FDB01014
  • Protection level up to IP65
  • Can Pre-assemble 1×2 or 1×4 PLC
  • Colour: White
  • Free sample is available
  • Free shipping on order less than 30 USD,over 30 USD pls contact our consultant
  • A sample is free of charge, but freight fee is on your account.


The indoor/outdoor fiber optic termination box is great for jointing optical cable and pigtail or splitter, which can realize cable direct  or branch connection and terminal connection in FTTH network. It offers the functions of fiber mechanical/fusion splicing, splitting, and distribution, and it is widely used in residential premises, business buildings, and villas, basically  mounted on the wall.

This 4 core fiber termination box comes with 1 input and 1 output port, which is ideal for FTTH, FTTB systems. It is made of good engineering plastic that protects the junction of fiber optic cable and pigtail; the lock provides extra security, two-layer design saves space and makes installation and maintenance easier. The fiber distribution box is waterproof  and rated IP65 so also suits both indoor and outdoor installation, It support 4 cores of LC (double core) or 2 cores of SC and max 1×4 pipe type PLC splitter.


. High-strength engineering plastics with UV/water resistance

. Easy for installation and maintenance

.  Lockable cover  for safety

. Flip design for splice tray providing easy installation


Size (mm) 208*153*52
Weight(kg) 0.55
Cable inlet/outlet 2/1
Cable diameter (mm) <Φ12
Max splice capacity 4 cores (single)
Suitable adapter  SC, LC
Lead time  5 days for 100pcs, 10 days for 800pcs
MOQ 100 pcs
