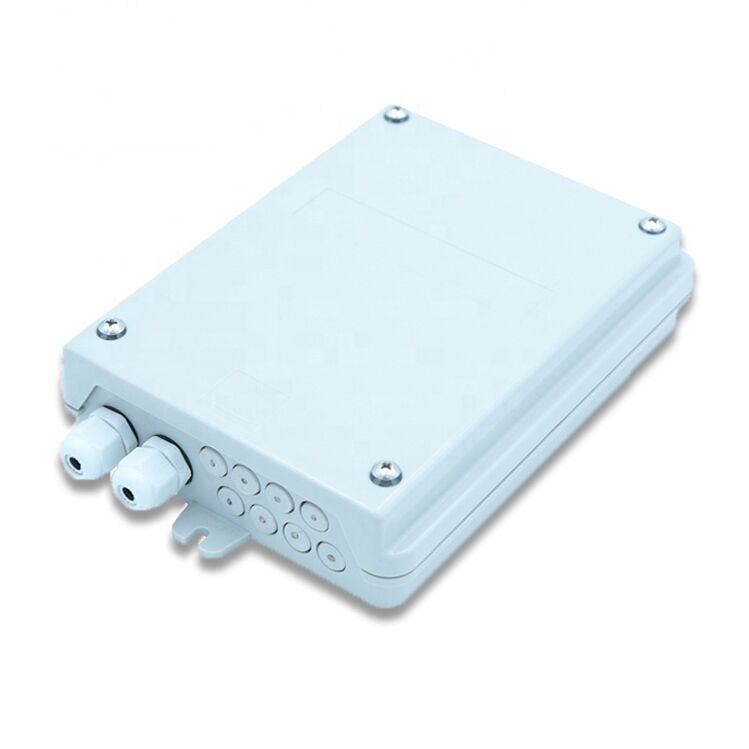

8 Port Optical Fiber Cable Distribution Box, 10 Splices

$9.80

Wall/Pole Mounted, 2 in 8 out, Indoor Outdoor Use

Model: FDB-0208C
Material: ABS or ABS+PC
Protection level up to IP65
Available to preload 1×4 or 1×8 mini splitter, pigtail, adapter
Easy to maintain and install
Sample is available

Minimum order quantity: 100 pcs.
Shipping cost not included.
Please CONTACT for a quote on larger quantities.
A sample is free of charge, but freight fee is on your account.

The 8 port indoor/outdoor enclosure is a fiber optic termination box used to connect distribution cable in outside plant and to drop cable . It enables fast connection of drop cable by pre-connectorized drop cables into the box or using splicing, also allows for subscribers’ terminal connection in FTTH and FTTB projects; and the internal connection through pre-terminated mini type splitter or pre-assembled pigtail. It provides splicing, splitting, termination and storage functions, and widely used in apartments, residential/business buildings, villas for wall mount or pole mount application.

This optical fiber cable distribution box is provided with 2 input and 8 output ports 1:4 or 1:8 micro PLC splitter for light signal splitting. It is of high-quality ABS plastic provides solid protection for splices and termination ; the screw type cover provides security; dual-layer design saves space and for easy management, upper for cable distribution, lower splitting, splicing and wiring; the unit is waterproof and suits indoor and outdoor environments, and supports max 10 cores splice and installation of up to 8 drop cable.

Features:

. High-density ABS plastics, UV/impact/water resistance

. Reasonable space for cable and pigtail splicing

. Flip design for adapter tray providing easy installation

. Screw type cover gives safety and convenience in operation

. Small size requires minimal wall space

fiber optic splice enclosure, passive plc splitter, patch cord, fibre closure, pigtail,launch cabe,ftth terminal box, optical termination box, distribution panel, wall mount fiber junction box，sc/fc/st/lc/e2000 adapter, jumper

Technical parameter:

. Optical fiber radius of curvature:≥40mm

. Splice tray additional loss：≤0.01dB

. Temperature Range: – 40°C ~ + 60°C

. Compressive strength: ＞500N

Specifications:

Size(mm)	22515046
Weight(kg)	0.5
Cable inlet/outlet	2/8
Cable dia (mm)	Φ4~Φ8
Max splice capacity	10 cores (single)
Suitable adapter	SC simplex (8 pcs)
Lead time	7 days for 100pcs, 10 days for 800pcs
MOQ	100 pcs

Our Services

Fast Delivery

Delivery time is very important to the majority of customers, We try best to find an effective way to coordinate orders to arrive at your destination promptly.

Guaranty

All Fiber Termination Boxes/Enclosures have 2 years ( fiber optic component 1 year ) warranty. We will make a replacement if there are some Non-human damage during a period of warranty time.
