The metal equipment is a termination box designed to connect optical fiber cable with pigtail in FTTH indoor application. The wall mount module is small and lightweight, especially suits mini-network terminal distribution, and it provides termination, fusion/mechanical splicing, and storage functions, the internal connection is made through the splice of drop cable or indoor cable and pigtail, It is widely used in the end termination of residential/business building and villas.

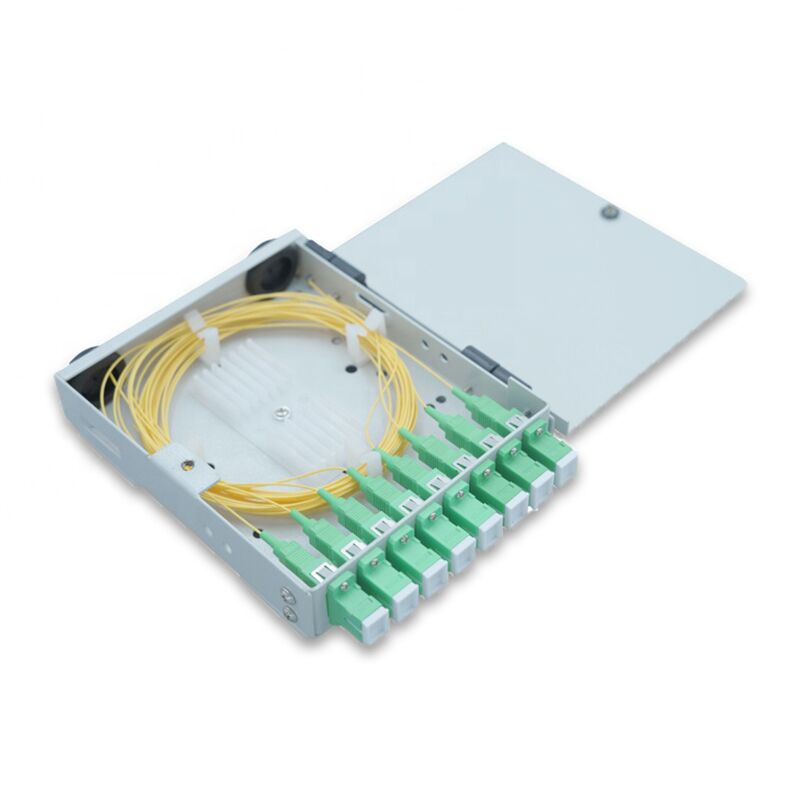

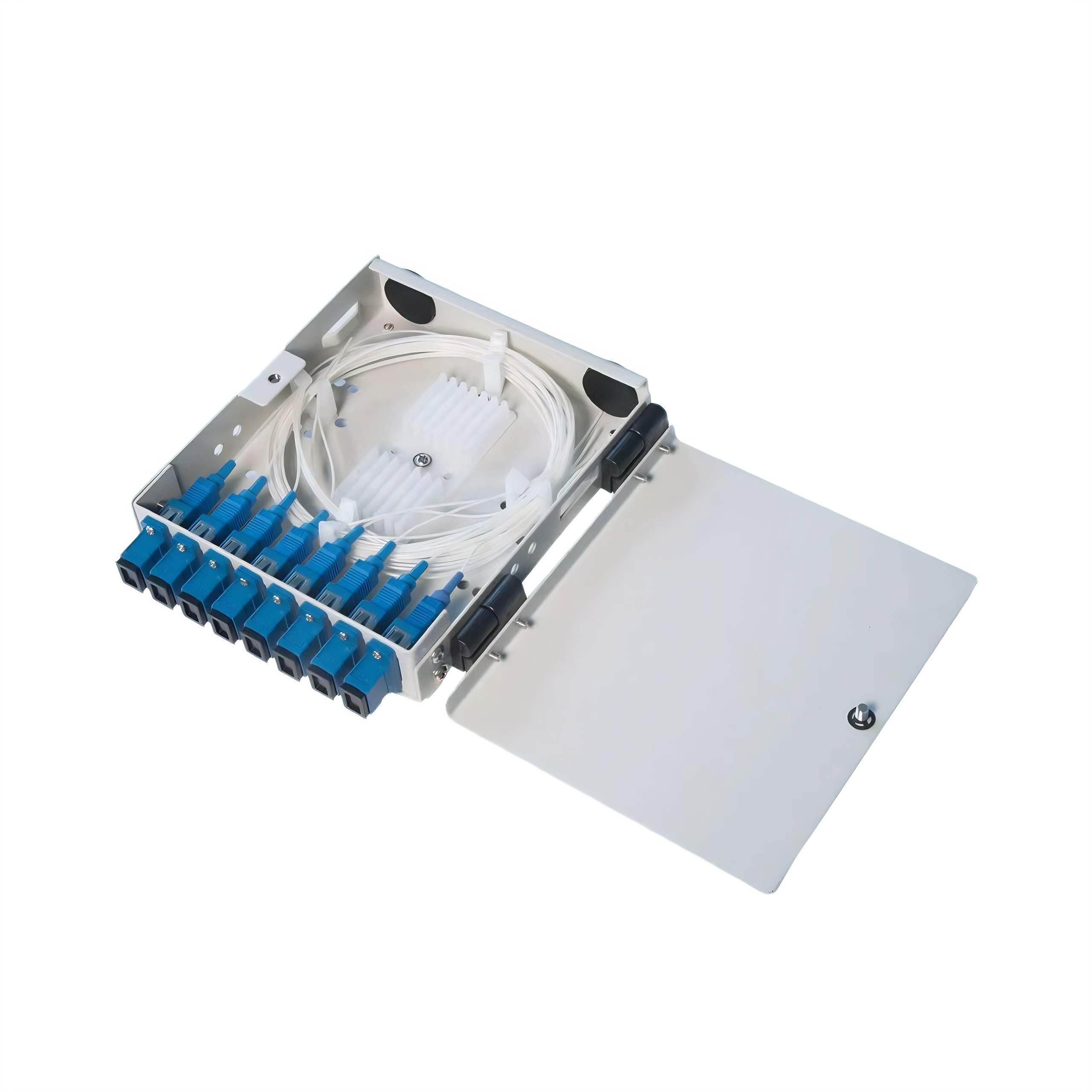

This wall mounted box comes with 8 external adapter ports, which usually used to organize and protect optical fiber splicing and termination for indoor application. It is of cold rolled steel providing strong protection for pigtail and optical fibre cable; hinge design cover is easy to open; internal routing for safe bend radius; there is 2 cable access points in the rear to meet multi-fiber cable termination, the front of metal cabinet is available with SC, LC, ST and FC adapter and supports 8 optical fibre count terminal.
. Made of cold rolled steel sheet, electrostatic spraying
. Small size taking up minimal wall space
. With heat shrink sleeve slots for better protection
. Supports factory terminated assemblies
|Cable Diameter (mm)
|Max splice capacity
|8 cores (single)
|SC, LC,FC, ST
|5 days for 100pcs, 10 days for 800pcs
