The 8 ports optical fiber splitter distribution box works as a termination point to connect feeder cable and drop cable in FTTH, FTTB application. It integrates fiber fusion splicing, signal splitting, fiber termination and cable distribution within the protection box in indoor and outdoor environments. It is widely used in fiber optic access networks, telecommunication networks, CATV networks, data communications networks. The fiber box not only provides the protective connection of the optical cable and pigtail, but also achieve direct connection and branch connection of the fiber optic cable in the dwelling, business building and villas, it supports both wall-mounted and pole-mounted installation.

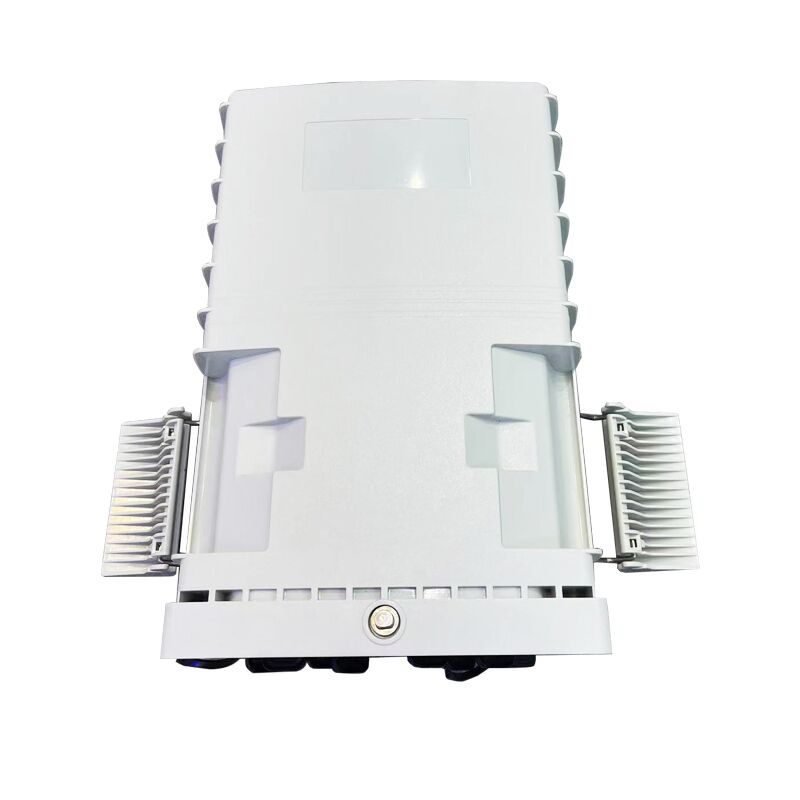

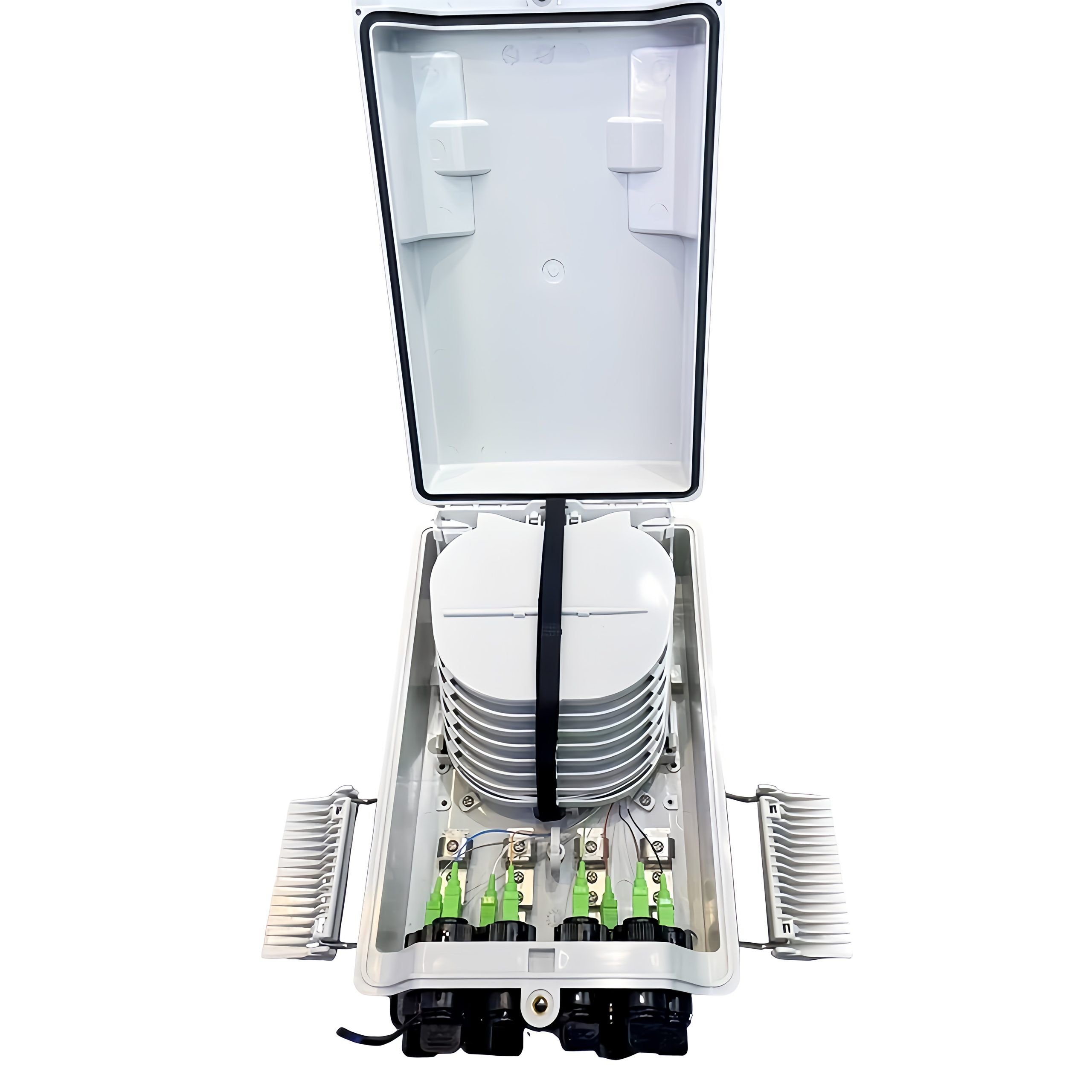

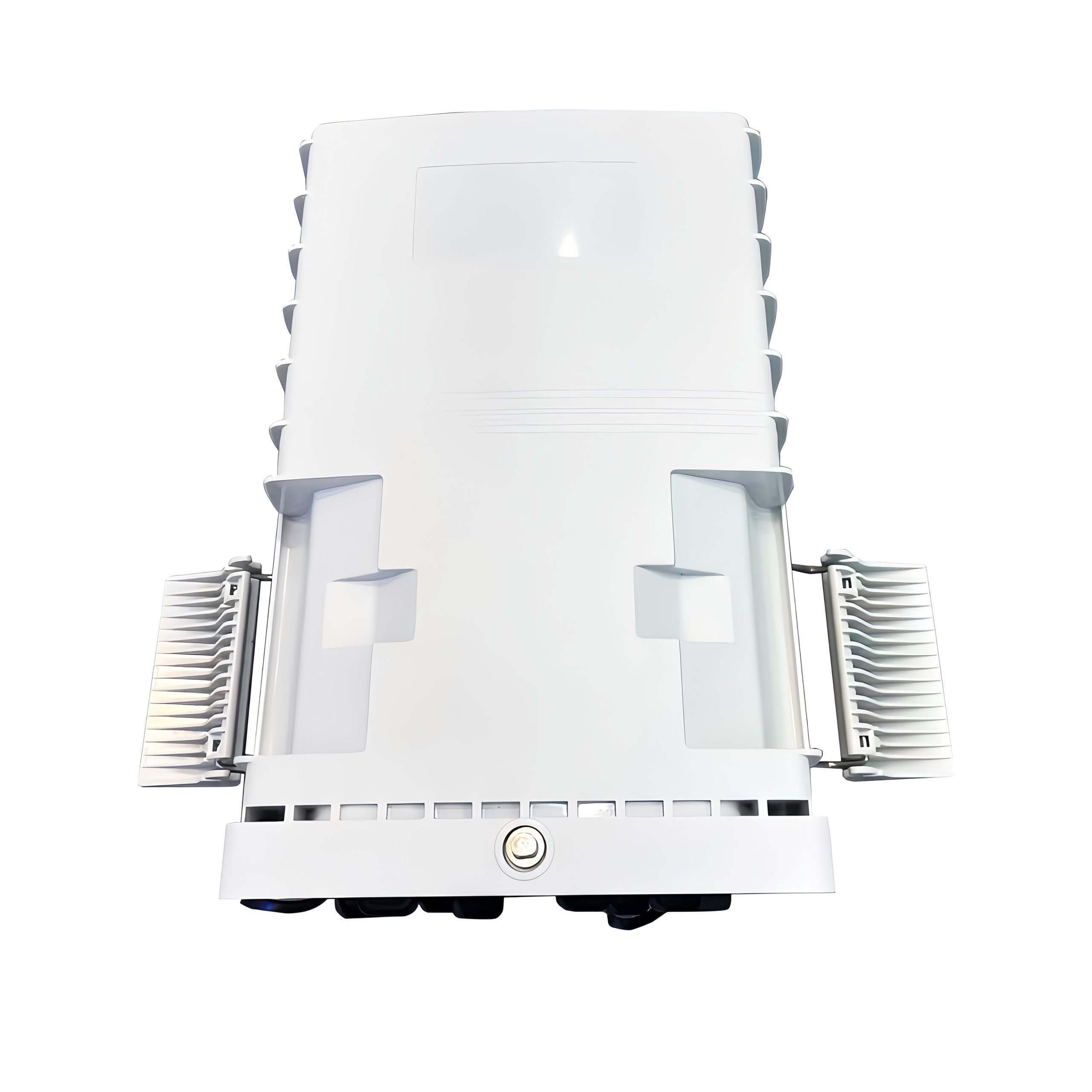

This outdoor splitter distribution box comes with 4 inlets and 8 outlet ports, which can house max 1:8 splitter to realize optical signal splitting and hold up to 192 cores splicing. It is of engineering plastic offering strong protection for splice and termination; the anti-theft lock provides extra security; simple design is clear for installation and maintenance. The compact box could be pre-connectorized waterproof adapter as your fiber network demands.
The 16 port fiber termination box is an interconnection between the central office and multi-dwelling units in the FTTX network. It allows to install a 1×8 blockless plc splitter to distribute fiber cable and split the optical signal.
. Made of high-quality plastics ABS or ABS+PC, UV and impact resistance
. It has 8 flip-type splice trays that integrate direct fiber splicing and optical splitting
. There are two outlet options for installing a mini waterproof adapter or waterproof adaptor support type
. The cover has suspended fixtures, which will not affect the construction due to falling during installation and maintenance
Specification:
Size (mm) | 177 * 276 *106 |
Weight(kg) | 1.4 |
Cable inlet/outlet | 4/8 |
Cable diameter (mm) | Φ7-Φ16 |
Max splice capacity | 192 single cores |
Adapter | SC adapter or Mini waterproof adapter |
Max splitting | Pipe type splitter 1:8(1pc) |
MOQ | 100 pcs |
