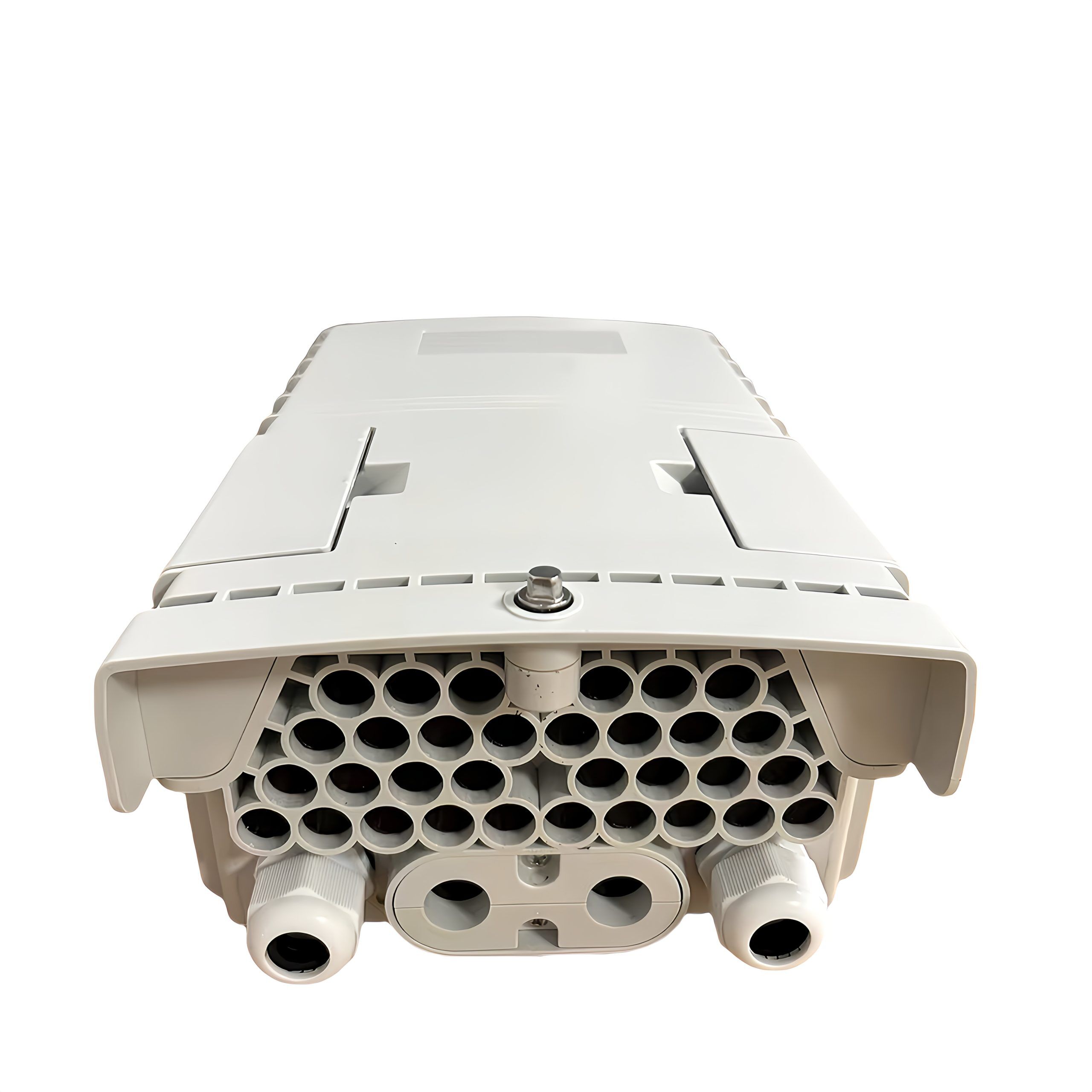

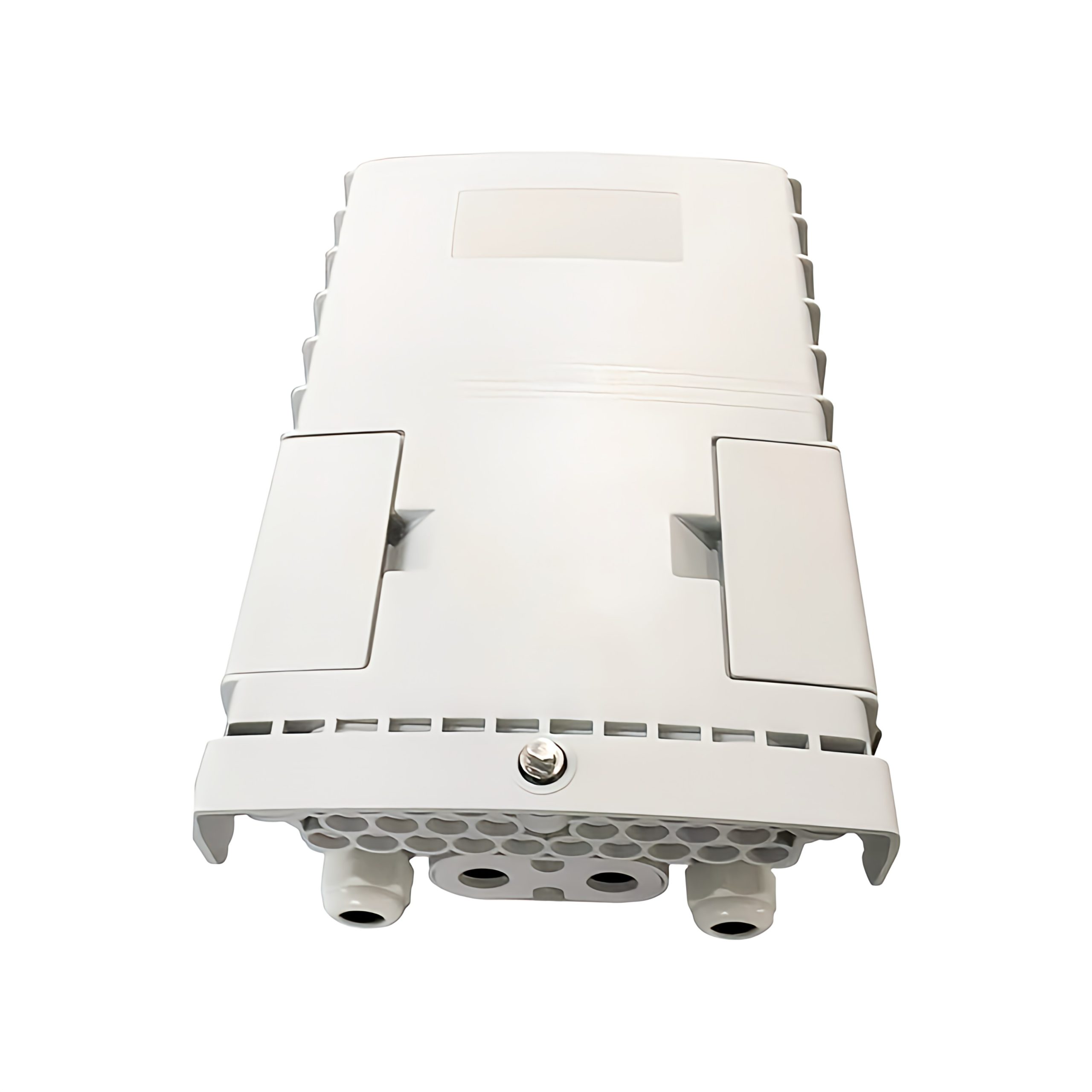

The 32 port fiber distribution box is designed for terminal access on the user side and connected with optical communication equipment. It integrates fusion splicing, signal splitting and cable distribution within the fiber box for indoor and outdoor FTTH application. The optical fiber enclosure not only provide the protective of the optical cable and pigtail, but also realize the straight-through connection and branch connection of the fiber optic cable by splicing with home cable in the dwelling, business building and villas. The plastic unit supports both wall mounted and pole mounted installation.

This fiber optic distribution box comes with 4 input and 32 output port, it can accommodate max 72 cores splices. It is made of impact-resistant plastics with anti-uv and waterproof function, independent layer for splicing and splitting, which make the cable management easy and convenient; this box has three types of internal structure for different need of optical split and splices. .The outdoor fiber box can hold max 72 cores termination, and could install steel-tube type splitter or plug-in splitter to distribute optical cable and split the signal.

The compact 32 port plastic distribution box has 3 types with different internal structure for different network deployment.

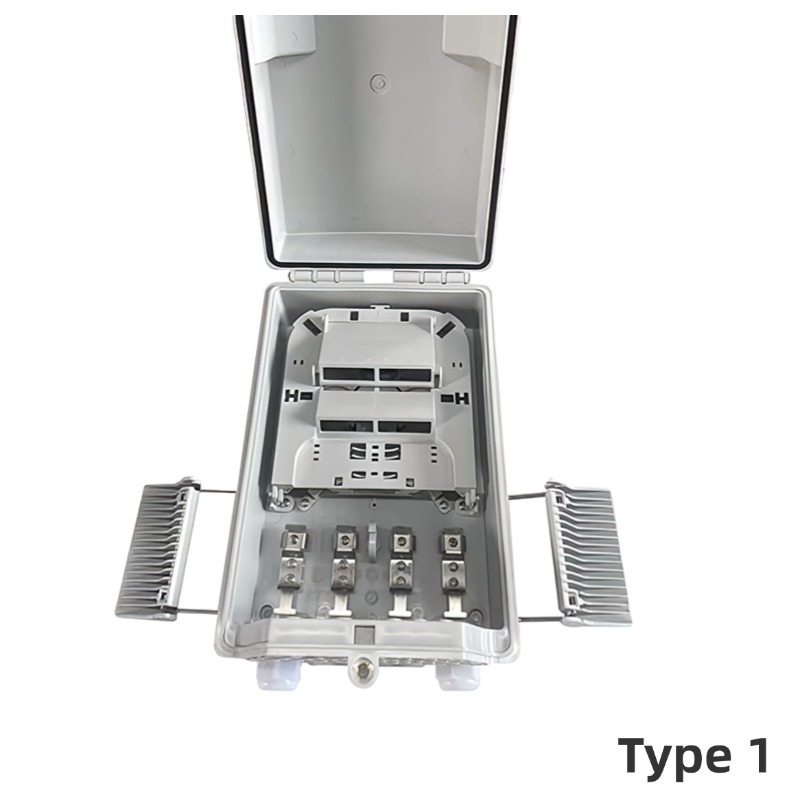

1. Type 1 can house blockless type splitter for 16 splices, can expand to max 40 splices.

outdoor waterproof 4 in 32 out port fiber optic distribution box for max 1x16 mini splitter and 40 cores splice

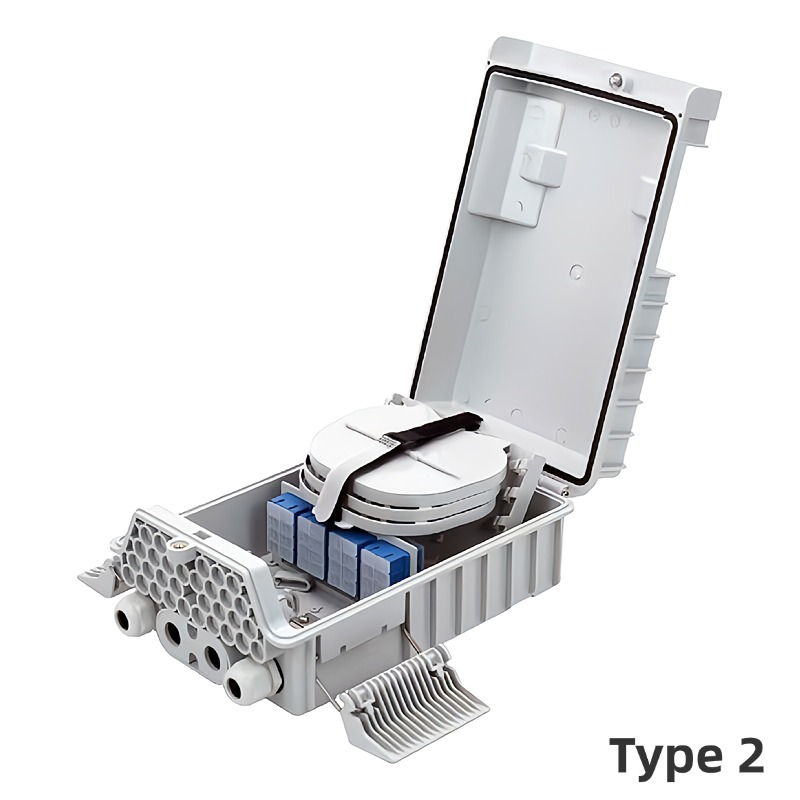

2. Type 2 can house max 3 blockless type splitter for max 72 splices.

outdoor waterproof 4 in 32 out port fiber optic distribution box for max 3 pcs 1x8 mini splitter and 72 cores splice

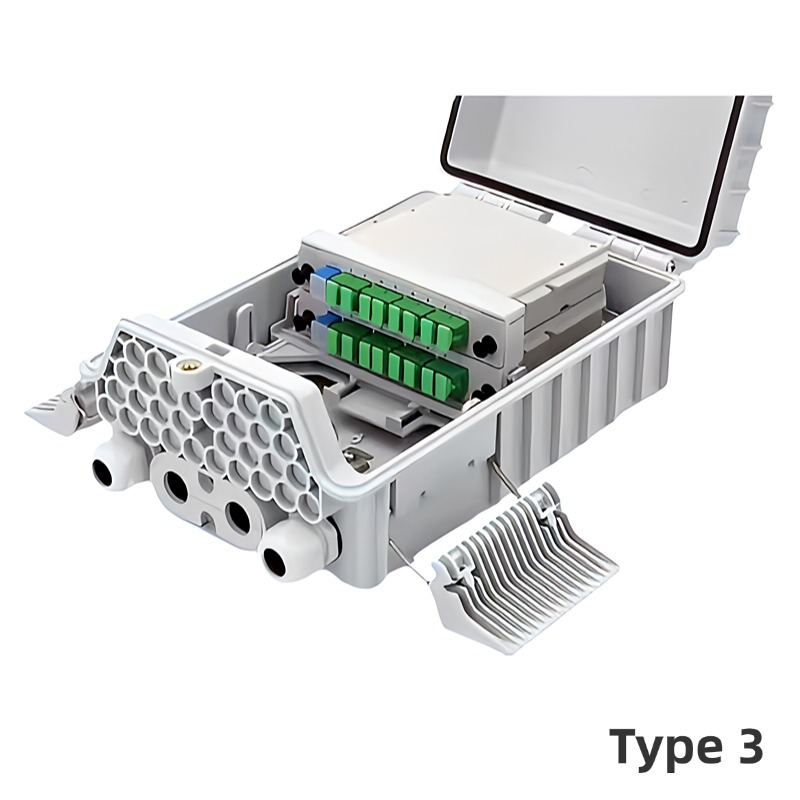

3. Type 3 can house 2 pcs cassette type plc splitter for 16 splices, can expand to max 40 splices.

outdoor waterproof 4 in 32 out port fiber distribution box for max 2 pcs 1x8 plug-in splitter and 40 cores splice

Features：

. High-quality plastics with UV and impact resistance

. 3 different structural form inside，user can select plug-in splitter or steel-pipe splitter

. Reversible tray providing easy operation

. Enough space for cable storage and fiber routing

fiber optic splice enclosure, passive plc splitter, patch cord, fibre closure, pigtail,launch cabe,ftth terminal box, optical termination box, distribution panel, wall mount fiber junction box，sc/fc/st/lc/e2000 adapter, jumper

Specification:

Product Type	Type 1	Type 2	Type 3
Size (mm)	177276106
Weight(kg)	1.6
Cable inlet/outlet	4/32
Cable diameter (mm)	Φ7-Φ16
Splitter type	mini splitter	mini splitter	cassette splitter
Max splitting	1：8（2pcs） or 1：16（1pc）	1：8（3pcs）or 1:16（1pc）+ 1:8 (1pc)	1:8 (2pcs) or 1：16 (1pc)
Max splice capacity	16 cores （can be expanded to 40 cores）	72 cores	16 cores （can be expanded to 40 cores）
MOQ	100 pcs
