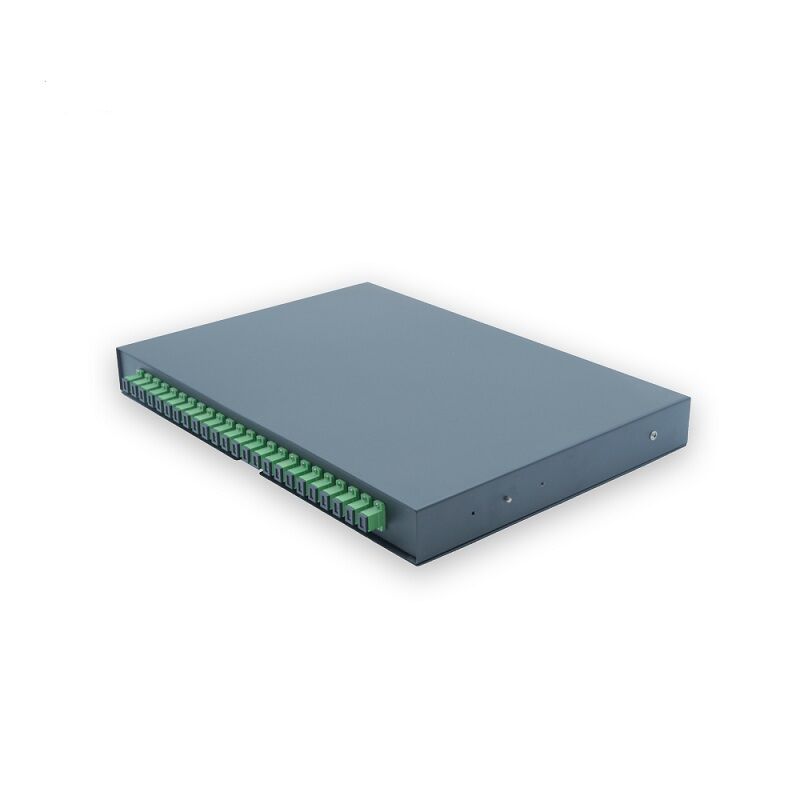

24 Port Fiber Patch Panel, 1U 48 Splices

The 24 port fiber patch panel is a 1U steel enclosure that realizes the connection between external optical cables and pigtails, it is available with LC, SC, ST, FC adapter plate as application need. This slide-out fiber patch panel includes 2 pcs 12 or 24 splice cassettes and routing spool for fusion splicing and storage. There are four cable entry points on the back of the patch panel fitted with rubber grommets to protect the fiber optic cable from damage. The cable comes in from the rear of the rack mount fiber termination box,  fiber patch cords goe out from the front by connecting the adapter panel.

This 24 port fiber patch panel is available to be loaded with various adapters (sc, fc, lc, st) and 12, 24, or 48 strand pigtail for rack-mount installation, the cable can be single-mode and multimode according to your actual solution. The 1U metal box that provides excellent fiber patching management, it is applicable in the branch connection of optical cable termination and usually mounted on 19″or 23″ rack of the server cabinet.

Technical index:

Fiber radius curvature：≥40mm

Extra loss of fiber tray: none

Fiber length left in tray:≥1.6m

Working temperature：-5℃～+40℃

Ultimate tensile strength：≥500N

Crush strength：≥200N

Specification:
