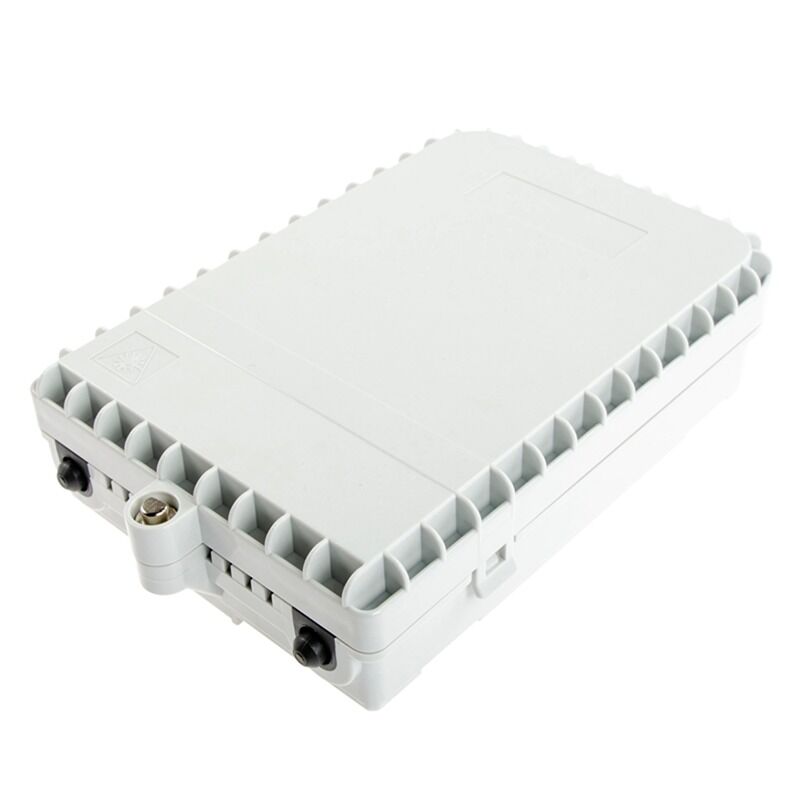

This 8 fiber optic terminal box is provides with 2 cable inlets and 8 exit ports, which can hold max 1:8 PLC splitter and 8 cores splice and ideal to be installed on each floor for small business building application . It is of high-quality plastics provides protection for splices and terminations; two opened inlets that realizes operation without breaking the cable.; two-layer design is clear for fusion splicing and storage, the inner cover protects the junction of optical cable and pigtail.
Features:
. High-density ABS plastics or ABS+PC, UV/shock/water resistance
. Enough space for cable storage and fiber routing

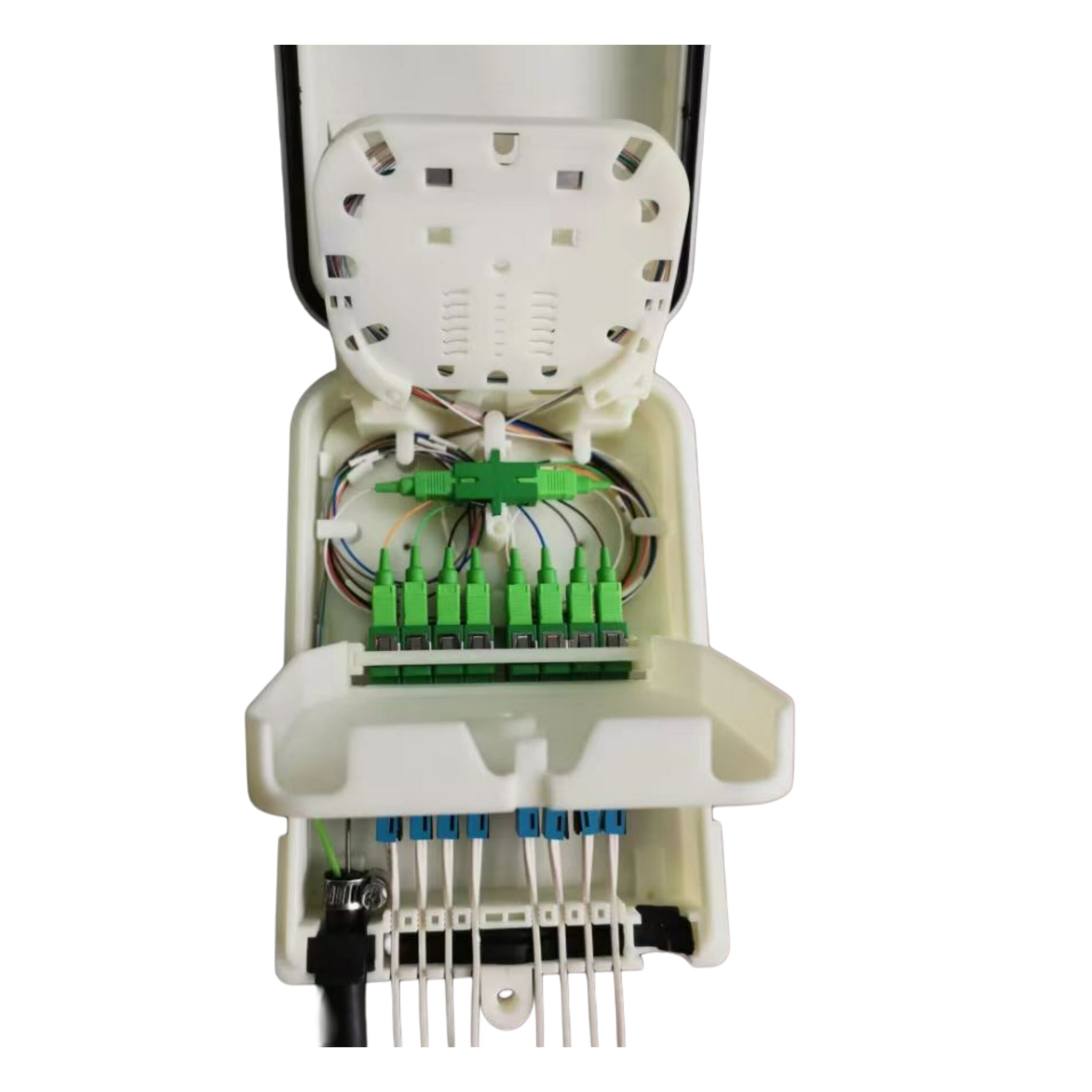

. Flip design for splice tray providing easy installation
. Cable port is rubber sealed, dust-proof
. Small size taking up minimal wall space
Specification:
| Size(mm) | 192*132*52 |
| Weight(kg) | 0.5 |
| Cable inlet/outlet | 2/8 |
| Cable diameter (mm) | Φ 12 |
| Max splice capacity | 8 cores (single) |
| Max splitting | 1:8 |
| Lead time | 7 days for 100pcs, 10 days for 800pcs |
| MOQ | 100 pcs |
