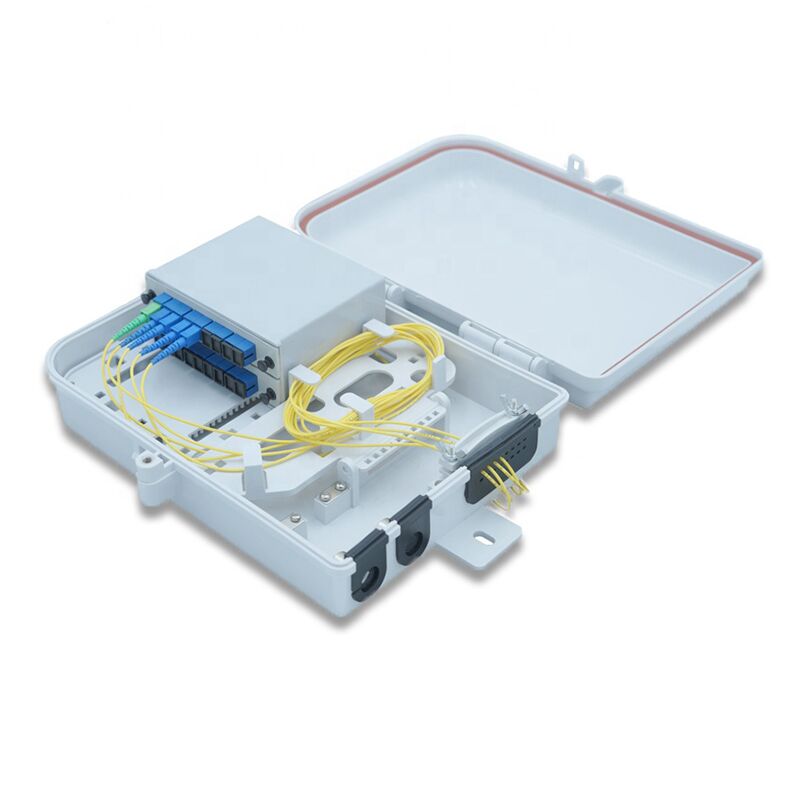

16 Port FTTH Distribution Box For 2pcs 1:8 Cassette Splitter

The indoor/outdoor fiber distribution box (FDB) adapts to the direct or branch connection and terminal connection of cable in optical systems. It is great to connect indoor cable to optical communication equipment, and enables the connection of feeder cable and drop cables. The plastic unit can be used as both termination and splice point for optical cable in indoor and outdoor environments, and integrates splicing, splitting, wiring. The box is widely used in FTTH access networks, telecommunication networks, CATV networks, local area networks, and suits to be installed on each floor for small building applications.

This optical fiber distribution box(FDB) is provided with 2 cable access points and 16 exit ports, supporting up to 24 cores fusion splices and max 2 pcs 1:8 splitting. It is of high-quality plastics provides protection for splices and terminations; the splice tray can be flipped up for easy cable management; the lock offers extra security; dual-layer design is clear for fusion splicing , wiring and cable distribution. The outdoor wall mount enclosure holds 16 cores termination and can install 2 pcs 1:8 cassette type PLC splitter.

This box has another model for installing max 1:16 steel-tube type plc fiber splitter.

Features:

. High-density ABS plastics or ABS+PC,  UV/shock resistance

. Large space for cable storage and fiber routing

. Flip design for splice tray providing easy installation

. Waterproof, protection level up to IP65

Technical parameter:

. Optical fiber radius of curvature:≥40mm
. Splice tray additional loss：≤0.01dB
. Splice tray additional loss：≤0.01dB
. Compressive strength: ＞500N
