The indoor/outdoor fiber optic termination box is great for jointing optical cable and pigtail or splitter, which can realize cable direct or branch connection and terminal connection in FTTH network. It offers the functions of fiber mechanical/fusion splicing, splitting, and distribution, and it is widely used in residential premises, business buildings, and villas, basically mounted on the wall.

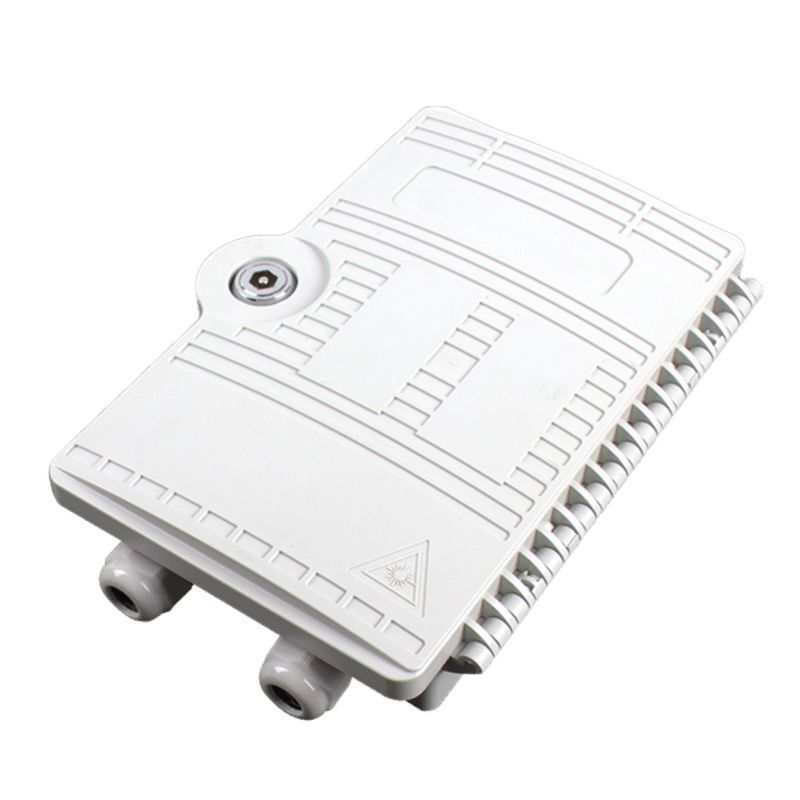

This 4 core fiber termination box comes with 1 input and 1 output port, which is ideal for FTTH, FTTB systems. It is made of good engineering plastic that protects the junction of fiber optic cable and pigtail; the lock provides extra security, two-layer design saves space and makes installation and maintenance easier. The fiber distribution box is waterproof and rated IP65 so also suits both indoor and outdoor installation, It support 4 cores of LC (double core) or 2 cores of SC and max 1×4 pipe type PLC splitter.
Features:
. High-strength engineering plastics with UV/water resistance
. Easy for installation and maintenance
. Lockable cover for safety
. Flip design for splice tray providing easy installation
Specification:
| Size (mm) | 208*153*52 |
| Weight(kg) | 0.55 |
| Cable inlet/outlet | 2/1 |
| Cable diameter (mm) | <Φ12 |
| Max splice capacity | 4 cores (single) |
| Suitable adapter | SC, LC |
| Lead time | 5 days for 100pcs, 10 days for 800pcs |
| MOQ | 100 pcs |
Our Services
Fast Delivery
Delivery time is very important to the majority of customers, We try best to find an effective way to coordinate orders to arrive at your destination promptly.
Guaranty
All Fiber Termination Boxes/Enclosures have 2 years ( fiber optic component 1 year ) warranty. We will make a replacement if there are some Non-human damage during a period of warranty time.
Free Sample
If you are interested in our product, we can offer a Free Sample for your quality test.
