16 Ports Fiber Distribution Box For Mini PLC Splitter , 24 Splices
$13.50
Wall Mount or Pole Mounted, 2 in 16 out, Mini Splitter Type, Indoor/ Outdoor Use
- Model: FODB-0216AK
- Material: ABS or ABS+PC
- Can be pre-installed with adapters, splitter and pigtails (sold separately)
- Easy to maintain and install
- Free sample is available
FAST DELIVERY, FREE SAMPLES & 2-YEAR WARRANTY
- Note that this product has a minimum order quantity (50pcs). Please CONTACT sales for more information.
- Prices shown do not include shipping costs.
- The sample is provided free of charge. Freight charges will be quoted separately based on the delivery address

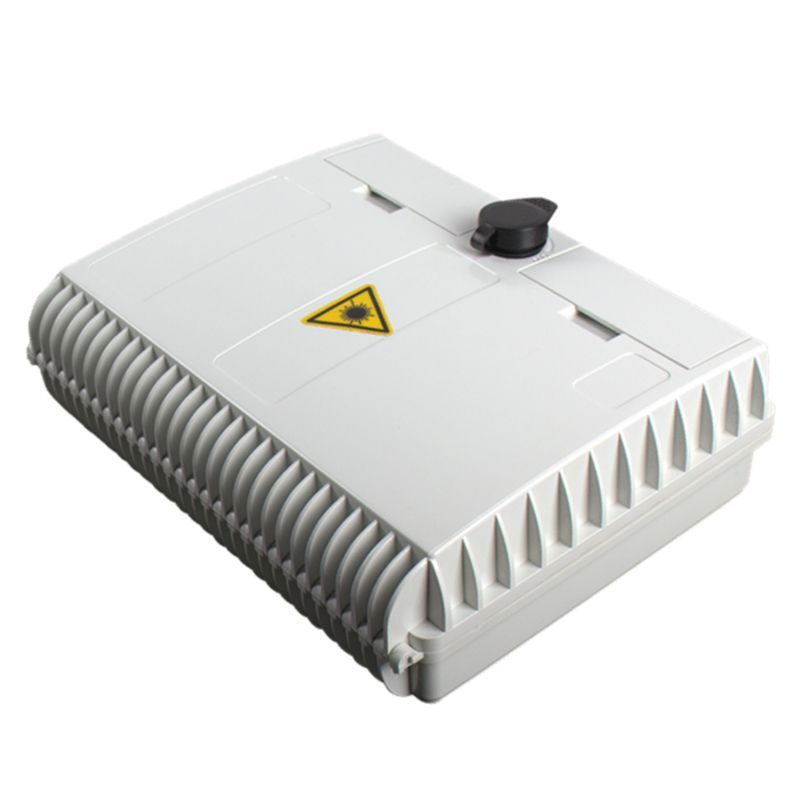

The 16 Port Fiber Distribution Box is an IP65-rated outdoor enclosure designed for fiber splicing, termination, and distribution in FTTH and FTTB access networks. It provides a connection point between feeder or distribution cables and subscriber drop cables, making it suitable for residential buildings, multi-dwelling units (MDUs), and commercial fiber access applications.
This 16 port outdoor fiber distribution box features 2 cable inlet ports and 16 cable outlet ports, with space for optional installation of one 1×16 mini steel-tube PLC splitter. Its compact splitter mounting arrangement supports optical signal distribution without requiring a cassette-style splitter module. The enclosure accommodates up to 24 fiber splices, while the multi-layer internal structure provides organized space for fiber routing, splicing, and storage.
Constructed from durable engineering plastic, the enclosure provides IP65-rated protection against dust and water ingress. An anti-theft lock helps prevent unauthorized access, while wall-mount and pole-mount installation options support flexible deployment in outdoor FTTH networks.
Features:
. High-quality engineering plastics, UV/water resistant
. Adapter slot for easy installation
. Lockable cover for safety
. Enough space for cable storage and fiber routing
. Flip-up splice tray provides easy fiber management
. Wall and Pole Mounting offers flexible installation options
Technical parameter:
. Optical fiber radius of curvature:≥40mm
. Splice tray additional loss：≤0.01dB
. Temperature Range: – 40°C ~ + 60°C
. Compressive strength: ＞500N
Specification：
| Size (mm) | 300*240*98 |
| Weight(kg) | 1.55 |
| Cable inlet/outlet | 2/16 |
| Cable dia (mm) | Φ6~Φ18 |
| Max splice capacity | 24 cores (single) |
| Max splitting | 1：16 |
| Lead time | 7 days for 100pcs, 20 days for 300pcs |
| MOQ | 100 pcs |
