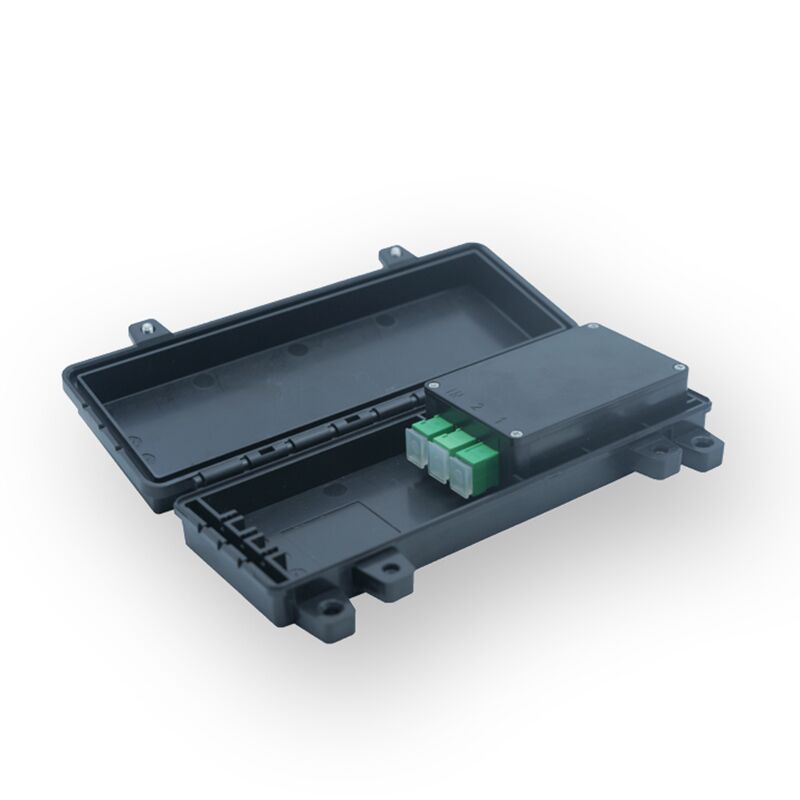

FTTH 1X2 PLC Fiber Splitter Distribution Box

$2.07

Wall Mount, 1 Cable inlet 2 outlet , Indoor Use

Model: FODB-102
Material: ABS or ABS+PC
Protection level IP54
Available to accommodate 1×2 mini splitter
Easy to maintain and install
Free sample is available

The 1X2 PLC fiber splitter distribution box is used to distribute and protect the optical fiber link in FTTH network, It can distribute the cable with a 1×2 splitter. The small end-user terminal box is applied for the indoor cable’s termination in residential & business building or villas, also suits multiple fiber connection method.

The compact plastic box has 1 cable access point and two outlet position, and already comes with 3 adapter, no splitter. It provides plug-and-play customer termination solution for in-building fiber deployments.

Features:

. High-quality impact resistant plastics

. Splitter can be easily installed after wall box installed

. Small size taking up minimal wall space

fiber optic splice enclosure, passive plc splitter, patch cord, fibre closure, pigtail,launch cabe,ftth terminal box, optical termination box, distribution panel, wall mount fiber junction box，sc/fc/st/lc/e2000 adapter, jumper

Technical parameter:

. Additional loss：≤0.01dB

. Temperature range: -20°C~+60°C

. Pressure resistance: ≥2000N / 10cm

. Impact resistance：≥20N.m

Specifications:

Size(mm)	8518732.5
Weight(kg)	0.145
Cable inlet/outlet	1/2
Cable diameter (mm)	Φ 3 or Drop cable(2*3mm)
Max splitting	1:2（1pc）
Logo	Customized
Lead time	7 days for 100pcs, 10 days for 800pcs
MOQ	100 pcs

Our Services

Fast Delivery

Delivery time is very important to the majority of customers, We try best to find an effective way to coordinate orders to arrive at your destination promptly.

Guaranty

All Fiber Termination Boxes/Enclosures have 2 years ( fiber optic component 1 year ) warranty. We will make a replacement if there are some Non-human damage during a period of warranty time.
