How to Choose a Fiber Splice Closure

Choosing the right fiber splice closure is essential for protecting optical fiber splices and maintaining reliable network connections. A suitable closure must provide adequate splice capacity, compatible cable entry ports, environmental protection, and sufficient space for fiber management.

Fiber splice closures are widely used in FTTH access networks, telecommunications infrastructure, aerial cable routes, underground installations, and other outside-plant applications.

However, closures with similar appearances may have different cable capacities, sealing structures, splice tray configurations, and installation requirements.

This guide explains how to choose a fiber splice closure by comparing dome and inline designs, evaluating technical specifications, and identifying the most important factors for different installation environments.

What Is a Fiber Splice Closure?

A fiber splice closure is a protective enclosure used to house and organize spliced optical fibers.

It provides mechanical protection, fiber routing space, and environmental sealing for cable splicing points.

Depending on the design, a closure may include:

• Splice trays

• Cable entry and exit ports

• Cable fixing components

• Fiber storage areas

• Sealing gaskets or other sealing components

• Mounting accessories

• Optional splitter accommodation

Fiber splice closures are commonly installed where optical cables need to be joined, branched, or extended.

The appropriate design depends on the cable configuration, fiber count, installation location, and maintenance requirements.

Dome vs. Inline Fiber Splice Closures

Fiber splice closures are commonly classified by their housing design into dome (vertical) and horizontal (inline) types.

Both designs are available in different fiber capacities and cable entry configurations. You can compare our fiber splice closures to find suitable options for your installation requirements.

Dome Fiber Splice Closures

Dome fiber splice closures, also called vertical fiber splice closures, typically have a cylindrical housing with a dome-shaped cover.

Cable entry ports are commonly arranged around the base of the closure.

Depending on the model, dome closures may support multiple cable entries, splice trays, and different mounting arrangements.

They are used in applications such as:

• FTTH distribution networks

• Aerial cable installations

• Underground cable routes

• Telecom access networks

• Cable branching and splicing points

A dome closure may be suitable when its cable entry arrangement, fiber capacity, and internal routing design match the installation requirements.

Inline Fiber Splice Closures

Inline fiber splice closures, also called horizontal fiber splice closures, generally have an elongated housing.

Cable entry and exit ports are commonly arranged along the ends or sides of the enclosure, depending on the model.

This design can be convenient for cable routes where fibers continue through the closure.

Typical applications include:

• Aerial cable routes

• Underground installations

• Duct networks

• FTTH distribution

• Backbone cable splicing

Inline closures may also support multiple splice trays and re-entry for maintenance.

However, the housing shape alone does not determine whether a closure is suitable for a particular installation environment.

Dome vs. Inline: Comparison

Feature	Dome Closure	Inline Closure
Housing design	Vertical or cylindrical	Horizontal or elongated
Typical cable arrangement	Ports commonly grouped near the base	Ports commonly arranged along the housing
Splice management	Internal splice trays	Internal splice trays
Fiber capacity	Model-dependent	Model-dependent
Installation	Aerial, duct, underground, and other approved locations	Aerial, duct, underground, and other approved locations
Re-entry	Depends on the sealing design	Depends on the sealing design
Main selection factors	Port layout, capacity, sealing, mounting	Cable routing, port layout, capacity, sealing

Both dome and inline closures can be used in different outdoor environments.

The appropriate choice depends on the specific product specifications rather than housing shape alone.

How to Choose the Right Fiber Splice Closure

Selecting a splice closure involves more than checking its maximum fiber capacity.

The following factors should be evaluated before ordering.

1. Fiber Capacity and Splice Tray Configuration

Fiber capacity is one of the first specifications to check.

A closure should accommodate the required number of splices while providing sufficient space for fiber routing and storage.

Important considerations include:

• Total number of fibers requiring splicing

• Maximum supported splice capacity

• Number of splice trays

• Capacity of each tray

• Available fiber storage space

• Expected future expansion

For example, a closure advertised with a maximum capacity of 144 fibers may support that capacity only when equipped with the required number of splice trays.

The actual number of trays supplied in the standard package may vary.

Therefore, maximum splice capacity should not be confused with the configuration included in the quotation.

Before ordering, confirm the number of installed trays, the maximum supported tray quantity, and any accessories required for expansion.

2. Cable Entry Ports and Cable Diameter

Cable entry configuration determines how optical cables enter and exit the enclosure.

Different closure designs may provide:

• Round cable entry ports

• Oval cable entry ports

• Multiple cable entry and exit arrangements

• Ports intended for different cable diameters

The number of ports should match the cable routing requirements.

However, the total number of ports is not the only consideration.

Each port must also be compatible with the cable diameter and the intended sealing components.

A closure with sufficient ports may still be unsuitable if its sealing system does not support the actual cable dimensions.

Before selecting a model, confirm:

• Number of incoming cables

• Number of outgoing cables

• Cable outer diameters

• Cable entry arrangement

• Available sealing accessories

• Requirements for future cable additions

For installations involving cable branching, the port arrangement should allow the required cable routing without excessive bending or congestion.

3. Installation Environment

Fiber splice closures may be installed in aerial, duct, underground, pedestal, or other outside-plant locations.

Each environment presents different requirements.

Aerial installations may expose closures to UV radiation, temperature changes, rain, wind, and mechanical loading.

Underground installations may involve moisture, dirt, temporary flooding, and other environmental conditions.

Direct-buried installations may require additional protection against soil pressure, mechanical stress, and prolonged environmental exposure.

Not every outdoor closure is suitable for every installation method.

The manufacturer’s approved installation conditions should be checked before selecting a model.

4. IP Rating and Environmental Protection

IP ratings describe protection against the ingress of solid objects and water under specified test conditions.

Outdoor fiber splice closures may have different IP ratings depending on their construction and intended application.

For example, IP65 and IP68 closures may be selected for different environments.

However, an IP68 rating alone does not establish suitability for every underground, direct-buried, or continuously submerged application.

The applicable immersion conditions should be confirmed from the manufacturer’s specifications.

Other important considerations include:

• Housing material

• Cable entry sealing

• UV resistance

• Temperature range

• Mechanical strength

• Resistance to the installation environment

The closure should be evaluated as a complete assembly, including its cable entry seals and installation accessories.

5. Fiber Splice Closure Sealing Methods

The sealing system helps prevent moisture and contaminants from entering the enclosure.

Fiber splice closures may use different methods for housing sealing and cable entry sealing.

Common sealing components include:

• Mechanical gaskets

• Clamps

• Compression seals

• Heat-shrinkable cable entry seals

• Other model-specific sealing structures

Some closures combine mechanical housing sealing with heat-shrinkable cable entry components.

Mechanical sealing can be convenient for designs requiring periodic re-entry, provided the sealing components remain suitable for reuse or are replaced as specified.

Heat-shrinkable sealing uses heat-activated components to seal compatible cable entry points.

The appropriate method depends on cable compatibility, environmental conditions, installation procedures, and expected maintenance frequency.

When comparing products, confirm which sealing components are supplied and whether additional materials are required.

6. Re-entry and Maintenance

Fiber splice closures may need to be opened during network expansion, cable repair, or maintenance.

A suitable closure should provide access to internal splice trays without unnecessary disturbance to other fibers.

Important features include:

• Accessible splice trays

• Organized fiber routing

• Adequate fiber storage

• Reliable cable fixation

• Clear tray identification

• Suitable re-entry procedures

Re-entry requirements vary by closure design.

Some sealing systems may require replacement components after opening.

Technicians should follow the manufacturer’s instructions when reopening and resealing a closure.

7. Included Accessories and Product Configuration

Closures with similar advertised specifications may be supplied with different accessories.

Before purchasing, verify whether the quoted configuration includes:

• Splice trays

• Splice protection sleeves

• Cable fixing components

• Sealing materials

• Mounting brackets

• Pole or aerial mounting accessories

• Optional splitter holders

• Other required installation components

Not all accessories are standard.

Confirming the supplied configuration helps avoid missing components during installation.

8. Modular Splice Trays and Expansion Options

Some dome and inline closures support modular or expandable fiber management configurations.

Depending on the design, additional splice trays or accessories may be installed to accommodate network expansion.

However, modular construction does not automatically mean unlimited capacity.

Expansion is restricted by the enclosure’s rated capacity, available internal space, and compatible components.

When future expansion is expected, confirm the maximum supported configuration and whether additional trays can be installed without replacing the enclosure.

Fiber Splice Closure Selection by Application

Different network environments may require different closure configurations.

Application	Main Selection Considerations
FTTH distribution	Cable branching, splice capacity, entry ports, maintenance access
Aerial installation	Mounting method, UV resistance, mechanical protection, sealing
Underground installation	Water protection, sealing integrity, installation conditions
Duct network	Cable routing, port arrangement, enclosure dimensions
Backbone network	Fiber capacity, splice management, cable compatibility
Industrial network	Temperature, mechanical, chemical, and environmental requirements

FTTH Access Networks

In FTTH access networks, splice closures protect cable splicing points between feeder, distribution, and other network cable segments.

Depending on the network design, they may also accommodate certain splitter configurations.

However, splice closures and fiber distribution boxes do not necessarily perform the same functions.

A splice closure primarily protects and organizes spliced fibers.

In comparison, fiber termination and distribution boxes may provide additional adapter-based termination, distribution, and subscriber connection functions.

The appropriate component depends on the network architecture and required connection arrangement.

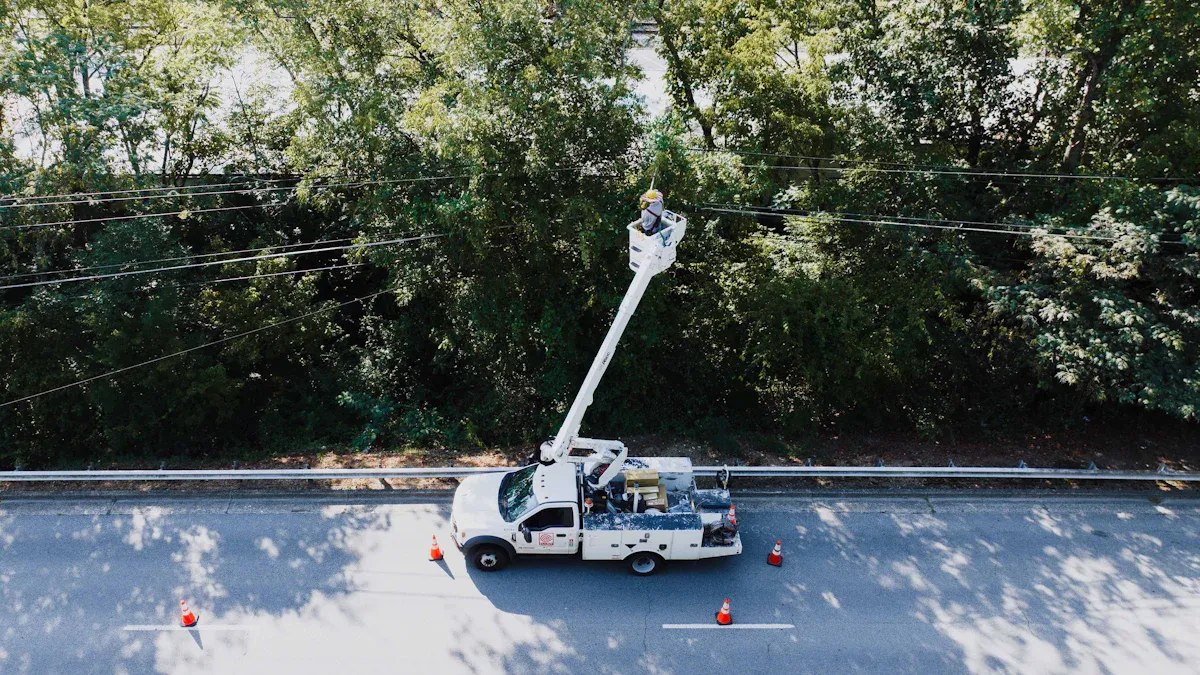

Aerial and Underground Networks

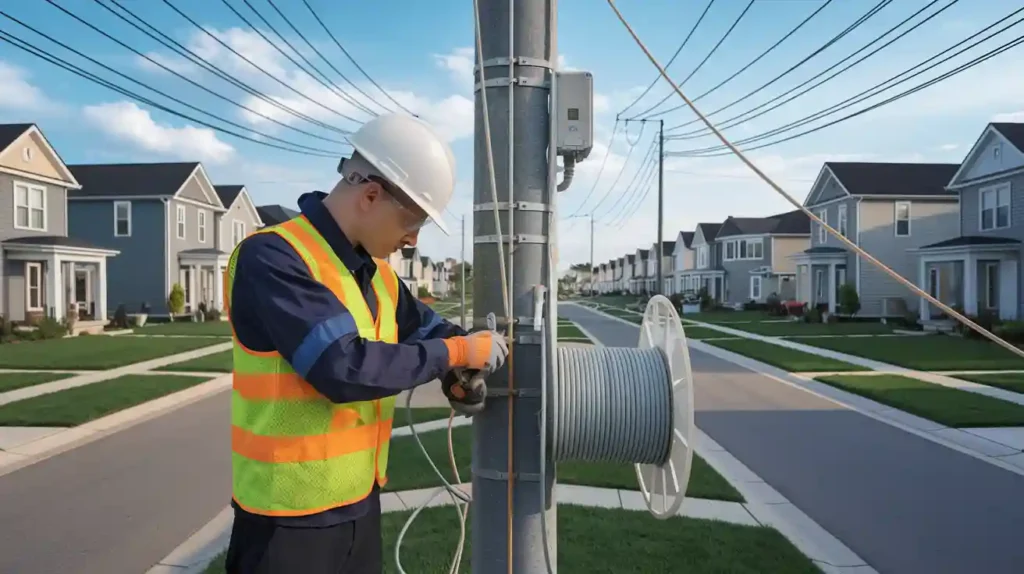

For aerial installations, verify the approved mounting arrangement and environmental resistance.

For underground installations, consider moisture exposure, sealing requirements, and the actual installation conditions.

A closure should not be selected solely because it is described as waterproof.

The complete product specification should support the intended application.

Common Mistakes When Choosing a Fiber Splice Closure

Several selection mistakes can lead to installation difficulties or unsuitable product configurations.

Choosing Only by Maximum Fiber Capacity

A high advertised capacity does not guarantee that the closure includes the required splice trays.

Always verify the supplied configuration.

Ignoring Cable Diameter Compatibility

Cable entry ports and sealing components must match the actual cable dimensions.

An incompatible cable diameter may prevent proper sealing.

Selecting Only by IP Rating

An IP rating is important, but it does not describe every environmental or mechanical requirement.

Installation location, material durability, and sealing details must also be considered.

Overlooking Re-entry Requirements

A closure that is difficult to reopen may be inconvenient for networks requiring frequent changes.

Consider the expected maintenance and expansion requirements.

Assuming All Accessories Are Included

Splice trays, mounting accessories, and sealing components may vary by product configuration.

Confirm the complete accessory list before ordering.

Fiber Splice Closure Selection Checklist

The following checklist can help engineers, contractors, and buyers compare closure specifications.

Item	What to Confirm
Closure design	Dome or inline
Fiber capacity	Required and maximum splice capacity
Splice trays	Number included and maximum supported
Cable ports	Quantity and entry arrangement
Cable diameter	Compatibility with each sealing port
Installation location	Aerial, duct, underground, or other approved application
Environmental protection	IP rating and relevant operating conditions
Housing material	Suitability for the intended environment
Sealing system	Housing and cable entry sealing methods
Re-entry	Maintenance and resealing requirements
Mounting	Required brackets and installation accessories
Expansion	Additional trays or compatible accessories
Supplied configuration	All included and optional components

Using this checklist can help prevent specification mismatches and simplify product comparisons.

Frequently Asked Questions

What Is the Difference Between Dome and Inline Fiber Splice Closures?

Dome closures generally have a vertical or cylindrical housing, while inline closures have a horizontal or elongated design.

Both can support different fiber capacities and outdoor installation methods.

The choice depends on cable entry arrangement, mounting requirements, sealing, and internal fiber management.

Is an IP68 Fiber Splice Closure Suitable for Underground Installation?

An IP68 rating indicates protection against immersion under specified conditions.

However, it does not automatically establish suitability for every underground or direct-buried installation.

The manufacturer’s approved installation conditions and complete product specifications should be checked.

How Many Fibers Can a Splice Closure Accommodate?

Fiber capacity depends on the closure model and splice tray configuration.

Before ordering, confirm both the maximum supported capacity and the number of trays supplied.

Can a Fiber Splice Closure Be Reopened?

Many closures are designed for re-entry.

However, the procedure and any required replacement sealing components depend on the product design.

Can Fiber Splice Closures Accommodate PLC Splitters?

Some models support compatible PLC splitter modules or dedicated splitter holders.

Splitter compatibility and available space should be verified for the specific closure.

What Should Be Confirmed Before Ordering a Fiber Splice Closure?

The most important details include fiber capacity, splice tray quantity, cable port configuration, cable diameter, installation environment, sealing method, mounting accessories, and expected expansion requirements.

Conclusion

Choosing the right fiber splice closure requires evaluating more than its housing shape or maximum fiber capacity.

Dome and inline closures can both provide reliable protection for optical fiber splices when properly selected and installed.

The most important factors include cable entry compatibility, splice tray configuration, environmental protection, sealing design, installation location, and maintenance requirements.

Before purchasing, confirm the actual product configuration and the manufacturer’s specified installation conditions.

A properly selected fiber splice closure helps protect fiber splices, organize cable connections, and support reliable network maintenance and future expansion.
