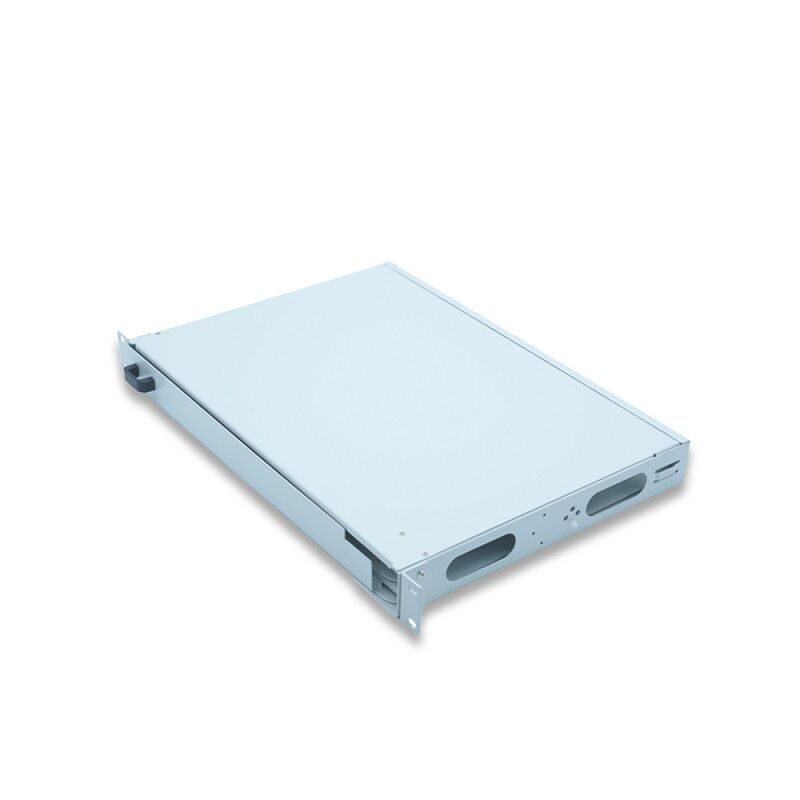

Swing Out 24 Port Rack Mount Fiber Patch Panel, 24 Splices

The rack mount fiber patch panel is similar to ODF in function, which provides an optical interconnect between the Ethernet switch or OSP cable and the building cabling system. It is designed to realize the connection between optical cable and pigtail and provides protection as well. This 1U rack unit owns a rotate style, reasonable layout, and adequate room convenient for installation and maintenance, it is applicable in the branch connection of fiber optic cable terminal and usually mounted on 19″ or 23″ rack of the server cabinet.

This 19” rack mount patch panel is a high-density fiber distribution unit, which can configure SC, LC, FC, ST adapter on the front and support 24 cores termination. It holds splice trays and cable routing spool for splicing and storage; the optical cable enters from the rear of the fiber terminal box, jumper comes out from the right side by connecting adapter panel, and it can be pre-loaded 24 strand fiber pigtail inside for quick termination.

Features:

. The body is made of high quality cold-rolled steel, and electrostatic spraying in the surface
. Configure with cable fixed device, splice tray and thread ring
. Overlying splice tray is convenient for future capacity expansion
. Independent insulation grounding device provides the safety
. Internal splice tray is made of high strength engineering plastics

Technical index:

optical fiber winding radius: ≥40mm

extra loss of fiber tray: none

fiber length left in tray:≥1.6m

working temperature: – 40⁰C ~ + 60⁰C

lateral pressure-resistance: 500N

shock-resistance：750N

Specification:

Size(mm)	482*310*445 (1U)
Suitable adapters	SC, ST, FC, LC
Cable inlet/outlet	1/24
Connector capacity	24
Max fiber splice capacity	24 (single core)
Weight (kg)	4.8
Lead Time	7 days for 100pcs, 20 days for 300pcs
MOQ	50 pcs
