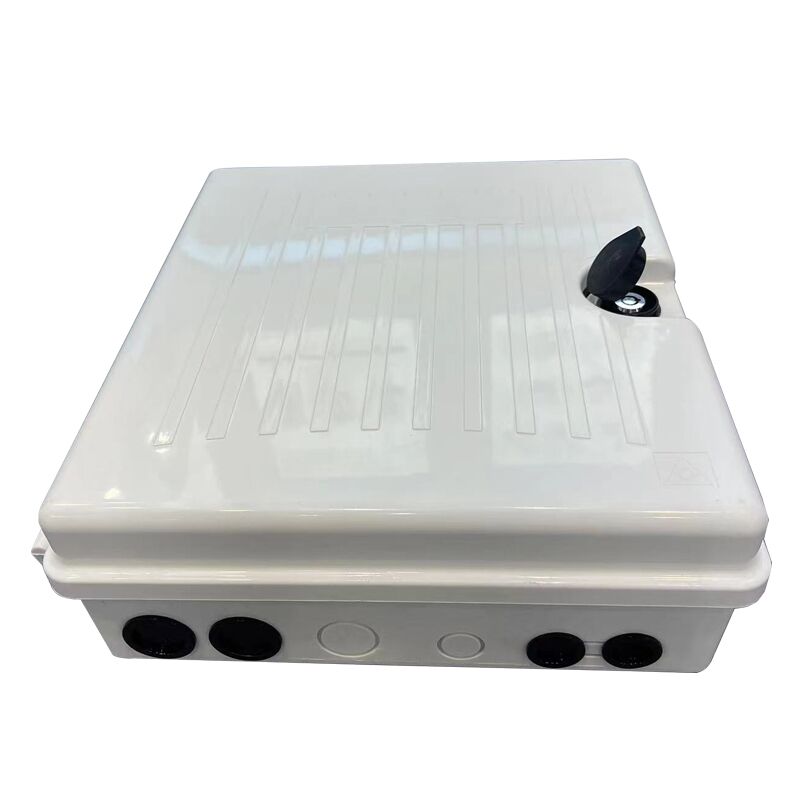

This spacious outdoor fiber splitter distribution box is designed for the distribution connection cable and fiber optic communication devices in the FTTH project. It is used for the protective connection of cable and fiber optic pigtails, and termination of the Ftth access network, and the box is applicable for wall-mounted or pole-mounted outside the building.
The 4 port outdoor fiber distribution box (FDB) can be loaded with 1:8, 1;16, or 1:32 cassette type plc splitter based on your requirement of applications. It is made of high-grade plastic material with waterproof and dustproof, providing good strength and performance. The dual layer design makes the splicing and wiring easy to manage. Welding with complete separation of fiber points is more reasonable and convenient. The cable entry with knock-out hole design is for protecting inner optical link while no use.
The 2 in 2 out fiber splitter distribution box is great for splicing, termination, splitting between feeder cable and distribution cables, and widely applies in FTTH/FTTB access networks, telecommunication networks, CATV networks, local area networks.
Features:
1. High-quality synthetic plastic material, with aging resistant and UV-resistant;
2. Waterproof lock, which can be used in indoor and outdoor environments
3. Temporary pigtails storage area
4. Dual-layer structure, bottom for splicing and upper layer for splitting and distribution;
5. Turn-over middle panel, suitable for storage of butterfly cables, special lock device
for cables
6. configured with 4 cassette-type splitters slots
7. Maximum 2 splice trays( could be expandable) for satisfying different connection demand
Specification:
| Size(mm) | 340*350*120 |
| Weight(kg) | 3.48 |
| Cable inlet/outlet | 2/2 |
| Cable diameter (mm) | ≤ Φ16 |
| Max splice capacity | 24 single cores |
| Adapter No | None |
| Max splitting | splitting1:8(4pcs), 1:16(2pcs) 1:32(1pc) |
| MOQ | 100 pcs |
