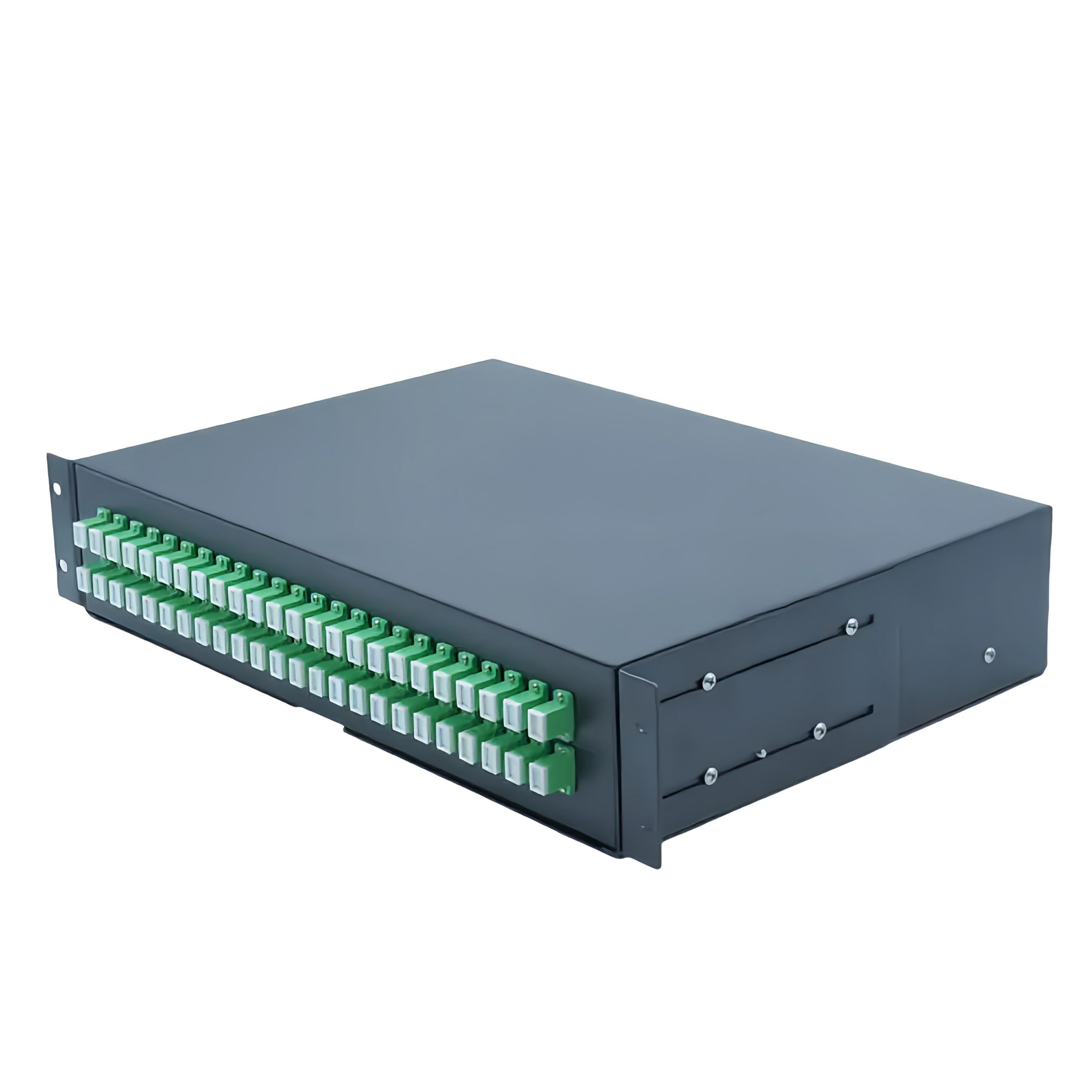

The 2U fiber optic patch panel is a metal fiber enclosure designed to realize the connection between external optical fiber cables and pigtails, which is used for fiber splicing and patching. It is drawer style, can be easily pulled out; It designed with reasonable layout, adequate room is convenient for easy installation and maintenance, also there is splice tray and routing spool inside the 2U terminal box for convenient fiber operation, and often mounted into server cabinet.
This drawer type 2U fiber patch panel is for high density cabling and used in the branch connection of optical terminal for rack mount application. It can configure SC, LC, FC, ST adapter on the front for your different network system; there are four cable entry positions on the back of the 2U fiber terminal box fitted with rubber grommets to protect the fiber optic cable from damage; the cable enters from the rear of the unit, jumpers goes out by connecting the adapter panel.
Features:
. The body is made of high quality cold-rolled steel, and electrostatic spraying in the surface
. Configure with cable fixed device, splice tray and thread ring
. Stacked splice tray is convenient for future capacity expansion
. Independent insulation grounding device provides the safety
. Internal splice tray is made of high strength engineering plastics
Specification:
| Size(mm) | 482*300*90(2U) |
| Suitable adapters | SC, ST, FC, LC |
| Cable inlet/outlet | 4/48 |
| Connector capacity | 48 or 96 |
| Max fiber splice capacity | 48 (single core) 96（double core） |
| Weight (kg) | 5.1 |
| Lead Time | 7 days for 100pcs, 20 days for 300pcs |
| MOQ | 50pcs |
