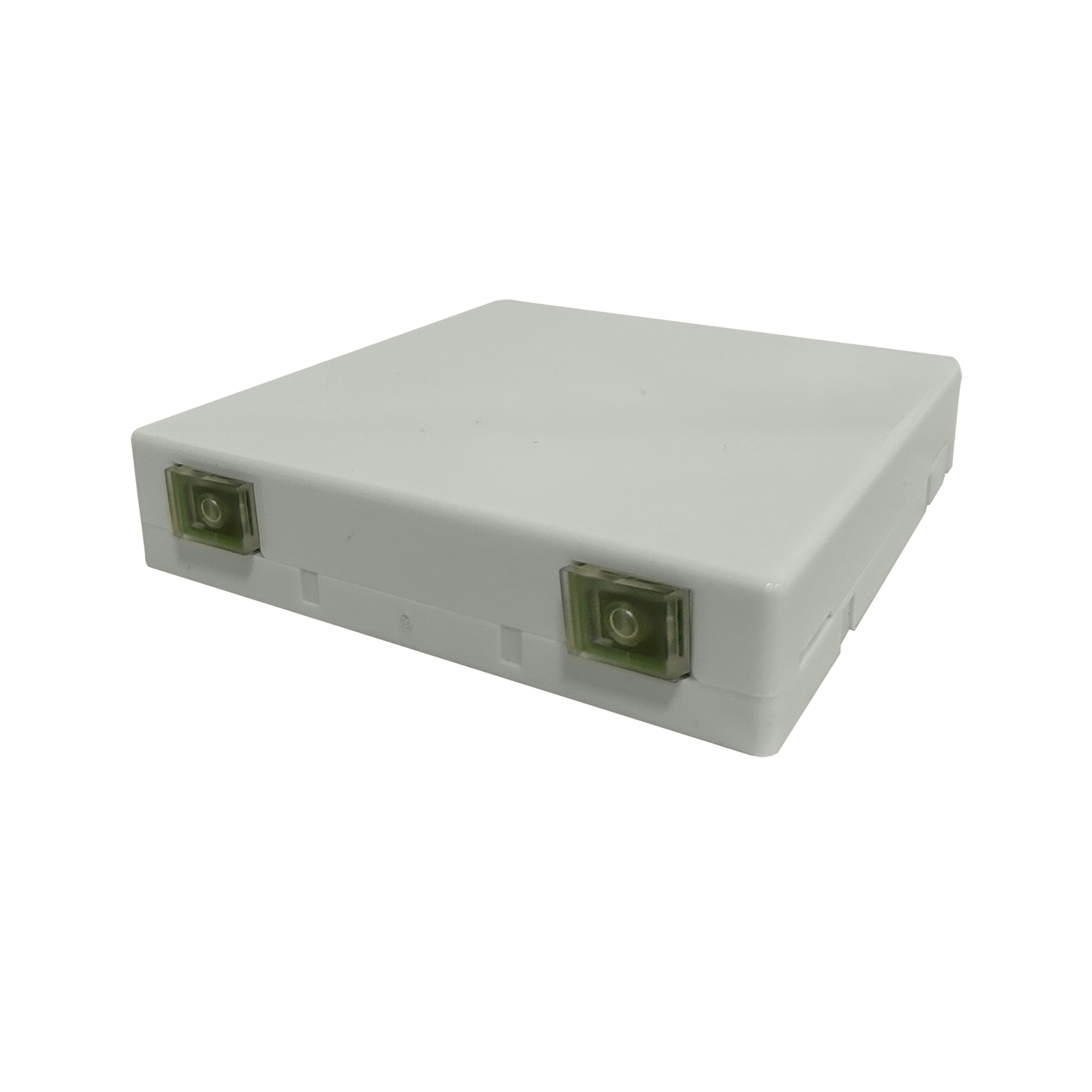

The fiber optic cable wall plate is designed for protecting the splicing of indoor cable or drop cable and pigtail, it can serve as FTTH home network’s termination point. It is a box with optical socket to which the operator connects the users’ jumper, and suits optical fiber in indoor wall mounted environment. It is small and light and used to connect drop cable with ONT that brings fiber to the desk or living unit in FTTH, FTTO,FTTD. The wall plate support splicing, termination and storage functions for optical fiber, normally can be mounted in the wall or home standard electrical junction box.

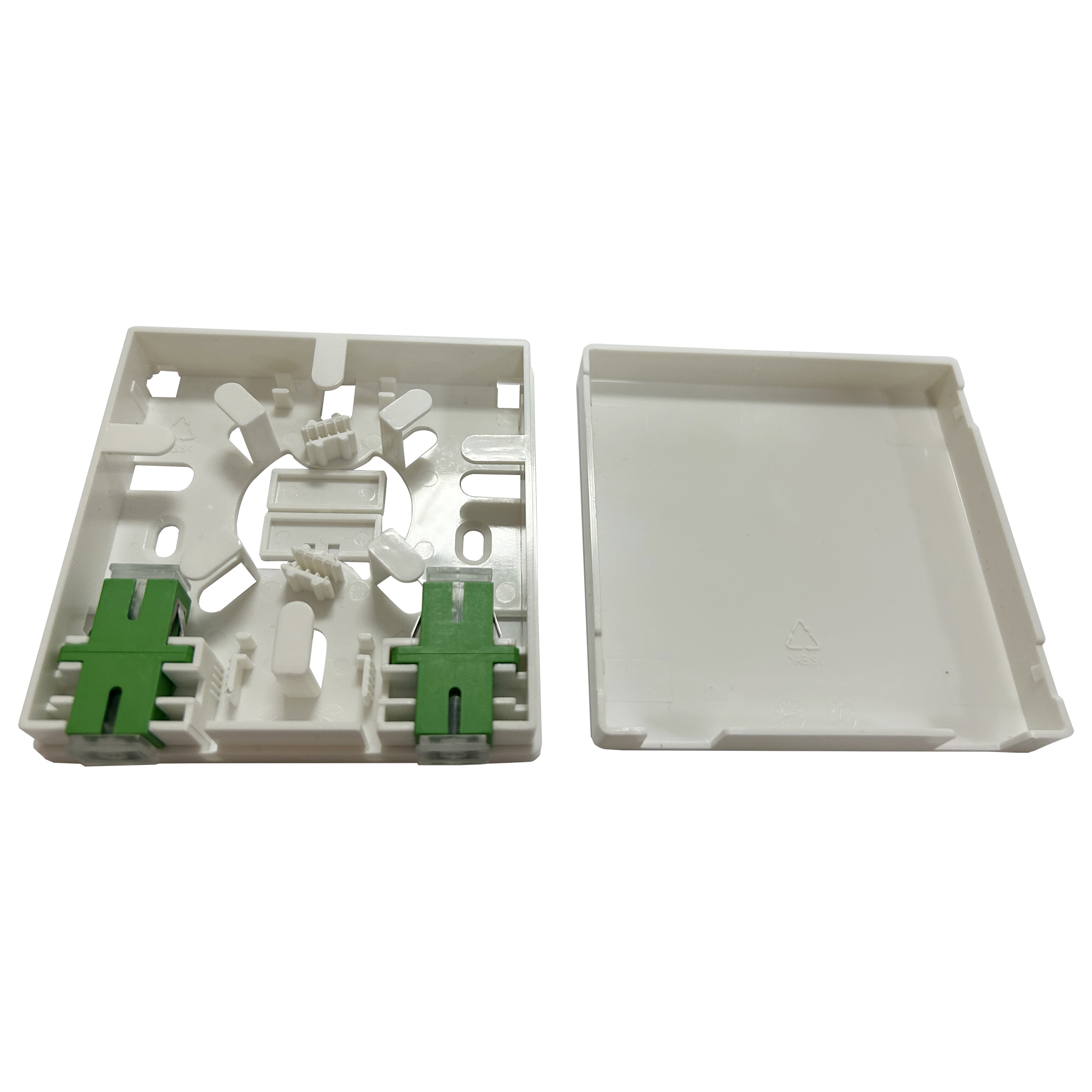

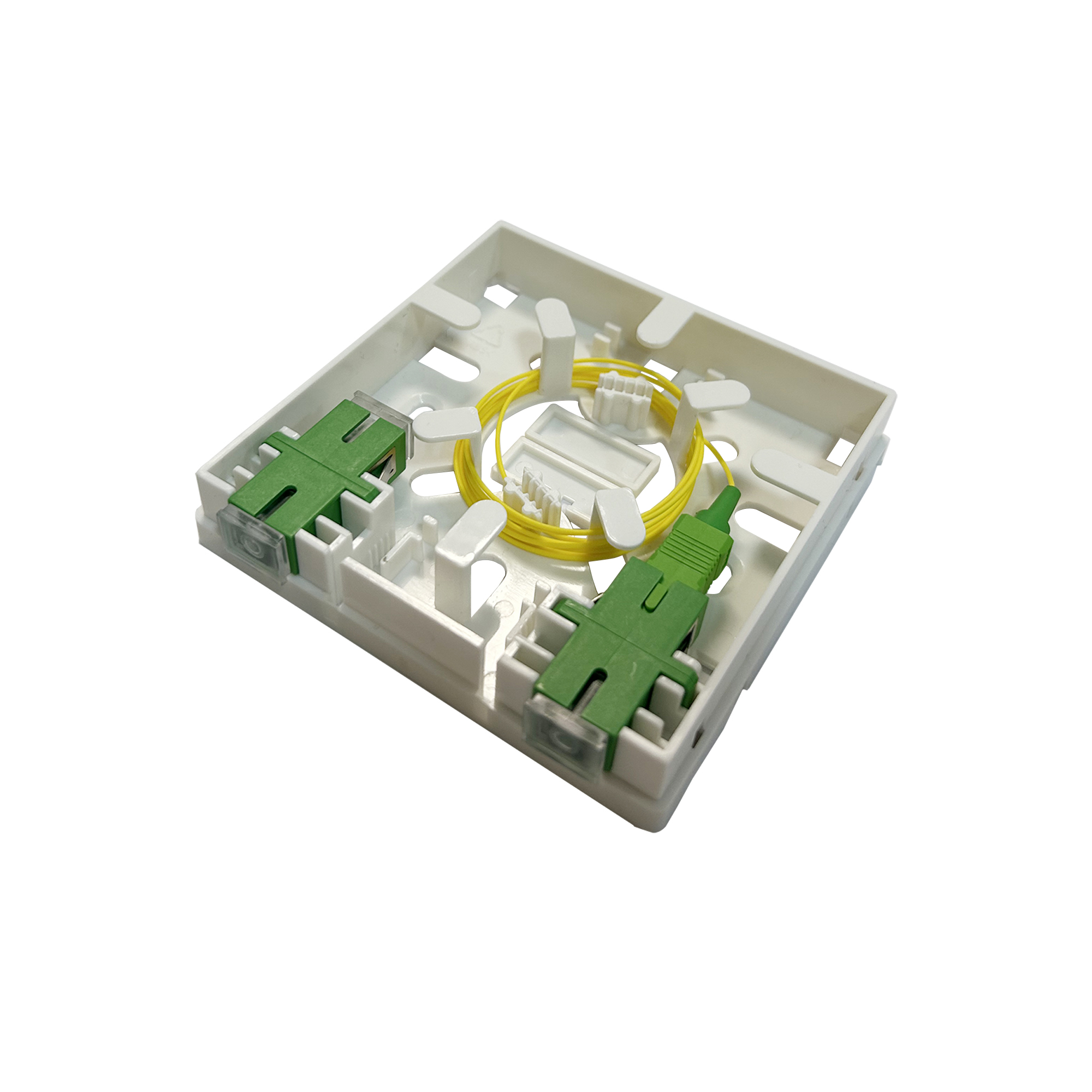

This optical termination box is provided with 2 SC simplex or LC duplex adapters ports, supporting up to 4 cores splice. It is of ABS plastic providing protection for splices and terminations, internal routing allows for the slack management and reasonable fiber radius, 9 access port at front, bottom and sides for flexible home internet installation.
. Made of ABS plastics or flame retardant
. Small size taking up minimal wall space
. 2 external adapter interface for easy installation
. Removable cover is convenient for maintenance
. Equipped with dust plug, dustproof
. Supports factory terminated assemblies
. Internal fiber guides for reasonable bend radius
|Cable Dia (mm)
|Φ3mm or 2*3mm
|Max splice capacity
|7 days for 100pcs, 10 days for 800pcs
